What are key technical concepts associated with SiPMs, such as PDE, dark count rate, and crosstalk?

Photon Detection Efficiency (PDE) is the probability that an incident photon generates a detectable avalanche and depends on wavelength, overvoltage, and fill factor. Dark count rate (DCR) is the rate of thermally or defect-generated avalanches in the absence of light, typically specified in cps or kcps/mm², and limits the minimum detectable signal. Optical crosstalk and afterpulsing are correlated noise mechanisms where an avalanche in one microcell triggers additional avalanches, affecting energy resolution and timing performance.

What are the main SiPM variants and array configurations available?

Vendors offer single-channel SiPM dies or packaged devices and tiled arrays (1D or 2D matrices) to cover larger active areas. Variants differ by microcell size (e.g., 10–100 µm), total active area, spectral optimization (blue-sensitive vs NIR-enhanced), and packaging (surface-mount, ceramic, through-silicon via, or hermetic packages). Some arrays integrate features such as individual channel readout, summed outputs, or on-board temperature sensors for gain stabilization.

Which key specifications should I focus on when selecting a Silicon Photomultiplier for my application?

Critical parameters include active area, microcell size and density, PDE at your operating wavelength, gain, and breakdown voltage with its temperature coefficient. You should also review dark count rate, correlated noise (crosstalk and afterpulsing), recovery time, timing resolution (jitter), dynamic range (maximum number of resolvable photoelectrons), and packaging/footprint compatibility with your electronics and optics.

How do I compare SiPMs for low-light, fast-timing, or high-dynamic-range applications?

For low-light photon counting, prioritize high PDE at the target wavelength and low dark count rate, while accepting smaller active areas if necessary. For fast-timing applications such as TOF-PET or LiDAR, look for short rise times, low timing jitter, and fast recovery, often associated with smaller microcells and optimized quenching resistors. High dynamic range applications benefit from devices with many microcells per unit area, short recovery times, and linearity curves that match your expected photon flux and pulse width.

What practical factors influence lead time, customization, and pricing for SiPMs?

Standard catalog SiPMs and small arrays are often available from stock or with lead times of a few weeks, while custom arrays, special packaging, or bin-sorted parameters (e.g., tight breakdown voltage or DCR bins) typically require longer lead times. Pricing is driven by active area, array complexity, packaging type, binning requirements, and order volume; custom optical windows, integrated electronics, or radiation-tolerant designs also add cost and manufacturing time.

Filter Products

Light Analysis
Detectors
Silicon Photomultiplier

Silicon Photomultiplier Detectors for Precise Light Analysis

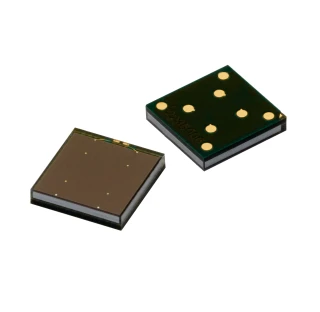

EQ Photonics GmbH - Si-Photomultiplier - AFBR-S4N66P014M

Request Quote

Sold by: EQ Photonics Ships from: Germany

Specifications
Photo Detection Efficiency:	5 – 63 %
Recovery Time:	55 ns
Active Area:	66 mmxmm

Did You Know?

Did you know that a silicon photomultiplier (SiPM) is essentially a dense 2D array of Geiger-mode APD microcells, often exceeding 10,000 cells per mm², each biased above breakdown so that a single photon can trigger a full avalanche with gains on the order of 10^6? Unlike traditional PMTs, the output of a SiPM is the summed response of many binary microcells, so its linear dynamic range is fundamentally limited by the finite number of cells and saturates when a significant fraction (e.g., >20–30%) fire within the recovery time. Timing resolutions below 100 ps FWHM are routinely achievable due to the fast avalanche buildup, but dark count rates can reach hundreds of kHz to several MHz per mm² at room temperature, making temperature control and thresholding critical in low-light applications. A common misconception is that SiPMs are "drop-in" replacements for PMTs; in practice, their high capacitance and discrete-cell statistics require different front-end electronics and calibration models, especially for photon-counting and energy-resolving systems.

Related Resources

Frequently Asked Questions

A Silicon Photomultiplier (SiPM) is a solid-state single-photon–sensitive detector composed of an array of Geiger-mode avalanche photodiodes (microcells) connected in parallel on a common silicon substrate. Each microcell is biased above its breakdown voltage and produces a digital pulse when it detects a photon; the summed output current from all fired cells is proportional to the number of incident photons in the pulse, enabling photon-counting and low-light level detection.

What is a Silicon Photomultiplier?

A Silicon Photomultiplier (SiPM) is a solid-state single-photon sensitive detector composed of a dense array of Geiger-mode avalanche photodiodes (microcells) connected in parallel on a common silicon substrate. When photons strike the device, individual microcells fire and the summed output provides an analog signal proportional to the incident photon flux. Silicon Photomultiplier technology offers high gain, excellent timing resolution, and compatibility with compact, low-voltage electronics.

Typical Specifications of a Silicon Photomultiplier

On FindLight, each Silicon Photomultiplier listing provides key parameters so you can evaluate suitability for your light detection task, including:

Active area: Commonly from 1×1 mm² to 6×6 mm² or larger, affecting collection efficiency and coupling to fibers or scintillators.
Photon Detection Efficiency (PDE): Often 15–60% depending on wavelength, over a spectral range typically 320–900 nm.
Gain: On the order of 10⁵–10⁶, determined by overvoltage above breakdown.
Dark count rate: Expressed in kHz–MHz/mm² at a specified temperature and threshold.
Timing performance: Rise time in the sub-nanosecond range and timing jitter down to tens of picoseconds for fast time-of-flight measurements.
Operating voltage: Low bias, typically 20–70 V, with specified breakdown voltage tolerance.
Cross-talk and afterpulsing: Given as percentages, critical for low-light and single-photon experiments.

Applications of Silicon Photomultiplier Detectors

A Silicon Photomultiplier is widely used in time-of-flight PET, high-energy physics calorimetry, LIDAR, fluorescence lifetime measurements, Cherenkov detectors, and low-light analytical instruments. The compact form factor, low supply voltage, and insensitivity to magnetic fields make a Silicon Photomultiplier a practical replacement for vacuum photomultiplier tubes in many systems.

Buyer Guidance on FindLight

When selecting a Silicon Photomultiplier on FindLight, compare PDE versus wavelength to match your emitter, laser, or scintillator spectrum, and check the active area and packaging for optical and mechanical integration. Evaluate dark count rate and cross-talk if you operate near the single-photon regime, and review timing jitter and recovery time for pulsed or time-correlated measurements. For each Silicon Photomultiplier product you can review detailed datasheets, request quotes directly from manufacturers, and contact suppliers for custom configurations. No registration is required to send inquiries, enabling fast evaluation and procurement of Silicon Photomultiplier detectors for your light detection and analysis projects.
