Description
Silicon photomultipliers (SiPM) are semiconductor components for the highly sensitive detection of light. SiPMs consist of an (not individually addressable) array of miniaturized single photon avalanche diodes (SPAD). Even individual photons can be detected – as known from photomultiplier tubes. The size, operating conditions and costs largely correspond to simple photodiodes.
Broadcom Si photomultipliers enable the construction of inexpensive and compact devices. The smallest amounts of light can be measured using simple readout electronics, since there is already an intrinsic amplification of 10e6. With an operating voltage of approx. 30…50 V, a cost-effective and simple system design is possible even in potentially explosive areas.
For radiation detection technology, we recommend the components of the NUV-MT series, which are optimized for the blue and visible spectral range. The NIR series is characterized by a high photon detection efficiency (PDE) in the red and near infrared and therefore it is ideally suited for lidar applications.

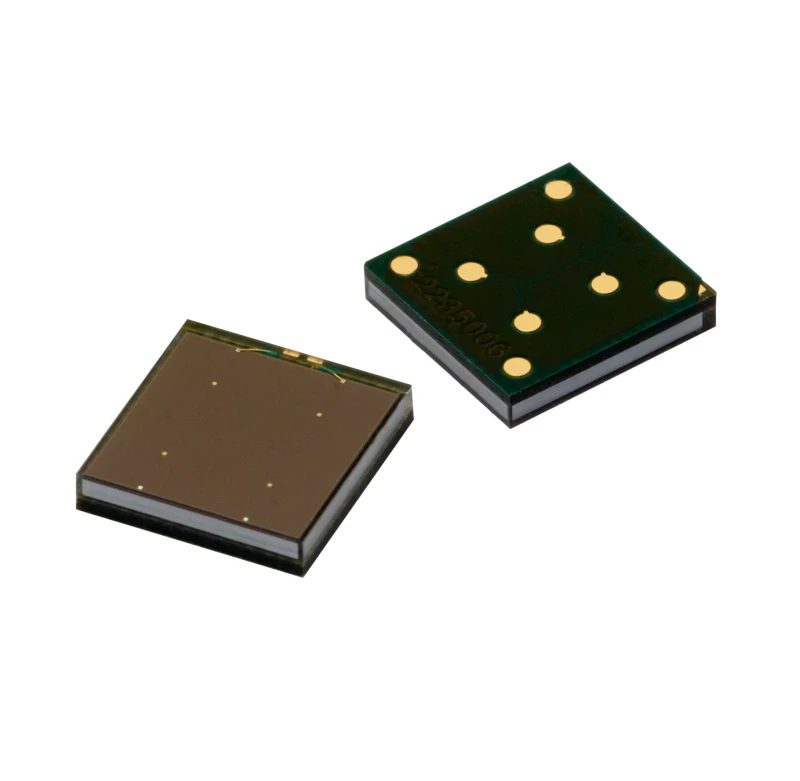

EQ Photonics GmbH - Si-Photomultiplier - AFBR-S4N66P014M
Specifications |
|
|---|---|
| Photo Detection Efficiency: | 5 – 63 % |
| Recovery Time: | 55 ns |
| Active Area: | 66 mmxmm |
Features
- Peak-PDE>60% (29% at 905nm)
- High uniformity
- High dynamic range >6000 Micro cells/mm (NIR)
- Fast recovery time ~15 ns (NIR)
- Best-in-class SNR
- Single detector and Array versions
- Automotive qualification
Applications
- Dosimeter
- Spectroscopy
- Matrial inspection
- Level measurement
- High-energy-physics
- PET
- SPECT
- Oil-logging MWD / LWD
- Isotope determination
- Food analysis
