Avalanche Photodiodes (APD) for Precision Detection

Did You Know?

Avalanche photodiodes (APDs) do not reach their advertised gain (often 10^2–10^3) at a single fixed bias; their excess noise factor F(M) typically increases with multiplication M according to F(M) ≈ k·M + (2 − 1/M)(1 − k), where k is the ionization coefficient ratio. This means that operating an APD closer to breakdown to maximize gain often degrades SNR, especially at shorter wavelengths where electron-initiated avalanches dominate. A common misconception is that APDs are always superior to PIN photodiodes at low light levels, but beyond a certain gain the avalanche excess noise and dark current can negate the theoretical sensitivity advantage, making low-noise transimpedance amplification of a PIN device competitive. Carefully selecting the operating bias just below breakdown, and matching it to temperature, is usually more important than maximizing gain on the datasheet.
Read more in our Blog

Related Resources

Frequently Asked Questions

An Avalanche Photodiode (APD) is a semiconductor photodetector that operates under high reverse bias to achieve internal gain through impact ionization (avalanche multiplication). Unlike a PIN photodiode, which has unity gain, an APD amplifies the photocurrent internally, providing much higher sensitivity at the cost of increased noise, higher operating voltages, and tighter bias and temperature control requirements.

Overview of Avalanche Photodiodes (APD)

Avalanche Photodiodes (APD) are high-sensitivity semiconductor detectors that operate with internal gain through avalanche multiplication. Under reverse bias above breakdown, absorbed photons generate carriers that are multiplied, yielding higher responsivity than standard PIN photodiodes. Avalanche Photodiodes (APD) are widely used when detecting low optical power levels, fast optical pulses, or when compact gain is required without external amplification.

Key Specifications and Performance Parameters

When evaluating Avalanche Photodiodes (APD), engineers typically compare several core parameters:

  • Spectral response: Wavelength range and peak responsivity, commonly from visible to near-infrared (e.g., 400–1100 nm for Si APDs, 900–1700 nm for InGaAs APDs).
  • Gain (M): Typical multiplication factors from 10 to 100 or higher, adjustable via bias voltage.
  • Responsivity: A/W at specified wavelength and gain, indicating conversion efficiency from optical to electrical signal.
  • Dark current: Reverse bias current without illumination, which contributes to noise and limits minimum detectable power.
  • Excess noise factor: Noise originating from avalanche multiplication, important for SNR calculations.
  • Breakdown voltage and bias range: Operating window for stable avalanche gain and compatibility with driver electronics.
  • Bandwidth / rise time: Frequency response or temporal response, critical for high-speed communication and timing applications.
  • Active area: Detector diameter or area affecting coupling efficiency, alignment tolerance, and capacitance.

Typical Use Cases for Avalanche Photodiodes (APD)

Avalanche Photodiodes (APD) are used in optical time-domain reflectometry (OTDR), LIDAR and range-finding, free-space and fiber-optic communication receivers, time-correlated single-photon counting (TCSPC), fluorescence and Raman measurements, and low-light level detection in scientific instrumentation.

Buyer Guidance on FindLight

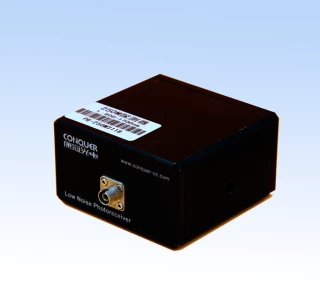

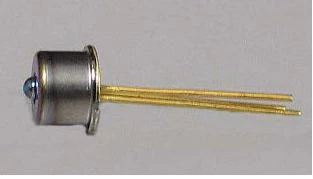

On FindLight you can review several Avalanche Photodiodes (APD) from different suppliers side by side. Compare wavelength range, gain, noise characteristics, active area, and package type (TO-can, SMD, fiber-coupled, or integrated modules). Check whether you need standalone APD dies or modules that include quenching, temperature control, or preamplifiers. For each Avalanche Photodiodes (APD) product, examine datasheets for detailed curves (gain vs. voltage, responsivity vs. wavelength, noise vs. temperature) and verify compatibility with your biasing and readout circuitry. You can request quotes and technical information directly from vendors without registration, simplifying procurement for prototypes and production runs.
