80um InGaAs APD Preamplifier Module
Description
Introducing the CR80AH-1550-200M, a cutting-edge solution for high-speed, ultra-low light detection in various applications such as laser range finding, LIDAR, and free space communication. This advanced device combines a 500μm InGaAs Avalanche Photodiode (APD) with a hybrid preamplifier to deliver exceptional performance and reliability.
The CR80AH-1550-200M features a built-in 80μm InGaAs APD+TIA (Transimpedance Amplifier) that enhances sensitivity and ensures accurate detection even in extremely low light conditions. With a high sensitivity rating of ≥100kV/W, this photodiode enables reliable detection of weak optical signals, making it ideal for applications where precise measurements are crucial.
Designed for high-speed data acquisition, the CR80AH-1550-200M offers an impressive bandwidth of 200MHz. This feature allows for rapid signal processing and real-time response, making it suitable for demanding tasks that require fast and accurate data analysis.
Covering a wide wavelength range of 900 to 1700nm, this device provides flexibility in applications that require detection across different optical frequencies. Whether you're working with near-infrared or short-wavelength infrared light, the CR80AH-1550-200M ensures reliable performance across the specified range.
Engineered with low noise characteristics and high reliability, this photodiode ensures accurate and consistent measurements, even in challenging environments. The device's noise reduction capabilities enhance signal quality, while its robust construction guarantees long-lasting performance in demanding applications.

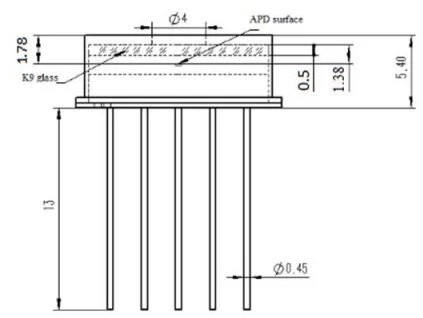

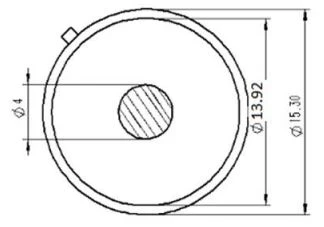

The CR80AH-1550-200M is packaged in a TO8 (Transistor Outline 8) package with a flat window, providing convenient and reliable integration into various systems. The TO8 package design ensures easy installation and protection of the sensitive components, allowing for seamless integration into your existing setup.
80um InGaAs APD Preamplifier Module
Specifications |
|
|---|---|
| APD Type: | InGaAs |
| Operational Wavelength (Typical): | 1550 nm |
| Operational Wavelength Range: | 900-1700nm |
| Operating Temperature: | -40 to +85 degC |
| Storage Temperature: | -55 to +100 degC |
| Maximum Optical Input Power: | 100 mW |
| Power Dissipation: | 250 mW |
| Active Diameter: | 80 um |
| Reverse Breakdown Voltage: | 30 - 70 V |
Features
- Built in 80um InGaAs APD+TIA
- High sensitivity：≥100kV/W
- High bandwidth：200Mhz
- Wavelength range:900~1700nm
- Low noise and high reliability
- TO8 package with flat window
Applications
- LIDAR: The CR80AH-1550-200M's high sensitivity and low noise make it an excellent choice for Light Detection and Ranging (LIDAR) applications, enabling accurate distance and position measurements
- Laser Range Finding: With its high-speed capabilities and wide wavelength range, this photodiode is well-suited for laser range finding systems, facilitating precise distance calculations
- Free Space Optical Communication (FSO): The CR80AH-1550-200M enables efficient and reliable transmission of optical signals through free space, making it suitable for applications in optical communication systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The CR80AH-1550-200M has a high sensitivity rating of ≥100kV/W. This ensures that even weak optical signals can be accurately detected, making it suitable for applications that require ultra-low light detection.
The CR80AH-1550-200M is packaged in a TO8 (Transistor Outline 8) package. This package type is commonly used for optoelectronic devices and offers a convenient and reliable means of integration into different systems. The package also features a flat window for enhanced protection and easy installation.
The CR80AH-1550-200M is well-suited for various applications, including LIDAR (Light Detection and Ranging), laser range finding, and free space optical communication (FSO). Its high sensitivity, high bandwidth, low noise, and reliability make it an excellent choice for tasks that involve precise measurements, rapid data acquisition, and optical signal transmission.
The CR80AH-1550-200M is used for high-speed, ultra-low light detection in applications such as laser range finding, LIDAR, and free space communication.
The CR80AH-1550-200M has a high sensitivity rating of ≥100kV/W, enabling reliable detection of weak optical signals.
The CR80AH-1550-200M has an impressive bandwidth of 200MHz, allowing for rapid signal processing and real-time response.
The CR80AH-1550-200M covers a wide wavelength range of 900 to 1700nm, providing flexibility in applications that require detection across different optical frequencies.
The CR80AH-1550-200M is packaged in a TO8 (Transistor Outline 8) package with a flat window, allowing for easy installation and protection of the sensitive components.
