Photodetector Module PDM03-9107-TTL
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The PDM TTL series photodetector modules are a versatile and innovative solution designed for precision photon counting applications. These modules are available in both cylindrical and rectangular formats, providing flexibility in integration and application. With a choice of 25mm and 30mm diameter photomultiplier tubes (PMTs), these modules cater to a wide range of requirements. The high voltage and discriminator threshold levels are pre-set for optimal performance, ensuring efficient operation by simply connecting to a +5V power supply.
One of the standout features of the PDM TTL series is its wide dynamic range, capable of handling up to 100 million counts per second (Mcps). This is achieved through a sophisticated dead time correction mechanism that compensates for non-linearity at high count rates due to pulse pile-up. The correction formula, N = n/(1-nT), allows for deviation from linearity to remain within ±5% at 100Mcps, ensuring accurate and reliable measurements.
These photodetector modules are not only high-performing but also user-friendly, with the capability to attach a light fiber guide for enhanced functionality. Additionally, they are equipped with magnetic and electrostatic shielding to protect against environmental interference. For those seeking cost-effective options, the rectangular types offer a lower-cost alternative without compromising on quality or performance.

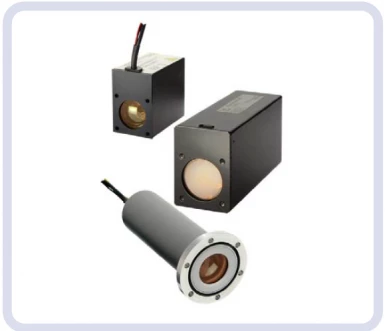

Photodetector Module PDM03-9107-TTL
Specifications |
|
|---|---|
| PMT Type: | PMT (photomutiplier tube) |
| Wavelength Of Max Response: | 550 nm |
| Wavelength Range: | 280 – 630 nm |
| Rise Time: | 1.2 ns |
| Dynamic Range: | up to 100Mcps |
| Spectral Range: | 280-630 nm |
| Spectral Range: | 280-850 nm |
| Dark Counts: | 100 cps |
| Signal Count Rate Without Dead Time Correction: | 30M cps |
| Signal Count Rate With Dead Time Correction: | 100M cps |
| Supply Current (@ 5V, No Signal): | 40 mA |
| Supply Current (@ 5V, Signal = 100Mcps): | 120 mA |
| Warm-Up Time: | 5.5 s |
| Operating Temperature: | 1 to 55 °C |
| Storage Temperature: | -40 to 60 °C |
Features
- Versatile Formats: Available in both cylindrical and rectangular formats, with options for 25mm and 30mm diameter photomultiplier tubes (PMTs).
- Optimized Performance: Pre-set high voltage and discriminator threshold levels for seamless photon counting with a +5V supply.
- Extended Dynamic Range: Achieve up to 100Mcps with dead time correction for linearity at high count rates.
- Photon Counting Capability: Designed for easy photon counting operation with minimal setup.
- Light Fibre Guide Compatibility: Equipped to attach a light fibre guide (not supplied) for enhanced functionality.
- Magnetic and Electrostatic Shielding: Protects the module from interference, ensuring accurate measurements.
- Cost-effective Options: Lower cost rectangular types available for budget-conscious applications.
Applications
- Photon Counting Systems: Ideal for applications requiring precise single-photon detection with TTL output.
- Medical Diagnostics: Supports sensitive optical measurements in instruments like scintillation counters.
- Industrial Inspection: Enables high-speed optical monitoring and quality control tasks.
- Scientific Instrumentation: Suitable for laboratory setups involving fluorescence, luminescence, or spectroscopy.
- Environmental Monitoring: Useful in low-light detection for atmospheric or aquatic studies.
Frequently Asked Questions
The Photodetector Module PDM03-9107-TTL is a photodetector module that is pre-configured for optimum performance and ease of use.
The features of the Photodetector Module PDM03-9107-TTL include pre-configured settings for optimum performance, a wide dynamic range of up to 100Mcps, magnetic and electrostatic shielding, lower cost options, and spectral range options.
The Photodetector Module PDM03-9107-TTL can be used in spectroscopy, photonics, biophotonics, OEM, and laser optics.
The warm-up time for the Photodetector Module PDM03-9107-TTL is 5.5 minutes.
The output pulse of the Photodetector Module PDM03-9107-TTL is a TTL high level (terminated) with a rise and fall time, pulse-pair resolution, and dead-time.
