Description

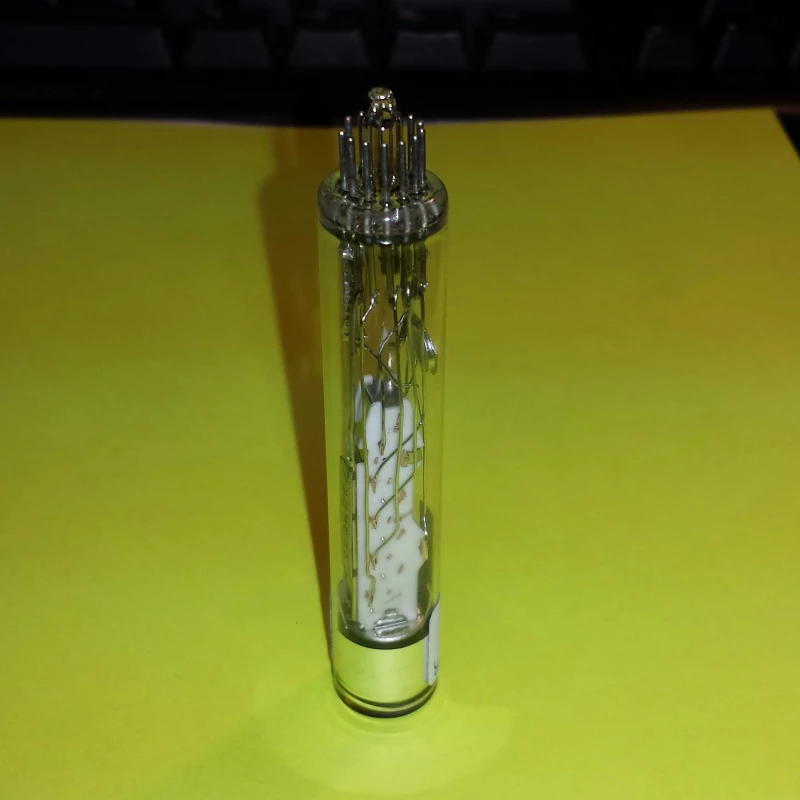

Photomultiplier Tube (PMT) by ADIT Electron Tubes.
The 9125B is a 29 mm (1.13") diameter, end window photomultiplier with blue-green sensitive bialkali photocathode and 11 high gain, high stability, SbCs dynodes
of linear focused design.
The 9125WB and 9125QB are variants for applications requiring uv sensitivity.
9125B - 29mm Photomultiplier Tube
Specifications
PMT Type: | PMT (photomutiplier tube) |
---|---|
Wavelength Of Max Response: | 350 nm |
Wavelength Range: | 280 – 630 nm |
Rise Time: | 4.5 ns |
Features
- UV glass variant available for UV sensitivity
- Fused silica variant available for UV sensitivity
- Flexible lead option available
- Voltage dividers available
- Magnetic Shields available
In addition, our UK factory supplies housings, power bases and signal processing electronics together with a new range of integrated detector modules.
Applications
- Wide range of applications
- Spectroscopy
- X-ray & gamma-ray spectroscopy
- Photon counting of bio- and chemi-luminescent samples
Frequently Asked Questions
What is the diameter of the 9125B Photomultiplier Tube?
The diameter of the 9125B Photomultiplier Tube is 29 mm (1.13 inches).
What is the sensitivity of the photocathode of the 9125B Photomultiplier Tube?
The 9125B Photomultiplier Tube has a blue-green sensitive bialkali photocathode.
Are there any variants of the 9125B Photomultiplier Tube available?
Yes, the 9125WB and 9125QB variants are available for applications requiring UV sensitivity.
What options are available for the 9125B Photomultiplier Tube?
The 9125B Photomultiplier Tube has options including a UV glass variant for UV sensitivity, a fused silica variant for UV sensitivity, flexible lead option, voltage dividers, and magnetic shields.
What are the applications of the 9125B Photomultiplier Tube?
The 9125B Photomultiplier Tube has a wide range of applications including spectroscopy, X-ray & gamma-ray spectroscopy, and photon counting of bio- and chemi-luminescent samples.
