Description
The UP10K-2S-H5-L-D0 is a high-performance thermal detector designed for laser power measurement up to 2 W. With its low power thermopile and compact design, it offers a noise level of a photo detector along with the large bandwidth and high-power capacity of a thermal device.
The detector features an IR filter to remove unwanted IR interference, ensuring accurate power measurements. It comes with a smart interface containing all the calibration data for convenient and precise measurements.

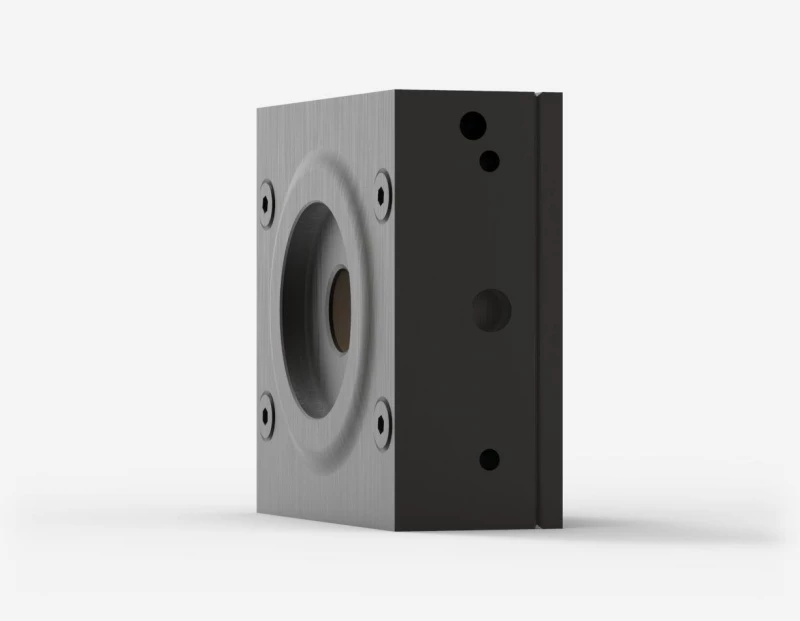

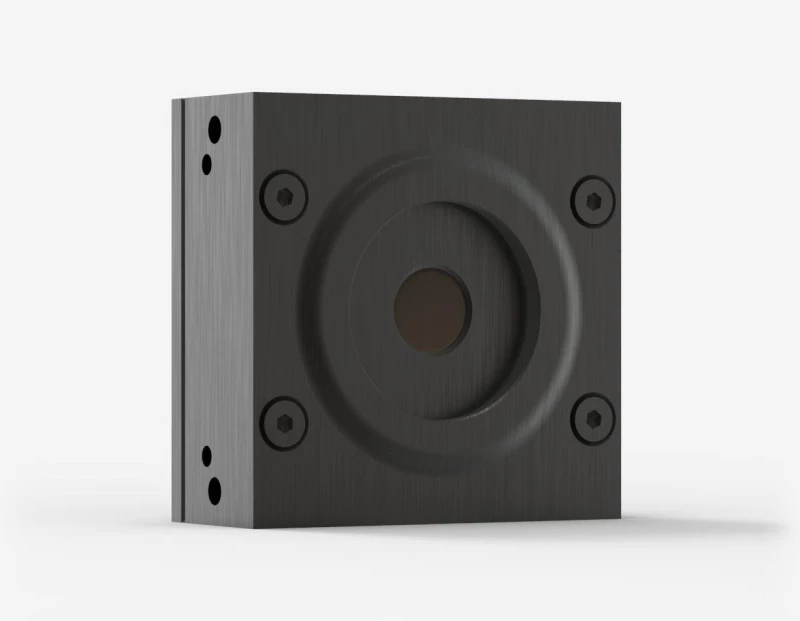

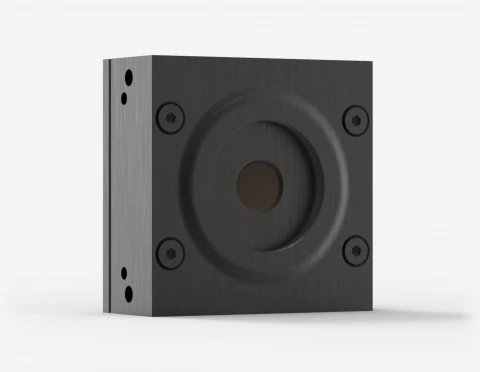

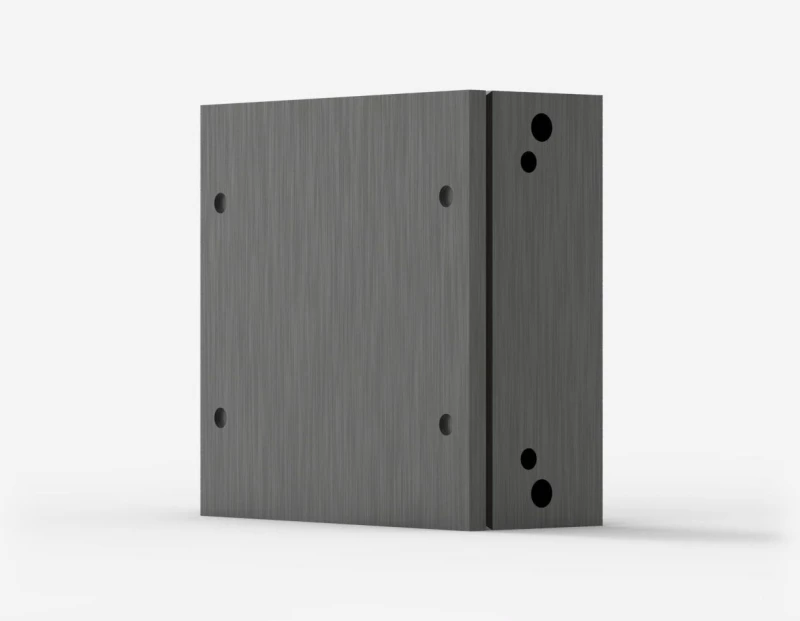

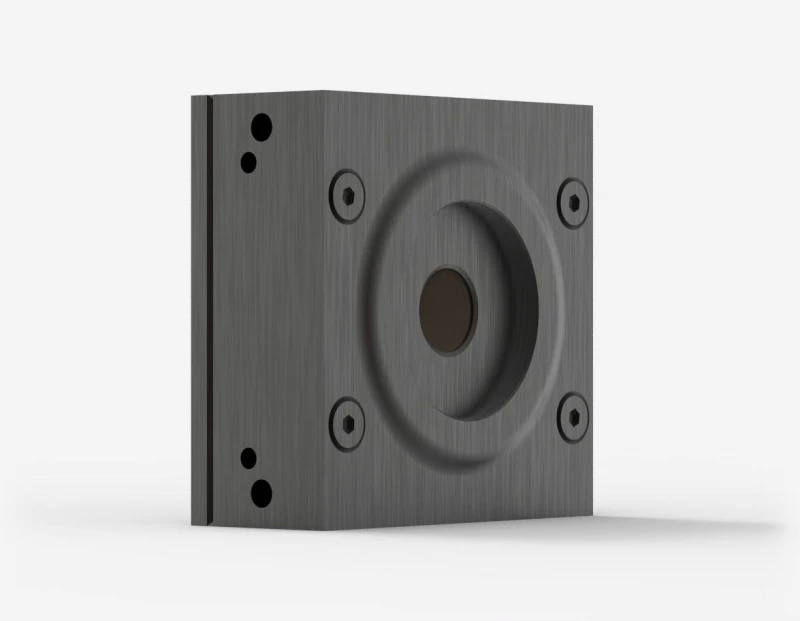

UP10K-2S-H5-L-D0 Thermal Detector for Laser Power Measurement
Specifications
Detector Type: | Thermal Absorber (thermopile) |
---|---|
Spectral Range: | 0.19 – 20 um |
Size: | 10 mm |
Maximum Power: | 2 W |
Noise Equivalent Power: | 200 uW |
Max Average Power Density: | 36 kW/cm2 |
Noise Equivalent Power: | 30 μW |
Typical Rise Time: | 1.1 s |
Typical Energy Sensitivity: | 2.4 mV/J |
Maximum Measurable Energy: | 3 J |
Minimum Repetition Period: | 2 s |
Maximum Pulse Width: | 63 ms |
Energy Calibration Uncertainty: | ±5 % |
Maximum Energy Density: | 1 J/cm² |
Absorber: | H5 |
Cooling: | Convection |
Dimensions: | 50H x 50W x 21.5D mm |
Weight: | 0.193 kg |
Features
- Low power thermopile with high power capacity
- IR filter to remove unwanted IR interference
- Fast rise time of 1.1 sec
- High damage threshold of 36 kW/cm2
- Compact design with a thickness of only 13 mm
- Energy mode for measuring single shot energy up to 3 J
- Smart interface with calibration data
Applications
- Laser power measurement up to 2 W
- Research and development
- Laser manufacturing and testing
- Medical and aesthetic laser applications
- Laser safety and compliance
Frequently Asked Questions
Can this laser power detector cable be used to carry the detector?
No, to eliminate possible damage, do not carry the detector using the connector cable.
What are the physical characteristics of the Gentec-EO UP10K-2S-H5-L-D0 power detector?
The Gentec-EO UP10K-2S-H5-L-D0 laser power detector has an aperture diameter of 10 mm, absorber H5, dimensions of 50H x 50W x 21.5D mm, and weighs 0.19 kg.
What is the measurement range for the Gentec-EO HP Series power detectors?
The measurement range for the Gentec-EO HP Series power detectors varies depending on the model, but ranges from -100 W to 15 KW of average power.
What is the noise level of the Gentec-EO UP10K-2S-H5-L-D0 detector?
The Gentec-EO UP10K-2S-H5-L-D0 detector has a noise level of a photo detector with the large bandwidth and high power capacity of a thermal device.
What is the output connection option for the HP-D0 detectors?
The HP-D0 detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector.
