Description
The UP12E-10S-H5-D0 is a thermal detector designed for accurate laser power measurement up to 10 W. With its high sensitivity and precision, it provides reliable power readings for a wide range of laser applications.
The detector features a compact design, convection cooling, and a durable H5 absorber for enhanced performance. It is an essential tool for laser power monitoring and control.

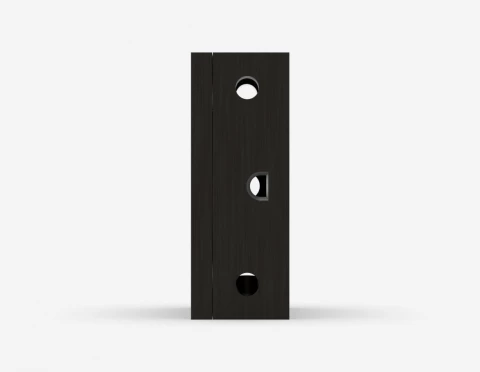

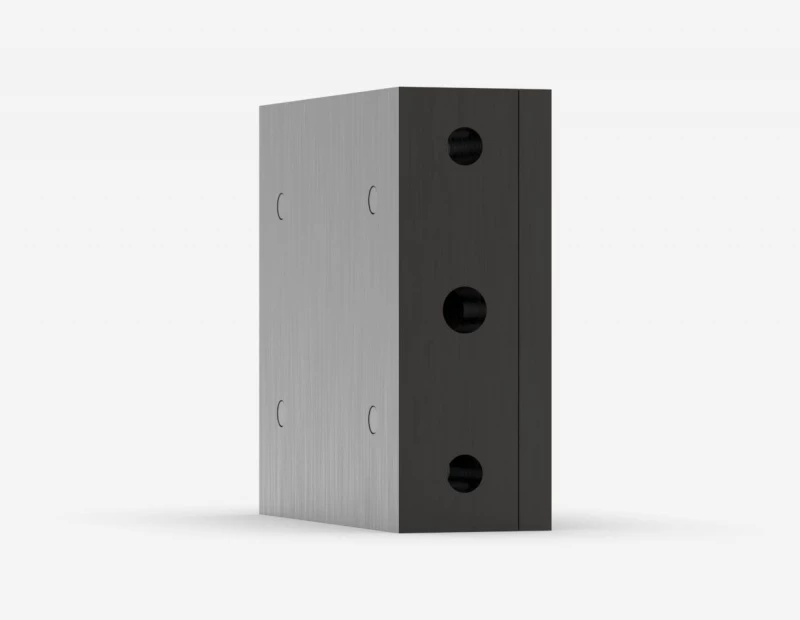

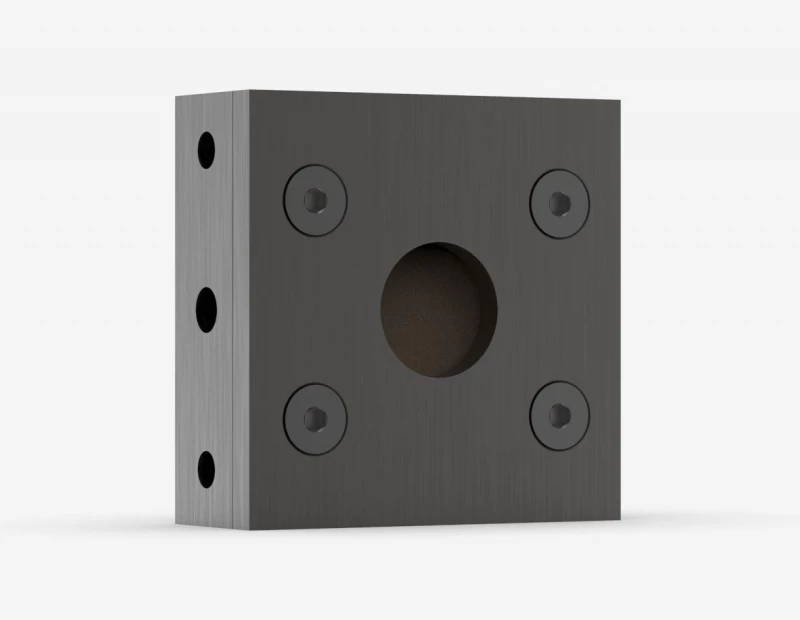

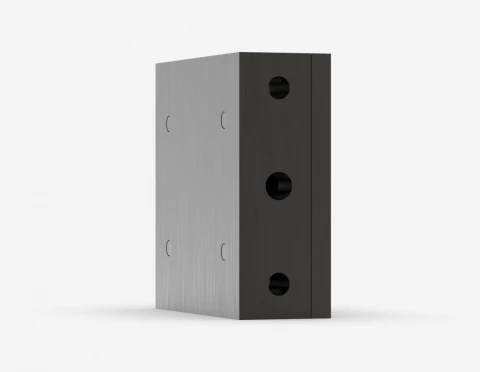

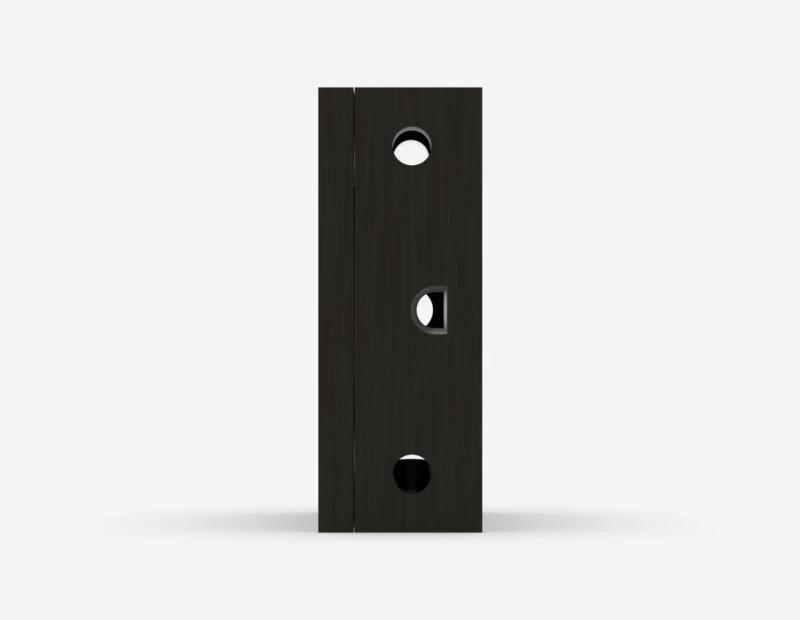

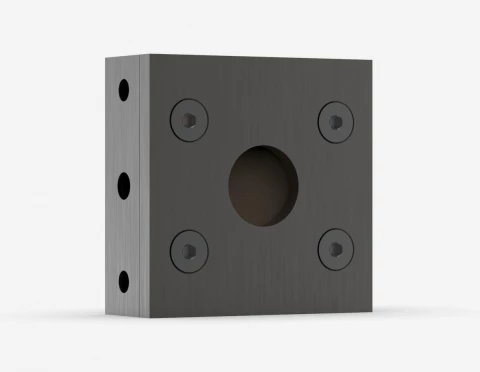

UP12E-10S-H5-D0 Thermal Detector for Laser Power Measurement
Specifications
Detector Type: | Thermal Absorber (thermopile) |
---|---|
Spectral Range: | 0.19 – 20 um |
Size: | 12 mm |
Maximum Power: | 10 W |
Noise Equivalent Power: | 1000 uW |
Max Average Power Density: | 36 kW/cm2 |
Typical Rise Time: | 0.3 s |
Typical Power Sensitivity: | 0.53 mV/W |
Power Calibration Uncertainty: | ±2.5 % |
Repeatability: | ±0.5 % |
Typical Energy Sensitivity: | 0.84 mV/J |
Maximum Measurable Energy: | 5 J |
Noise Equivalent Energy: | 0.002 J |
Minimum Repetition Period: | 1.5 s |
Maximum Pulse Width: | 50 ms |
Energy Calibration Uncertainty: | ±5 % |
Maximum Energy Density: | 1 J/cm² |
Absorber: | H5 |
Cooling: | Convection |
Dimensions: | 38H x 38W x 14D mm |
Weight: | 0.13 kg |
Features
- High-precision thermal detector for laser power measurement up to 10 W
- Compact design with convection cooling for efficient heat dissipation
- H5 absorber for enhanced performance and reliability
- Wide spectral range from 0.193 μm to 20 μm
- Fast response time of 0.3 s for quick power measurements
- Noise equivalent power of 1 mW for accurate low-power detection
- Power calibration uncertainty of ±2.5% for precise power readings
- Damage thresholds of 36 kW/cm² (maximum average power density) and 1 J/cm² (maximum energy
- density)
- Lightweight and portable design for easy integration into laser systems
- Suitable for various laser applications requiring power measurement
Applications
- Laser power monitoring and control
- Laser research and development
- Laser manufacturing processes
- Laser system integration
- Laser safety and compliance testing
- Laser material processing
- Laser marking and engraving
- Laser-based medical procedures
- Laser-based scientific experiments
Frequently Asked Questions
What are the output connection options for the UP detectors?
The UP detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector.
What is the Gentec-EO Ultra Series UP power detector family?
The Gentec-EO Ultra Series UP power detector family includes thirteen series of opto-thermal sensors with different cooling options, with or without amplification.
What is the maximum average power for the UP12E-10S-H5-D0 detector?
The maximum average power for the UP12E-10S-H5-D0 detector is 10 W.
What is the maximum measurable energy for this thermal detector?
The maximum measurable energy for this thermal detector is 15 J.
What is the typical rise time for this laser power detector?
The typical rise time for the detector is 0.3 sec.
