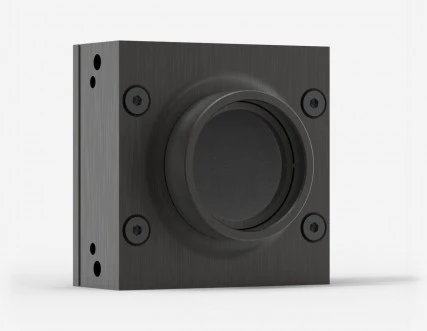

Gentec-EO High Power Detector UPF10K-2S-H5-L-D0
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Description
The UPF10K-2S-H5-L-D0 is a state-of-the-art thermopile laser power detector designed by Gentec-EO, offering precise and reliable measurements for laser power up to 2 watts. This advanced device is engineered to meet the needs of professionals requiring accurate laser power assessments, ensuring optimal performance in various applications. Its compact and robust design makes it an ideal choice for environments where space is at a premium, without compromising on the quality of measurements.
One of the standout features of the UPF10K-2S-H5-L-D0 thermopile laser power detector is its ability to deliver the noise level of a photo detector combined with the extensive bandwidth and high power capacity typical of thermal devices. This unique combination ensures that users can achieve precise measurements with minimal interference, thanks to the integrated IR filter that effectively removes unwanted infrared interference. The device's fast rise time of 1.4 seconds and high damage threshold of 36 kW/cm² further enhance its performance, making it suitable for demanding tasks.
In addition to its power measurement capabilities, this laser power detector also supports energy mode, allowing for the measurement of single-shot energy up to 3 joules. The smart interface of the detector contains all necessary calibration data, ensuring ease of use and accuracy. With dimensions of 50H x 50W x 30D mm and a weight of just 0.13 kg, this detector is both portable and easy to integrate into existing systems. Its 10 mm aperture diameter and H5 absorber contribute to its high performance and reliability.
Gentec-EO High Power Detector UPF10K-2S-H5-L-D0
Specifications |
|
|---|---|
| Detector Type: | Thermal Absorber (thermopile) |
| Spectral Range: | 0.28 – 2.1 um |
| Size: | 10 mm |
| Maximum Power: | 2 W |
| Noise Equivalent Power: | 200 uW |
| Max Average Power Density: | 36 kW/cm2 |
| Maximum Average Power: | 2 W |
| Noise Equivalent Power: | 30 μW |
| Spectral Range: | 0.28 - 2.1 μm |
| Typical Rise Time: | 1.1 sec |
| Typical Power Sensitivity: | 2 mV/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Typical Energy Sensitivity: | 2.4 mV/J |
| Maximum Measurable Energy: | 3 J |
| Noise Equivalent Energy: | 5 mJ |
| Minimum Repetition Period: | 2 s |
| Maximum Pulse Width: | 63 ms |
| Energy Calibration Uncertainty: | ±5 % |
| Maximum Average Power Density: | 36 kW/cm² |
| Maximum Energy Density: | 1 J/cm² |
| Peak Power Density: | 143 MW/cm² |
| Aperture Diameter: | 10 mm |
| Absorber: | H5 |
| Dimensions: | 50H x 50W x 30D mm |
| Weight: | 0.13 kg |
Features
Applications
- Laser power measurements in the DUV to SWIR range
- Spectroscopy
- Metrology
Frequently Asked Questions
The Gentec-EO High Power Detector UPF10K-2S-H5-L-D0 is a thermopile laser power detector that can measure laser power up to 2 W.
The maximum measurable energy of the laser power detector is 13 J.
The noise equivalent power of the detector is 30 μW.
The spectral range of the detector is 0.28 - 2.1 μm.
The typical rise time of the detector is 1.1 sec.
