Description
The Gentec-EO Ultra Series UP power detector family is a thermal detector for laser power measurements up to 500 W. It includes thirteen series (XLP12, UP12E, UP10K(P), UP17P, UP19K, UP25N(M), UP25T, UP50N(M), UP55N(M), UP55C, UP60N(M), UP55G, and UP60G) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification. The high power surface absorber sensors are designed for use at high average power densities.
- MODULAR CONCEPT: Increase the power capability of your detector: 4 different cooling modules
- HIGH PERFORMANCE: Fast Rise Time (2 sec) High Damage Threshold (45 kW/cm2)
- COMPACT DESIGN: Only 32 mm thick (40S model)
- ENERGY MODE: Measure single shot energy up to 200 J
- SMART INTERFACE: Containing all the calibration data
About Gentec-EO: Gentec Electro-Optics is specialized in laser beam and terahertz source measurement and analysis. Gentec-EO is an expert in the design and manufacture of light detection and measurement technologies and solutions with a 50-year history in the market. Gentec\'s offerings include laser beam profilers, detectors, power and energy meters, power and energy measurement displays, and more.

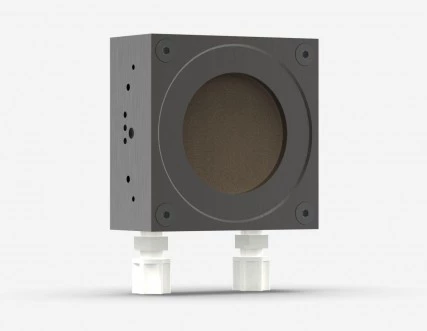

UP55M-500W-H12-D0 Thermopile Laser Power Detector
Specifications
| Detector Type: | Thermal Absorber (thermopile) |
|---|---|
| Spectral Range: | 0.19 – 20 um |
| Size: | 55 mm |
| Maximum Power: | 500 W |
| Noise Equivalent Power: | 15000 uW |
| Max Average Power Density: | 45 kW/cm2 |
| Maximum Average Power (continuous): | 500 W |
| Maximum Average Power (1 Minute): | 500 W |
| Noise Equivalent Power: | 15 mW |
| Spectral Range: | 0.19 - 20 μm |
| Typical Rise Time: | 2 sec |
| Typical Power Sensitivity: | 0.06 mV/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Typical Energy Sensitivity: | 0.015 mV/J |
| Maximum Measurable Energy: | 200 J |
| Noise Equivalent Energy: | 0.25 J |
| Minimum Repetition Period: | 12 s |
| Maximum Pulse Width: | 430 ms |
| Energy Calibration Uncertainty: | ±5 % |
| Maximum Average Power Density: | 45 kW/cm² |
| Maximum Energy Density: | 1 J/cm² |
| Peak Power Density: | 143 MW/cm² |
| Aperture Diameter: | 55 mm |
| Absorber: | H12 |
| Dimensions: | 89H x 89W x 40D mm |
| Weight: | 0.81 kg |
Download Data Sheet
Features
The UP thermal power detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector. A few exception exist: the UP50N series is available with BNC Molex connector on special order only and the XLP12, UP60N(M), and UP60G series are only supplied with a DB-15 “intelligent” male connector and the Integra USB connector.
NOTE To eliminate possible damage, do not carry the detector using the connector cable.
The UP power detectors may also be supplied with a stand. Be aware that when using a detector with a heat sink, the fins should always be placed vertically. For cases where Gentec-EO’s monitors don’t automatically read the wavelength correction factor, you can use your detector’s “Personal wavelength correction TM Certificate” to adjust the power you read to a power corrected for a particular wavelength.
Applications
The High Power Detector UP55M-500W-H12-D0 is used in laser power measurements in laser optics, inspection, semiconductors, biomedical, academic, spectroscopy, and other applications.
