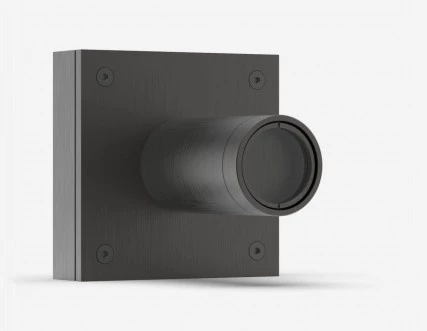

XLPF12-3S-H2-D0 Thermopile Laser Power Detector 3W
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Description
The XLPF12-3S-H2-D0 Thermopile Laser Power Detector by Gentec-EO is a precision instrument designed for accurate laser power measurement up to 3 watts. This advanced device is engineered to deliver the noise level of a photo detector while maintaining the large bandwidth and high power capacity of a thermal device, making it an ideal choice for professionals who require reliable and precise laser power measurements.
One of the standout features of this thermal detector is its minimal thermal drift, which is only 6 µW/°C when used with the IR filter. This ensures consistent performance and accuracy even in varying temperature conditions. The detector also boasts high sensitivity, with a rating of 200 mV/W without the IR filter, allowing it to detect even the slightest changes in laser power.
This model is particularly suited for low power lasers with ultrashort pulses, thanks to its VP (volume absorber) version. The inclusion of an IR filter in the XLPF12 model effectively removes unwanted IR interference, enhancing the accuracy of measurements. Additionally, the isolation tube feature eliminates power fluctuations caused by air turbulence, ensuring stable and reliable readings.
Physically, the device is compact and lightweight, with dimensions of 73H x 73W x 28D mm (80D mm with tube) and a weight of just 0.32 kg. It features a 12 mm aperture diameter and an H2 absorber, making it versatile and easy to integrate into various setups. The device is compatible with a range of displays and PC interfaces, including MAESTRO, TUNER, UNO, and several S-LINK and P-LINK options, providing flexibility in data management and analysis.
XLPF12-3S-H2-D0 Thermopile Laser Power Detector 3W
Specifications |
|
|---|---|
| Detector Type: | Thermal Absorber (thermopile) |
| Spectral Range: | 0.28 – 2.1 um |
| Size: | 12 mm |
| Maximum Power: | 3 W |
| Noise Equivalent Power: | 0.5 uW |
| Max Average Power Density: | 1 kW/cm2 |
| Maximum Average Power (continuous): | 3 W |
| Maximum Average Power (1 Minute): | 3 W |
| Noise Equivalent Power: | 0.5 μW |
| Spectral Range: | 0.28 - 2.1 μm |
| Typical Rise Time: | 2.5 sec |
| Typical Power Sensitivity: | 180 V/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Thermal Drift: | 6 μW/°C |
| Typical Energy Sensitivity: | 22.5 mV/J |
| Maximum Measurable Energy: | 5 J |
| Noise Equivalent Energy: | 12 μJ |
| Minimum Repetition Period: | 16 s |
| Maximum Pulse Width: | 300 ms |
| Energy Calibration Uncertainty: | ±5 % |
| Maximum Average Power Density: | 1 kW/cm² |
| Maximum Energy Density: | 1 J/cm² |
| Peak Power Density: | 143 MW/cm² |
| Aperture Diameter: | 12 mm |
| Absorber: | H2 |
| Dimensions: | 73H x 73W x 28D mm (80D mm with tube) |
| Weight: | 0.32 kg |
Features
Applications
- Laser power measurements
- Metrology and inspection
- Spectroscopy
Frequently Asked Questions
The XLPF12-3S-H2-D0 is a thermopile laser power detector designed for measuring laser power up to 3 W.
The noise equivalent power of this thermal power detector is 0.5 μW.
The spectral range is 0.28 - 2.1 μm.
The thermal drift of the detector is 6 μW/°C with the IR filter.
The maximum average power the XLPF12-3S-H2-D0 can measure is 3 W, both continuously and for 1 minute.
This device is compatible with MAESTRO, TUNER, UNO, S-LINK-1, S-LINK-2, P-LINK (USB), M-LINK, P-LINK (RS-232), P-LINK-4 (USB), P-LINK-4 (Ethernet) V2, S-LINK-1 (Ethernet), and S-LINK-2 (Ethernet).
The typical rise time of the detector 2.5 seconds.
