Description

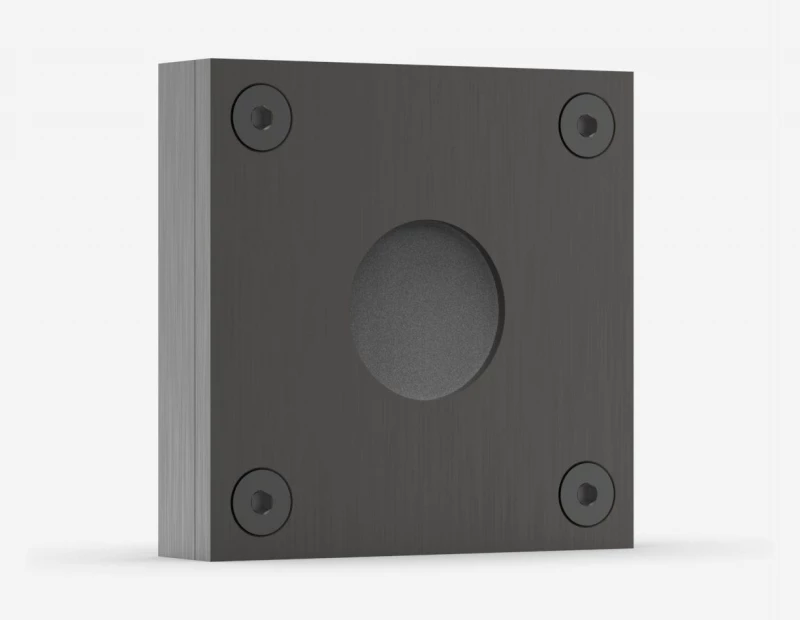

The UP17P-6S-W5-D0 is a high-precision thermal detector designed for laser power measurement applications. With its exceptional measurement capabilities and robust physical characteristics, it is the ideal choice for accurate power measurement in various laser systems.

UP17P-6S-W5-D0 Thermal Laser Power Detector

Visit the Gentec-EO Store

Specifications

Detector Type: Thermal Absorber (thermopile)
Spectral Range: 0.19 – 10 um
Size: 17 mm
Maximum Power: 6 W
Noise Equivalent Power: 1000 uW
Max Average Power Density: 100 kW/cm2
Maximum Average Power (1 Minute): 7 W
Noise Equivalent Power: 1 mW
Typical Rise Time: 1.4 s
Typical Power Sensitivity: 0.6 mV/W
Power Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5 %
Typical Energy Sensitivity: 0.2 mV/J
Maximum Measurable Energy: 200 J
Noise Equivalent Energy: 0.02 J
Minimum Repetition Period: 5.0 s
Maximum Pulse Width: 133 ms
Energy Calibration Uncertainty: ±5 %
Maximum Energy Density: 1.1 J/cm²
Cooling: Convection
Absorber: W
Dimensions: 46H x 46W x 10.7D mm
Weight: 0.12 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Ultra Thin Casing: Only 10.7 mm thick!
  • Choice Between 2 Absorbers:
    • H5: 36 kW/cm²
    • W5: Unequalled 100 kW/cm²
  • High "Power to Size" Ratio: 6 W continuous reading
  • Energy Mode: Measure single shot energy up to 200 J (with the W5 version)
  • Smart Interface: Contains all the calibration data
  • Compatible Stand: STAND-S-233

Applications

  • Laser power measurement up to 6 W
  • Suitable for laser systems operating within the 0.193 - 10 μm spectral range
  • Precision measurements with a low noise equivalent power
  • Quick response time for dynamic laser power monitoring
  • Reliable and repeatable measurements with ±0.5% repeatability

Frequently Asked Questions

What is the damage threshold of this thermal detector?
The damage threshold of this thermal detector is 1100 kW/cm² for maximum average power density and 1.1 J/cm² for maximum energy density.
What is the maximum average power that the Gentec-EO High Power Detector UP17P-6S-W5-D0 can measure?
The maximum average power that the Gentec-EO High Power Detector UP17P-6S-W5-D0 can measure is 6 W.
What is the noise equivalent energy of the detector?
The noise equivalent energy of the detector is 0.02 J.
What is the spectral range of the thermal detector?
The spectral range of the thermal detector is 0.19 - 10 μm.
What is the weight of this laser power detector?
The weight of the detector is 0.1 kg.
