Description

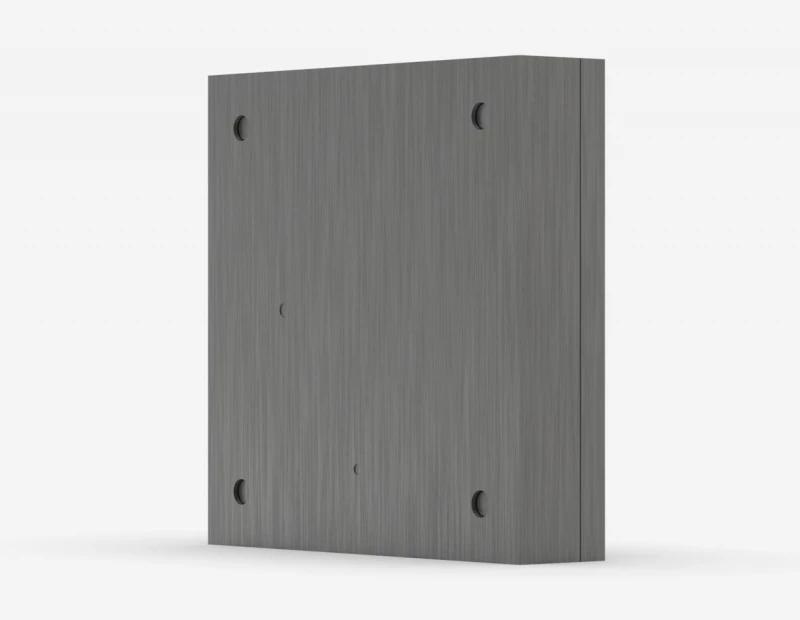

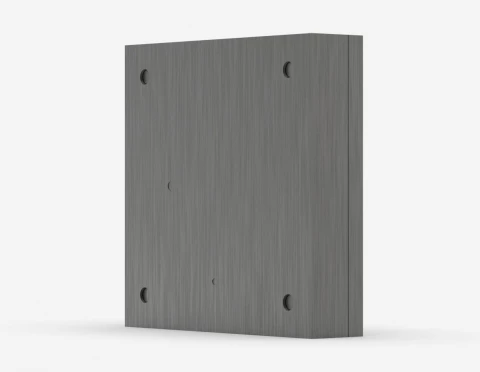

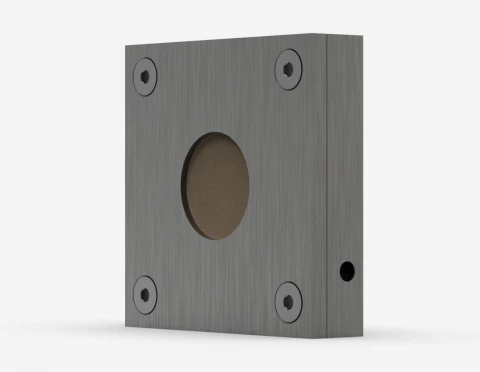

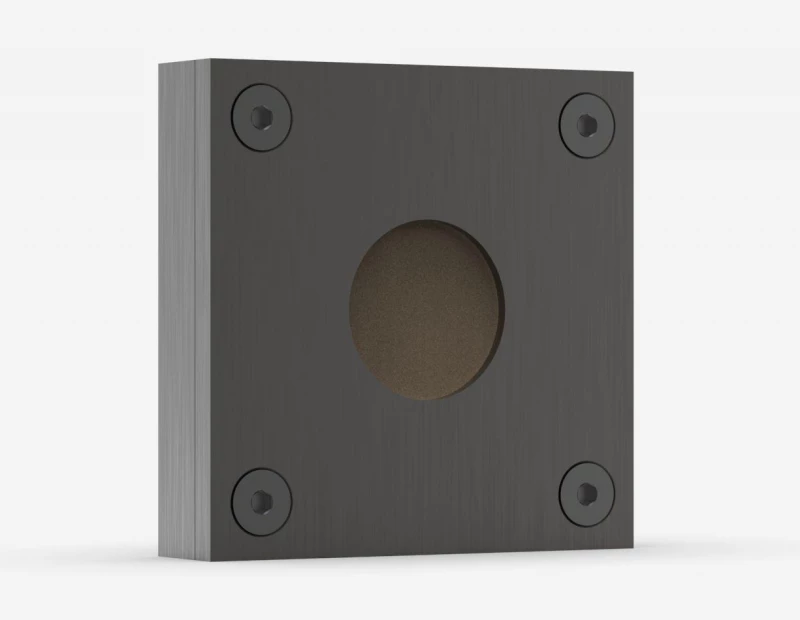

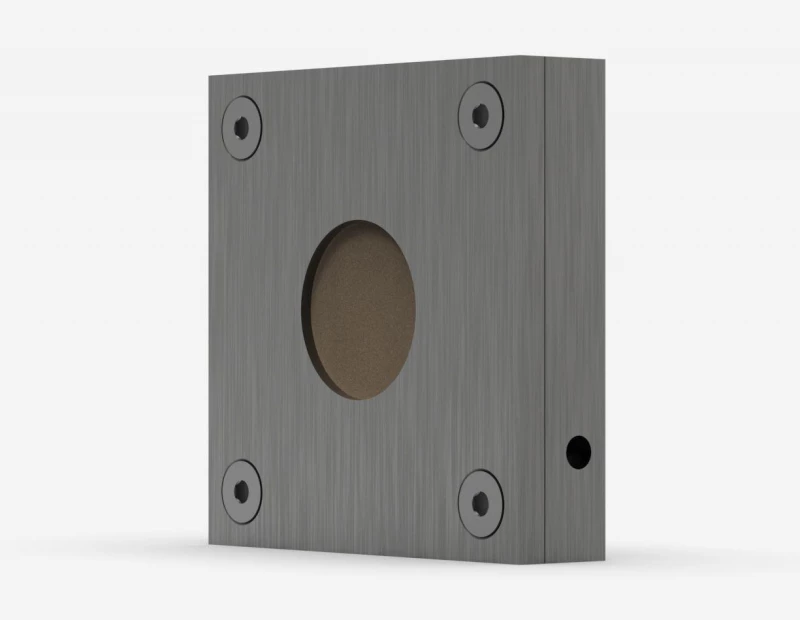

The UP17P-6S-H5-D0 is an ultra-thin thermal detector designed for laser power measurement up to 6 W. With its ultra-thin casing measuring only 10.7 mm thick, it offers a compact and lightweight solution for power measurements.
This thermal detector provides a choice between two absorbers: the H5 version with a damage threshold of 36 kW/cm2 and the W5 version with an unparalleled 100 kW/cm2 damage threshold. It features a high "power to size" ratio, allowing continuous reading of up to 6 W. The UP17P-6S-H5-D0 also includes an energy mode for measuring single-shot energy up to 200 J (with the W5 version) and a smart interface containing all the calibration data.
UP17P-6S-H5-D0 Ultra-Thin Thermal Detector for Laser Power Measurement
Specifications
| Detector Type: | Thermal Absorber (thermopile) |
|---|---|
| Spectral Range: | 0.19 – 20 um |
| Size: | 17 mm |
| Maximum Power: | 6 W |
| Noise Equivalent Power: | 1000 uW |
| Max Average Power Density: | 36 kW/cm2 |
| Typical Rise Time: | 0.8 s |
| Typical Power Sensitivity: | 0.6 mV/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Maximum Pulse Width: | 88 ms |
| Energy Calibration Uncertainty: | ±5 % |
| Maximum Energy Density: | 1 J/cm² |
| Absorber: | H5 |
| Cooling: | Convection |
| Dimensions: | 46H x 46W x 10.7D mm |
| Weight: | 0.1 kg |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Ultra-thin casing, only 10.7 mm thick
- Choice between two absorbers: H5 (36 kW/cm2) and W5 (100 kW/cm2)
- High "power to size" ratio, capable of continuous reading up to 6 W
- Energy mode for measuring single-shot energy up to 200 J (W5 version)
- Smart interface with calibration data
Applications
- Laser power measurement up to 6 W
- Laser research and development
- Laser manufacturing and testing
- Medical and aesthetic laser applications
- Laser safety and compliance
