Description

Our pyroelectric detectors are a class of room temperature thermal detectors that produce a current output that is directly proportional to the rate of change of temperature when exposed to a source of radiation. They are best described by an AC current source, capacitor and resistor. Their current output is governed by the equation I = p(T)·A·dT/dt, where I is current, p(T) is the pyro coefficient, A is the area as defined by the front electrode, and dT/dt is the rate of temperature change of the pyro crystal. The advantages of a pyroelectric detector over other IR detectors are: room temperature operation, broad spectral response, high sensitivity (D*) and fast response (sub-nsec into 50 Ω).

Our passive discrete pyroelectric detectors range from 1 to 9 mm in diameter and are provided in two configurations: high sensitivity or high average power. They present a pyroelectric detector element covered with our metallic coating (MT) and are packaged in a miniature TO-5 or TO-8 can. The diagram shown left identifies the pin-out for both types of detectors. Our organic black coating (BL), increases the optical absorption and helps flatten the spectral response. We also offer a number of permanent IR Windows that can be added to the TO can. These discrete pyro detectors are ideal for pulsed laser applications.

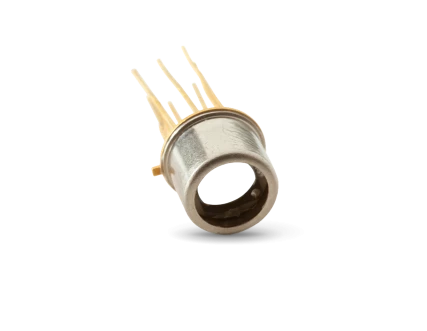

Gentec-EO Discrete Pyroelectric Sensor QS5-L

Specifications

Detector Type: Pyroelectric
Spectral Range: 0.1 – 1000 um
Size: 5 mm
Maximum Power: 0.05 W
Current Responsivity: 0.25 μA/W
Thermal Frequency: 0.5 Hz
Temperature Coefficient: 0.2 %/°C
Aperture Diameter: 5 mm
Dimensions: 9.1Ø x 6.4D mm
Weight: 0.001 kg
Package: TO5

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Broad Spectral Response: Capable of detecting wavelengths from 0.1 to 1000 µm, making it versatile for various applications.
  • Four Product Families:
    • QS-L: Discrete pyro detectors with low noise level.
    • QS-H: Discrete pyro detectors designed for high average power.
    • QS-IF: Hybrid pyro detectors operating in current mode with fast response.
    • QS-IL: Hybrid pyro detectors operating in current mode with low noise level.
  • Easy to Integrate Format: Available in TO5 and TO8 packages, making integration into existing systems seamless.
  • Large Area Sensors: Features 5 mm and 9 mm diameter pyroelectric sensors for easier optical alignment.
  • Optional IR Windows: Choose from several infrared window options to suit your needs:
    • Quartz: 0.2 – 3.5 µm
    • Barium Fluoride: 0.2 – 17.5 µm
    • Sapphire: 0.1 – 7.0 µm
    • Silicon: 1.2 – 9.0 µm and 22 – 100 µm
    • AR Germanium: 1.8 – 23 µm (10.6 µm peak)
  • Measurement Capabilities: Designed for precision with a maximum average power of 50 mW and a current responsivity of 0.25 μA/W.
  • Physical Characteristics:
    • Thermal Frequency: 0.5 Hz
    • Temperature Coefficient: 0.2 %/°C
    • Aperture Diameter: 5 mm
    • Absorber: MT
    • Dimensions: 9.1Ø x 6.4D mm
    • Weight: 0.001 kg
    • Package: TO5

Applications

  • Thermal measurements
  • Laser optics
  • Metrology
  • Inspection
  • Biomedical
  • Military

Frequently Asked Questions

What are the advantages of using a pyroelectric detector?
The advantages of using a pyroelectric detector include room temperature operation, broad spectral response, high sensitivity, and fast response time.
What are the available IR windows that can be added to the QS5-L pyroelectric sensor?
The available IR windows that can be added to the QS5-L pyroelectric sensor include quartz, barium fluoride, sapphire, silicon, and AR germanium.
What are the different configurations of Gentec-EO's pyroelectric detectors?
Gentec-EO's pyroelectric detectors come in two configurations: high sensitivity or high average power.
What are the physical characteristics of the QS5-L pyroelectric sensor?
The QS5-L pyroelectric sensor has a maximum average power of 50 mW, a spectral range of 0.1 - 1000 μm, a current responsivity of 0.25 μA/W, and an aperture diameter of 5 mm.
What is a pyroelectric detector?
A pyroelectric detector is a type of thermal detector that produces a current output proportional to the rate of change of temperature when exposed to radiation.
