Description
The MonoLux Tunable Quantum Cascade Laser System is a state-of-the-art laser solution designed for precision and versatility. This advanced system features a wavelength tunable external grating cavity quantum cascade laser, enabling precise wavelength coverage of ±5% around the center wavelength, with broader tuning ranges available as an option. The laser head, which houses both the QCL and collimating optics, is meticulously sealed to ensure reliable performance in diverse environmental conditions. Delivered as a complete package, the MonoLux system is ready to operate with a laptop-based interface, providing a seamless user experience from installation to operation.
Engineered for efficiency, the MonoLux operates in a quasi-continuous wave (QCW) mode, producing 200-500 ns pulses at a repetition rate of approximately 500 kHz to 2 MHz, resulting in a duty cycle of about 50%. This mode allows the system to achieve an impressive average power output exceeding 500 mW at the center of its tuning curve, depending on the chosen center wavelength. For applications requiring continuous wave (CW) operation, the system can be configured to run at a 100% duty cycle. The MonoLux's passive cooling system eliminates the need for fans, ensuring quiet and unobtrusive operation.

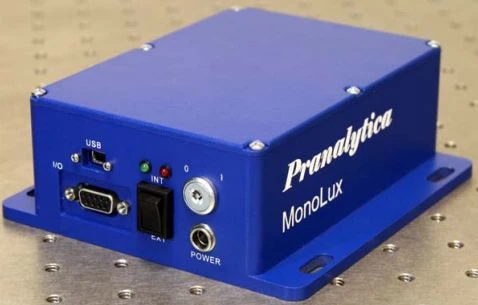

With its compact design, the MonoLux is both lightweight and portable, making it suitable for a variety of settings. The laser head measures 12 cm in width, 4.5 cm in height, and 13 cm in depth, and weighs less than 0.5 kg. The system connects easily to a computer via USB, supporting Windows XP or later versions, and requires a USB 2.0 port for optimal performance. Overall, the MonoLux Tunable Quantum Cascade Laser System offers a powerful and adaptable solution for precise laser applications, backed by cutting-edge technology and user-friendly operation.
Tunable Monolux Quantum Cascade Laser at 8.5um
Specifications |
|
|---|---|
| Output Power (avg): | 0.5 W |
| Wavelength: | 8.5 um |
| Pulse Duration: | 50 – 500 ns |
| Tuning Range Around Center Wavelength: | >= 300nm |
| Wavelength Range: | um |
| Rep Rate Range: | MHz |
Features
- Tunable Quantum Cascade Laser System: The MonoLux is a wavelength tunable external grating cavity quantum cascade laser system, offering a wavelength coverage of ±5% around the center wavelength, with broader tuning ranges available as an option.
- Operation Modes: Operates in quasi-CW mode with 200-500 ns pulses and a repetition rate of ~500 kHz to 2 MHz for a ~50% duty cycle. Optionally, it can operate in CW mode with a 100% duty cycle.
- Power Output: Delivers an average power output exceeding 500 mW at the center of its tuning curve, depending on the chosen center wavelength.
- Quiet Operation: The system is passively cooled without fans, ensuring very quiet operation.
Applications
- Industrial Process Monitoring: Utilize the MonoLux system for real-time monitoring and control of industrial processes by detecting specific molecular signatures.
- Environmental Gas Analysis: Detect and analyze various gases in the environment with high precision, aiding in pollution control and environmental research.
- Medical Diagnostics: Employ the laser system in medical diagnostics for non-invasive breath analysis to detect biomarkers associated with diseases.
- Security and Defense: Use for stand-off detection of hazardous substances, providing a critical tool for security and defense applications.
- Scientific Research: Support a broad range of scientific research applications, including spectroscopy and chemical analysis, due to its tunable wavelength capabilities.
- Semiconductor Manufacturing: Apply in the semiconductor industry for precise material characterization and quality control processes.
Frequently Asked Questions
The MonoLux Quantum Cascade Laser is a wavelength tunable external grating cavity quantum cascade laser system consisting of one QCL.
The MonoLux Quantum Cascade Laser provides wavelength coverage of ± 5% around the center wavelength (broader tuning range available, optionally).
The MonoLux Quantum Cascade Laser is operated in a quasi-CW mode with 200-500 ns pulses with a repetition rate of ~500 kHz - 2 MHz giving a duty cycle of ~50%.
The average power output from a QCL exceeds 500 mW at the center of its tuning curve depending on the choice of center wavelength.
The MonoLux Quantum Cascade Laser is passively cooled with no fans, which makes for very quiet operation.
