Description

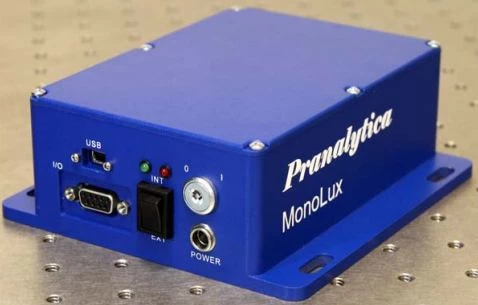

The MonoLux Tunable Quantum Cascade Laser System is a sophisticated and versatile solution designed for precision and reliability. This system features a wavelength tunable external grating cavity quantum cascade laser (QCL), providing exceptional wavelength coverage of ±5% around the center wavelength, with broader tuning ranges available as an option. The laser head, which houses the QCL and collimating optics, is meticulously sealed to ensure trouble-free operation in various environments. The MonoLux system is delivered as a complete package, including the laser head and a laptop-based operating system, ready for immediate deployment at the customer's location.
Operating in a quasi-continuous wave (QCW) mode, the MonoLux system utilizes 200-500 ns pulses with a repetition rate ranging from approximately 500 kHz to 2 MHz, resulting in a duty cycle of around 50%. This operational mode allows the QCL to deliver an impressive average power output exceeding 500 mW at the center of its tuning curve, contingent on the selected center wavelength. For users requiring continuous wave (CW) operation, the MonoLux offers the option to select a 100% duty cycle. The system is ingeniously designed to be passively cooled, eliminating the need for fans and ensuring exceptionally quiet operation.
The MonoLux-AA variant of the Tunable Quantum Cascade Laser System offers enhanced tunability and flexibility. It supports both QCW and optional CW operations, with user-specified center wavelengths ranging from 3.8 µm to 10.2 µm. The system excels in wavelength accuracy and repeatability, providing better than 0.3 cm-1 accuracy and ±0.3 cm-1 repeatability. The output beam is collimated with a divergence of less than 5 mrad, maintaining nearly diffraction-limited beam quality. The system’s compact design, weighing less than 0.5 kg, and its compatibility with Windows XP or later computers via a USB interface, make it a convenient and powerful tool for various applications.
Tunable Monolux Quantum Cascade Laser at 7.3um
Specifications |
|
|---|---|
| Output Power (avg): | 0.5 W |
| Wavelength: | 7.3 um |
| Pulse Duration: | 50 – 500 ns |
| Tuning Range Around Center Wavelength: | >= 300nm |
| Wavelength Range: | um |
| Rep Rate Range: | MHz |
Features
- Tunable Quantum Cascade Laser System: The MonoLux is a wavelength tunable external grating cavity quantum cascade laser system, providing wavelength coverage of ±5% around the center wavelength, with broader tuning range available optionally.
- Operation Modes:
- Quasi-CW mode with 200-500 ns pulses and a repetition rate of ~500 kHz to 2 MHz, achieving a duty cycle of ~50%.
- Optional CW mode with 100% duty cycle for continuous wave operation.
- Power Output: Average power output exceeds 500 mW at the center of its tuning curve, depending on the choice of center wavelength.
Applications
- Environmental Monitoring: Utilize the MonoLux system to detect and analyze atmospheric gases and pollutants with high precision.
- Medical Diagnostics: Apply the tunable laser for non-invasive tissue analysis and identification of biomarkers in medical research.
- Industrial Process Control: Implement the system for monitoring chemical reactions and controlling production processes in real-time.
- Scientific Research: Use the MonoLux for advanced spectroscopy applications, enabling detailed molecular analysis and material characterization.
- Security and Defense: Deploy the system for detecting hazardous substances and ensuring safety in sensitive environments.
- Remote Sensing: Employ the laser's capabilities for environmental and geological surveys, providing accurate data collection from a distance.
- Telecommunications: Explore the use of the tunable laser in optical communication systems for enhanced data transmission.
- Laser Spectroscopy: Conduct high-resolution spectroscopic studies with the MonoLux's precise wavelength tuning capabilities.
Frequently Asked Questions
The MonoLux Quantum Cascade Laser is a wavelength tunable external grating cavity quantum cascade laser system consisting of one QCL.
The MonoLux QCL system provides wavelength coverage of ± 5% around the center wavelength.
The average power output from a QCL exceeds 500 mW at the center of its tuning curve depending on the choice of center wavelength.
The QCL is operated in a quasi-CW mode with 200-500 ns pulses with a repetition rate of ~500 kHz - 2 MHz giving a duty cycle of ~50%.
The MonoLux QCL system is passively cooled with no fans, which makes for very quiet operation.
