Description

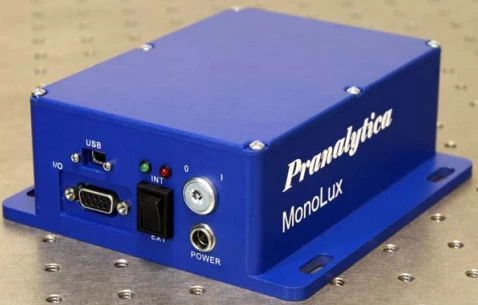

Tunable Monolux QCL system by Pranalytica.
Quantum Cascade Lasers (QCLs) represent a fundamentally new class of semiconductor lasers that are capable of generating light in the mid wave to longwave infrared portions of the spectrum, generally between 4 and 12 microns. MonoLux is a wavelength tunable external grating cavity quantum cascade laser system consisting of one QCL.
Tunable Monolux Quantum Cascade Laser at 6.3um
Specifications
| Output Power (avg): | 0.5 W |
|---|---|
| Wavelength: | 6.3 um |
| Pulse Duration: | 50 – 500 ns |
| Tuning Range Around Center Wavelength: | >= 300nm |
| Wavelength Range: | 3.8 – 12 um |
| Rep Rate Range: | 0.5 – 2 MHz |
Download Data Sheet
Applications
- Spectroscopy
- Free space optical communications
- Directed infrared countermeasures and other security areas
Frequently Asked Questions
What is the MonoLux Quantum Cascade Laser?
The MonoLux Quantum Cascade Laser is a wavelength tunable external grating cavity quantum cascade laser system consisting of one QCL.
What is the wavelength coverage of the MonoLux Quantum Cascade Laser?
The MonoLux Quantum Cascade Laser provides wavelength coverage of ± 5% around the center wavelength (broader tuning range available, optionally).
What is the duty cycle of the MonoLux Quantum Cascade Laser?
The MonoLux Quantum Cascade Laser is operated in a quasi-CW mode with 200-500 ns pulses with a repetition rate of ~500 kHz - 2 MHz giving a duty cycle of ~50%.
What is the power output of the MonoLux Quantum Cascade Laser?
The average power output of the MonoLux Quantum Cascade Laser exceeds 500 mW at the center of its tuning curve depending on the choice of center wavelength.
What is the cooling system of the MonoLux Quantum Cascade Laser?
The MonoLux Quantum Cascade Laser is passively cooled with no fans, which makes for very quiet operation.
