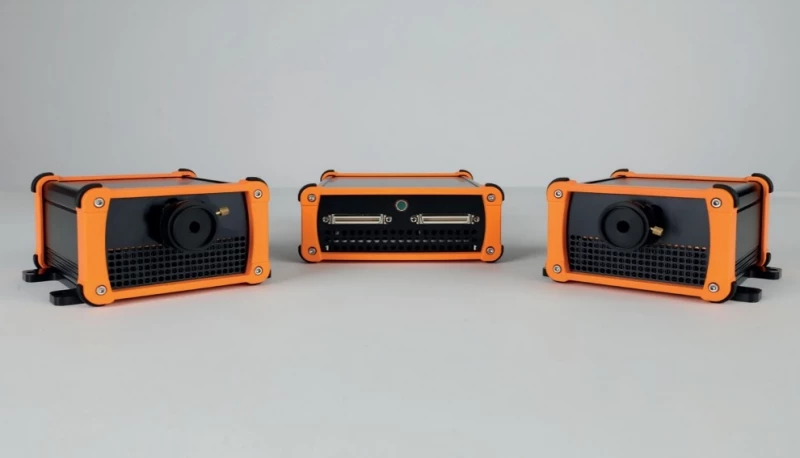

Thumbnail of PW9400090HSTK1A: PowerMir 9.4um High Power Pulsed Quantum Turnkey System 100mW photo 1

Description

The PowerMir 9.4µm High-Power Pulsed Quantum Cascade Laser Benchtop Turnkey System represents a cutting-edge solution tailored for laboratory research and development endeavors. This comprehensive system integrates advanced technology with user-friendly features, providing researchers and engineers with a versatile platform for exploring the capabilities of quantum cascade lasers (QCLs) in various applications.

At the heart of this system lies a high-performance quantum cascade laser (QCL) meticulously engineered to emit pulsed radiation at a wavelength of 9.4 microns (µm). This wavelength range is strategically chosen to target molecular vibrational resonances, making it particularly well-suited for gas sensing, spectroscopic analysis, and other scientific and industrial applications.

The turnkey system's plug-and-play design ensures hassle-free setup and operation, allowing users to focus on their experiments without the complexities of intricate configurations. With the included user-friendly Windows software, researchers gain precise control over critical parameters such as laser temperature, current, frequency modulation, and duty cycle. This software interface empowers users to tailor the laser's output to their specific experimental requirements, facilitating accurate and reproducible results.

PW9400090HSTK1A: PowerMir 9.4um High Power Pulsed Quantum Turnkey System 100mW

Visit the RPMC Lasers, Inc. Store

Specifications

Output Power (avg): 0.1 W
Wavelength: 9.4 um
Pulse Duration: 10 – 300 ns
Tuning Range Around Center Wavelength: Not Applicable
Divergence (Standard Beam): 3 to 6 mrad (horizontal), 2 to 4 mrad (vertical)
Pulse Frequency: 500 kHz
Beam Quality: TM00 Gaussian beam, M²<1.5
Output Beam Dimension For The Standard Beam Option (window Output): Typically 3 mm (vertical) x 2 mm (horizontal)
Polarization: Linear vertically polarized (>98%)
Reliability: > 3500 h
Input Power: 24V DC (an AC/DC power transformer is supplied)
Dimension: laser head: 20cm x 15cm x 6cm / driver: 25cm*15cm*6cm
Weight: 925 g
Operational Temperature Range: -10 to +30 °C
Laser Head Cooling: Air cooled

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Plug-and-play benchtop system for easy setup and operation
  • User-friendly Windows software for precise control of temperature, current, and
  • modulation
  • Compatible with one or two laser heads, regardless of wavelength or power
  • Air-cooled laser heads ensure optimal performance and stability
  • Red beam laser for alignment purposes facilitates setup and calibration
  • Laser safety features, including ON/OFF control and temperature monitoring
  • Frequency modulation and duty cycle control for flexible operation
  • External TTL interface for synchronization with other equipment

Applications

  • Spectroscopic analysis and research
  • Gas sensing and monitoring
  • Material processing and characterization
  • Biomedical diagnostics and imaging
  • Defense and security applications

Frequently Asked Questions

What is the wavelength range of the PowerMir 9.4µm Benchtop Turnkey System?
The system emits pulsed radiation at a central wavelength of 9.4 microns (+/- 0.1 µm).
What applications is the PowerMir 9.4µm Benchtop Turnkey System suitable for?
This system is ideal for various applications including gas sensing, spectroscopy, and molecular analysis.
What are the key features of the PowerMir 9.4µm Benchtop Turnkey System?
The system offers plug-and-play functionality, precise control over laser parameters, air-cooled laser heads, and a user-friendly Windows software interface.
Can the PowerMir 9.4µm Benchtop Turnkey System be used for lab development purposes?
Yes, the system is specifically designed for laboratory research and development, providing researchers with a versatile platform for experimentation.
How does the system ensure laser safety?
The system features laser safety measures such as an ON/OFF laser driver, temperature and TEC control, and external TTL triggering for enhanced safety during experiments.
What are the physical dimensions and weight of the laser head and driver?
The laser head measures approximately 20cm x 15cm x 6cm, while the driver measures 25cm x 15cm x 6cm. The total weight is 925 grams.
What is the operating temperature range of the
PowerMir 9.4µm Benchtop Turnkey System? The system operates within an ambient temperature range of +10°C to +30°C.
Can the system be easily integrated into existing laboratory setups?
Yes, the system's plug-and-play design and compatibility with Windows software make it easy to integrate into existing laboratory setups.
What power supply does the PowerMir 9.4µm Benchtop Turnkey System require?
The system requires a 24V DC power supply, which is supplied with an AC/DC power transformer.
How does the system facilitate alignment during experiments?
The system includes an option for an extra red laser beam, which aids in alignment with typically 2-3mrad pointing difference between the red laser beam and the infrared beam.
