Description

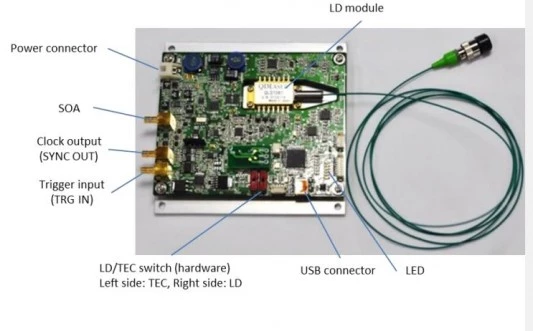

QC2x1x6x series is a picosecond pulsed seed laser board integrated with 14-pin butterfly DFB laser module of QLD1x6x and QLA1x6x series. 50 ps optical pulse with stable single longitudinal mode can be obtained. Flexible and easy operation can be achieved with both external and internal trigger from single shot to 250MHz high repetition rate. All operation parameters including pulse peak current and laser diode temperature can be controlled by PC software via USB interface. Only single +5V power supply is required for the board operation
Picosecond pulsed seeder laser board
Specifications
| Output Power (avg): | 0.03 W |
|---|---|
| Wavelength: | 1.03 um |
| Pulse Duration: | 0.05 – 0.05 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
Download Data Sheet
Features
- 1 30-1180 nm DFB-LD/DFB-SOA LD integrated
- 5 ps gain-switched pulse generation
- > 30 mW peak power
- Internal / External clock operation
- Single shot to 250 MHz repetition rate
- Flexible parameter control via USB
- Plug and Play
Applications
- Pulsed seeder for fiber lasers
- Time resolved measurement
Frequently Asked Questions
How can the laser board be controlled?
All operation parameters including pulse peak current and laser diode temperature can be controlled by PC software via USB interface.
What accessories come with the laser board?
The laser board comes with a power cable (option: AC/DC adapter), USB cable, SMA-SMB conversion cable, and document CD-ROM (manual, application software).
What are the applications of the laser board?
The laser board can be used as a pulsed seeder for fiber lasers and for time resolved measurement.
What is the peak power of the laser board?
The laser board has a peak power of over 30 mW.
What is the QC2x1x6x series?
It is a picosecond pulsed seed laser board integrated with a 14-pin butterfly DFB laser module of QLD1x6x and QLA1x6x series.
