Description
• High Eciency / High Reliability
• Stable Output from -40°C to +85°C
• Single and Stacked Devices up to 100Watts
• 850nm and 905nm Wavelengths
• Hermetic Package

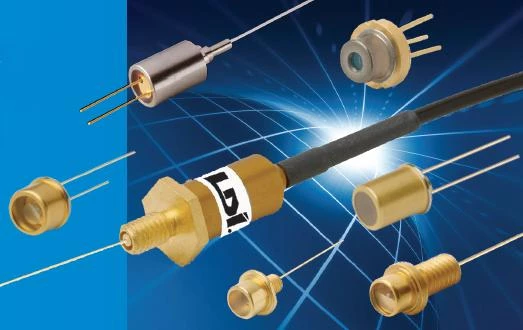

High Power Pulsed Laser Diodes
Specifications
| Output Power (avg): | 100 W |
|---|---|
| Wavelength: | 0.915 um |
| Pulse Duration: | 100 – 100 ns |
| Tuning Range Around Center Wavelength: | <= 200nm |
| Spectral Width: | 5 nm |
| Beam Spread: | 10 x35 degrees |
| Operating Temperature: | 49 – 85 °C |
| Peak If: | 2.6 – 25 Amps |
| Emitting Area Typical: | 40 x 1 - 381 x 406 um |
| Peak Power: | 2 - 100 Watts |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
Packages:
TO18C =TO18 Coax
TO18F =TO18 Non-Hermetic (bered)
TO18T =TO18 Twin Lead
TO5C =TO5 Coax
TOF5 =TO5 Non-Hermetic (bered)
TO5T =TO5 Twin Lead
90 =9mm
Applications
Rangefinder/Ceilometer
Weapons Simulation
Optical Fuses
Surveying Equipment
Frequently Asked Questions
What are the available wavelengths for the High Power Pulsed Laser Diodes?
The available wavelengths are 850nm and 905nm.
What is the maximum power output for the High Power Pulsed Laser Diodes?
The maximum power output is up to 100Watts for single and stacked devices.
What is the operating temperature range for the High Power Pulsed Laser Diodes?
The stable output is maintained from -40°C to +85°C.
What are the applications of the High Power Pulsed Laser Diodes?
The applications include rangefinder/ceilometer, weapons simulation, optical fuses, and surveying equipment.
What is the package type for the High Power Pulsed Laser Diodes?
The package types include TO18C, TO18F, TO18T, TO5C, TOF5, TO5T, and 90.
Got more questions? Use the inquiry form to ask the supplier directly.
