Description
QCED106G series is a 15-ps pulsed seed laser integrated with a compact driver board. Butterfly laser modules are QLD106G series, which employ semiconductor DFB laser diodes emitting at 1064 nm or 1030 nm and can generate ultra-short pulses of 15 ps under gain-switching operation with stable single longitudinal mode. All operating parameters such as bias currents, pulse voltages and laser diode temperatures can be easily controlled by GUI on PC through USB interface.

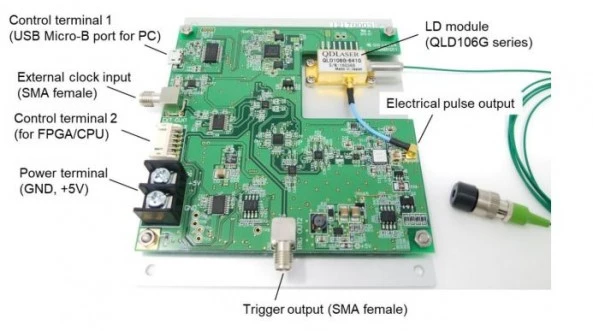

15-ps pulsed seed laser with driver board
Specifications
| Output Power (avg): | 0.05 W |
|---|---|
| Wavelength: | 1.064 um |
| Pulse Duration: | 0.015 – 0.015 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Ultra-short pulse width of 15 ps under gain-switching operation with a peak power of 50 mW
- Stable single mode operation at 1064 nm or 1030 nm
- Wide repetition rate tuning range ( 12 kHz to 200 MHz for internal clock )
- Easy parameter control by GUI on PC
Applications
- Pulsed seeder for fiber lasers
- Time resolved measurement
Frequently Asked Questions
How can the operating parameters of the QCED106G series laser be controlled?
The operating parameters of the QCED106G series laser can be easily controlled by GUI on PC through USB interface.
What are the applications of the QCED106G series laser?
The applications of the QCED106G series laser include pulsed seeder for fiber lasers and time-resolved measurement.
What is the peak power of the QCED106G series laser?
The peak power of the QCED106G series laser is 50 mW.
What is the pulse width of the QCED106G series laser?
The pulse width of the QCED106G series laser is 15 ps under gain-switching operation.
What is the tuning range of the repetition rate for the QCED106G series laser?
The tuning range of the repetition rate for the QCED106G series laser is 12 kHz to 200 MHz for internal clock.
Got more questions? Use the inquiry form to ask the supplier directly.
