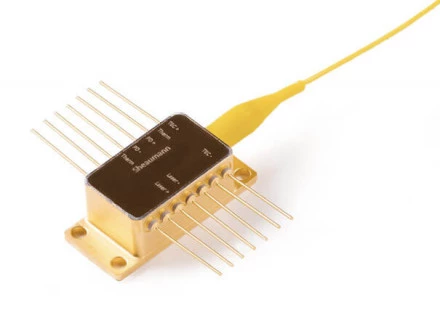

14 Pin Multimode 915nm - 1.5W Butterfly Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Sheaumann Laser, Inc. -
On FindLight:
since 2022
Description
The B Series Butterfly 915nm 1.5W laser diode is a sophisticated component designed for high-performance applications. Encased in a hermetically sealed package, this laser diode ensures reliability and longevity by protecting the internal components from environmental factors. The inclusion of an internal thermoelectric cooler (TEC), thermistor, and photodiode allows for precise temperature control and monitoring, which is crucial for maintaining optimal performance and extending the lifespan of the device.
One of the standout features of this laser diode is its electrically isolated design, which enhances safety and reduces the risk of electrical interference. The device is equipped with a 100μm core, 0.22 numerical aperture (NA) fiber, and a 1.0m output fiber, offering flexibility in integration with various systems. Additionally, the product provides numerous fiber and connector options, allowing for customization to meet specific application needs.
Operating at a wavelength of 915nm with a typical power output of 1.5W, this laser diode is engineered for continuous wave (CW) operation. It is important to note that the device is sensitive to electrostatic discharge (ESD), and proper precautions should be taken to prevent damage. Users are advised to wear an ESD wrist strap and ground all applicable work surfaces during handling. Furthermore, the device must be operated within the specified parameters to avoid potential failure or safety hazards.
Temperature management is critical for the B Series Butterfly laser diode, as device degradation can accelerate with increased temperatures. The specified case temperature range for continuous wave operation is -20°C to 50°C, and storage temperatures should be maintained between -40°C and 85°C. Proper heatsinking and cooling are essential to ensure the device operates within these limits and to maintain its warranty.
This laser diode is intended as a component of an electronic product and is not certified under IEC 60825-1 or 21 CFR 1040.10/21 CFR 1040.11 standards. It is subject to Export Administration Regulations (EAR), requiring a Destination Control Statement or End User Agreement for each sales order. Sheaumann offers a limited warranty for this product, and users are encouraged to review the Terms and Conditions for full details.
14 Pin Multimode 915nm - 1.5W Butterfly Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 1500 mW |
Features
- High Optical Power Output: Provides up to 1.5W CW at 915 nm for demanding applications.
- Integrated Thermal Control: Internal TEC and thermistor ensure reliable temperature regulation.
- Hermetically Sealed Package: Protects the diode and enhances long-term stability.
- Integrated Photodiode: Enables real-time monitoring and feedback for stable
- performance.
- Flexible Fiber Options: Standard 100 µm, 0.22 NA, 1.0 m output fiber with multiple connector options.
- Electrical Isolation: Designed for safe and versatile system integration.
Applications
- Laser Pumping: Ideal for pumping solid-state and fiber laser systems.
- Medical Applications: Suitable for therapeutic and surgical laser systems.
- Materials Processing: Supports welding, cutting, and other precision industrial uses.
- Research & Development: Reliable light source for laboratory and experimental setups.
- OEM Integration: Compact design and customizable fiber options for system manufacturers.
Frequently Asked Questions
The wavelength emission range is 780-1070nm.
Yes, the butterfly module can be customized for military applications with optional protection against damaging reverse currents.
The butterfly module includes an internal TEC (Thermoelectric Cooler), thermistor, and photodiode.
The maximum operating power is 1.5W and the maximum operating current is 2.2A.
Yes, it is important to avoid looking directly into the laser aperture when the device is in operation, and to use optical instruments with caution as they can increase eye hazard. Additionally, electrostatic discharge should be prevented to avoid device failure.
