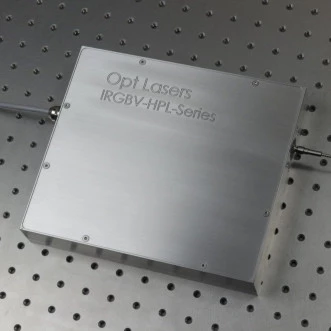

Customized IRGBV-HPL-Series Fiber Coupled Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2021
Description
The SW-Series Laser Systems from Opt Lasers deliver industry-leading visible and NIR power levels, fiber-coupled into multimode fibers with unmatched performance and flexibility. Designed for demanding industrial, research, and medical applications, the SW-Series is available in four product families: SW-LPL, SW-MPL, SW-HPL, and SW-FHPL, each tailored to specific power ranges and configurations.
Supporting a broad wavelength range from 405 nm to NIR (780–1064 nm), these systems provide single- or multi-wavelength output options with customizable power levels. With fiber-coupling into 400 μm / 0.22 NA SMA fibers (standard, with other options available), the SW-Series ensures stable, efficient light delivery.
Two configurations are offered: Touch Panel Systems with user-friendly control, integrated LD driver, PSU, TEC cooling, and safety features; and OEM Evaluation Kits, optimized for integration with external systems while maintaining high modulation bandwidth (>20 kHz, with >100 kHz option).
With customizable power and wavelength combinations—including multi-wavelength IRGBV versions—no other company offers comparable visible power levels in fiber-coupled systems. Built to order with typical lead times of 4–6 weeks, the SW-Series provides a reliable, scalable solution for advanced laser applications.
Customized IRGBV-HPL-Series Fiber Coupled Laser Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW), Modulated |
| Fiber Type: | Single Mode, Multi-Mode |
| Wavelength: | 450 nm |
| Output Power: | 2000 mW |
| Fiber Core Diamater: | 300 um |
| Wavelength: | 405nm, 450nm, 520nm, 638nm, 660nm, 808nm |
| Output Power: | up to 20W |
| Fiber Core: | 100um - 600um |
| Modulation Type: | Analog/TTL 0 - 5V |
Features
- Wide Wavelength Range: Available from 405 nm to NIR (780–1064 nm).
- Industry-Leading Power: Up to >30 W visible and >30 W NIR, fiber-coupled.
- Multiple Product Families: LPL, MPL, HPL, and FHPL options for different power levels.
- Multi-Wavelength Capability: IRGBV-Series enables up to 5 wavelengths simultaneously from a single fiber.
- Touch Panel Systems: Integrated PSU, TEC cooling, safety interlocks, and RS-232/UART communication.
- OEM Kits: Compact integration-ready platforms with analog/TTL modulation.
- Flexible Modulation: Standard >20 kHz, optional >100 kHz bandwidth.
- Customizable Configurations: Tailored power levels, wavelengths, and fiber types on request.
Applications
- Industrial Cutting and Engraving: The high power levels of the SW-Series Laser Systems make them ideal for precision cutting and engraving applications across various materials.
- Medical Applications: The customizable wavelengths and power levels allow for specialized medical applications, including surgical procedures and dermatological treatments.
- Scientific Research: The ability to combine multiple wavelengths and high power output is beneficial for advanced research in fields such as spectroscopy and photonics.
- Communications: The NIR wavelengths available are suitable for fiber optic communications and other telecommunication applications.
- Display and Projection Systems: The visible light laser systems can be used in high-definition display technologies and projection systems.
- Material Processing: The systems are suitable for applications such as welding, soldering, and other material processing tasks that require precise control and high power.
- Security and Defense: The high power and customizable features make these laser systems applicable in security and defense technologies, including target designation and range finding.
- Entertainment and Lighting: The ability to produce vibrant colors with high power makes these systems ideal for entertainment lighting and laser shows.
Frequently Asked Questions
The IRGBV-HPL-Series Fiber Coupled Laser Module is a high-power laser module that combines multiple wavelengths into a single multimode fiber.
The available wavelengths for the IRGBV-HPL-Series Fiber Coupled Laser Module are 405nm, 450nm, 520nm, and 638nm.
The output power of the IRGBV-HPL-Series Fiber Coupled Laser Module can go up to 20W.
The fiber core size ranges from 100um to 600um, and the fiber NA ranges from 0.15 to 0.22.
The IRGBV-HPL-Series Fiber Coupled Laser Module can be used for lighting and illumination, medical and therapeutics, and forensic applications.
