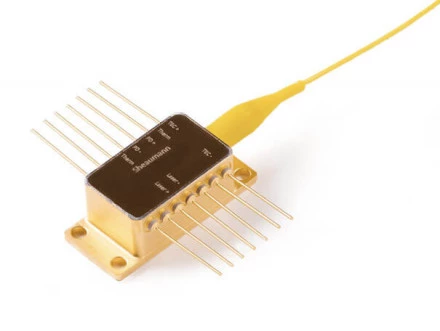

14 Pin Single-mode 808nm - 70mW Butterfly Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Sheaumann Laser, Inc. -
On FindLight:
since 2022
Description
Introducing our advanced 808nm 70mW laser diode, designed for precision and reliability in demanding applications. This laser diode is equipped with an internal Thermoelectric Cooler (TEC), thermistor, and photodiode, ensuring optimal performance and stability. The device is electrically isolated and housed in a hermetically sealed package, providing robust protection against environmental factors and enhancing its longevity.
The laser diode features a single-mode fiber with an FC/APC connector, facilitating seamless integration into your optical systems. Its compact B Series Butterfly package is engineered for efficient heat dissipation, ensuring consistent operation even under continuous wave (CW) conditions. The device operates at a typical wavelength of 808nm, delivering a reliable output power of 70mW, making it ideal for a variety of precision applications.
Safety and reliability are paramount, and this laser diode is designed with these principles in mind. It includes a thermistor for precise temperature monitoring and a TEC for maintaining optimal operating conditions. The device is built to withstand a range of temperatures, with a case temperature operating range from -20°C to 50°C and storage capabilities from -40°C to 85°C. However, it is crucial to handle the laser with care, adhering to electrostatic discharge (ESD) precautions to prevent damage.
Please note that operating the laser beyond specified limits may result in device failure or safety hazards. Proper heatsinking and cooling are essential to maintain device integrity and performance. This product is intended as a component of an electronic system and is not certified under IEC 60825-1 or 21 CFR 1040.10/21 CFR 1040.11 standards. Compliance with Export Administration Regulations (EAR) is required, and a Destination Control Statement or End User Agreement may be necessary for each sales order.
Our commitment to quality is reflected in the limited warranty offered for this product. For detailed terms and conditions, please refer to our official documentation. For further information or inquiries, please contact our sales team.
14 Pin Single-mode 808nm - 70mW Butterfly Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Single Mode |
| Wavelength: | 808 nm |
| Output Power: | 70 mW |
Features
- Integrated TEC & Thermistor: Provides precise temperature stabilization for wavelength and power control.
- Built-in Monitor Photodiode: Enables real-time power feedback and stable operation.
- Hermetically Sealed Package: Ensures durability and protection against environmental factors.
- Single-Mode Fiber Output: Delivers high beam quality with excellent optical coupling.
- FC/APC Connector: Minimizes back reflections for reliable optical performance.
- Electrically Isolated Design: Simplifies integration into complex systems.
Applications
- Spectroscopy: Provides stable 808 nm output for precise spectroscopic measurements.
- Medical Diagnostics: Supports applications requiring narrow linewidth and consistent output power.
- Optical Sensing: Ideal for fiberoptic sensing systems requiring stable CW operation.
- Industrial Laser Systems: Suitable for integration into compact OEM setups with high reliability.
- Fiberoptic Communications: Offers efficient coupling and low-noise performance for optical networks.
Frequently Asked Questions
The wavelength emission range of the laser module is 780-1070nm.
The laser module features internal TEC, thermistor, and photodiode. It is electrically isolated and hermetically sealed.
The maximum operating power of the laser module is 70mW.
Yes, the laser module can be customized for military applications with optional protection against damaging reverse currents.
When operating the laser module, avoid looking directly into the laser aperture as the laser light emitted is invisible and may be harmful to the human eye.
