Description
**Continuous Wave Room Temperature High Power QCL System** The Model 1101-XX-CW-YYYY represents a cutting-edge advancement in laser technology, offering a high-power, continuous wave, air-cooled mid-wave or long-wave infrared laser system. This system delivers over 4.0 W of continuous wave optical power, operating seamlessly at room temperature across wavelengths ranging from 3.7 µm to over 12 µm. One of the standout features of this system is its ability to function without the need for external chillers, thanks to its air-cooled design.

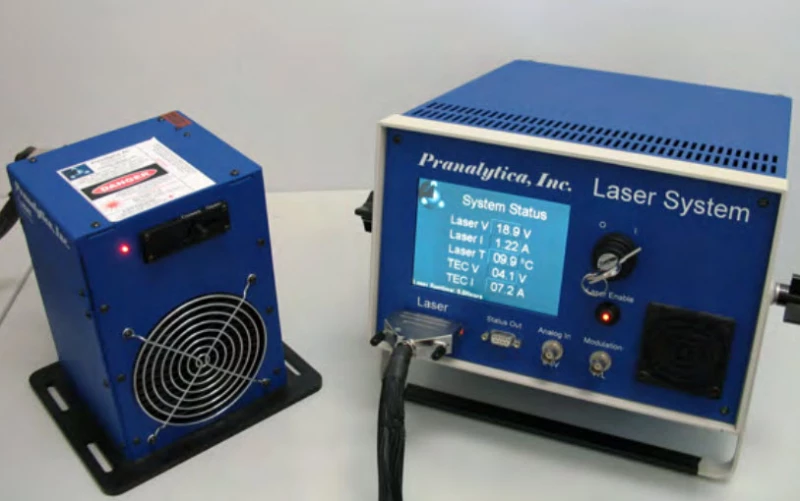

The complete system package includes the laser head and a matched power supply, ensuring a ready-to-use solution for various environments. Incorporating Pranalytica’s patented quantum cascade laser structure designs, the Model 1101-XX-CW-YYYY achieves high power and efficiency in continuous wave operation at room temperature. This is made possible through the use of unique composite submount materials that enhance thermal management. Additionally, the laser is equipped with Pranalytica’s proprietary high reflectivity facet coating technology, which ensures reliable performance even at high CW power levels. The laser head, thermoelectric cooler, and collimating optics are all housed within a hermetically sealed package, providing robust and trouble-free operation.
The Model 1101-XX-CW-YYYY is available in various power output versions to suit specific needs. The laser system nomenclature, such as Model 1101-40-CW-1000, indicates a CW/RT QCL system with a center wavelength of 4.0 µm and a power output of 1.0W. This flexibility in wavelength and power output makes it adaptable for a wide range of applications. The system’s output beam is nearly collimated, with a spot size of approximately 5 mm at the exit from the laser head, and exhibits minimal divergence and excellent pointing stability. With its linearly polarized output and nearly diffraction-limited beam quality, the Model 1101-XX-CW-YYYY stands out as a reliable and efficient solution for advanced laser applications.
CW Room Temperature High Power QCL System at 9.5um
Specifications |
|
|---|---|
| Center Wavelength: | 9.5 um |
| Output Power: | 2000 mW |
| Wavelength Range: | um |
| Output Power Range: | W |
Features
- High Power Continuous Wave Operation: Model 1101-XX-CW-YYYY provides up to > 4.0 W of continuous wave, room temperature (CW/RT) optical power, depending on the wavelength.
- Wide Wavelength Range: Operates at wavelengths from 3.7 µm to >12 µm, offering flexibility for various applications.
- Room Temperature Operation: No need for external chillers, as the system operates efficiently at room temperature.
- Air-Cooled System: Comes with an air-cooled laser head and a matched power supply, ready for use at the customer's location.
- Hermetically Sealed Package: Ensures trouble-free operation in real-world environments, with the laser, thermoelectric cooler, and collimating optics securely enclosed.
- Patented Quantum Cascade Laser Design: Incorporates Pranalytica’s unique quantum cascade laser structure for high power and efficiency.
- Advanced Thermal Management: Utilizes Pranalytica’s patented composite submount materials for improved thermal performance.
- High Reflectivity Facet Coating: Proprietary technology ensures high reliability and performance at high continuous wave power levels.
Applications
- Infrared Spectroscopy: Ideal for high-resolution spectroscopy across the mid-IR to long-IR bands.
- Directed Infrared Energy: Suitable for research and defense applications requiring high-power IR sources.
- Gas Sensing & Environmental Monitoring: Enables detection of trace gases with high sensitivity.
- Sensor and Detector Testing: Provides a stable, tunable IR source for calibration and performance validation.
Frequently Asked Questions
The Model 1101-XX-CW-YYYY laser system is a high power, continuous wave, air-cooled mid wave or long wave infrared laser system that provides up to > 4.0 W of continuous wave, room temperature (CW/RT) optical power depending on wavelengths from 3.7 µm to >12 µm.
The applications of the Model 1101-XX-CW-YYYY laser system include scientific, military, and medical fields.
The output power range of the Model 1101-XX-CW-YYYY laser system is from 0.5 W to 4.0 W depending on the center wavelength.
The Model 1101-XX-CW-YYYY laser system is air-cooled and operates at room temperature, requiring no external chillers.
The physical details of the Quantum cascade laser power supply include a size of 28 cm (W), 18 cm (H), and 37 cm (D) and a weight of 10 kg. It operates on 110/220 V, 4 A (max) and has optional modification available for operation from a single 28V DC with somewhat lower power consumption.
