Amonics - High Power Fiber Laser - AFL-1550-20-R

Amonics Limited
REQUEST QUOTE
Amonics - High Power Fiber Laser - AFL-1550-20-R

OVERVIEW

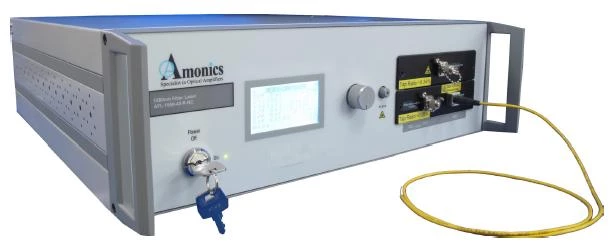

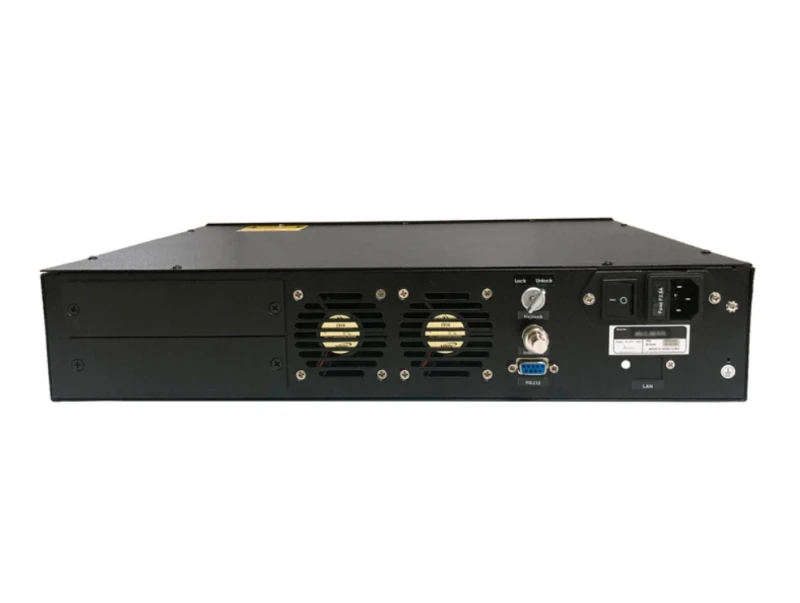

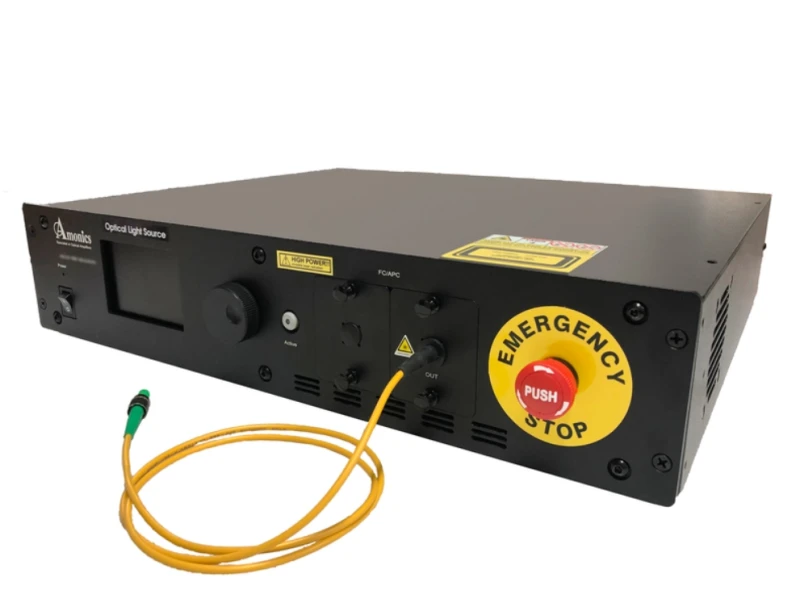

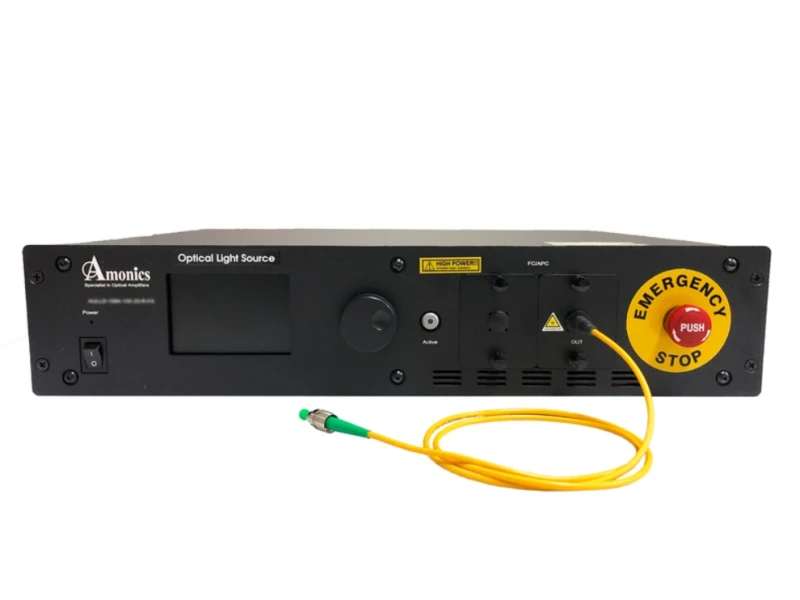

Amonics’ specialized fiber laser (AFL) series, is a compact standalone, turnkey equipment to deliver up to 30W output power and 1mJ pulse energy in 1064 nm and 1550 nm range in pulsed or CW operation. Based on proprietary all fiber design, Amonics fiber lasers are maintenance free. No after installation service is required.
In pulse operation, the laser delivers up to 20kW peak power with 10ns to 20ns adjustable pulse width. The pulse repetition rate can be triggered by external TTL signal.
Amonics fiber laser are ideal candidate for wide range industrial of applications.

SPECIFICATION

  • Wavelength: 1550 nm
  • Average Output Power: 20 W
  • Pulse Duration: 10 - 20 ns
  • Beam Quality (M^2): 1.1
  • Max Pulse Repetition Rate: 100 kHz
  • Fiber Output: Collimator or Bare Fiber
Download Data Sheet

Applications

- Micro-machining
- Marking
- Scribing
- Fiber Optic Sensing
- Research

KEY FEATURES

- CW and Pulse operation
- Up to 1mJ pulse energy
- 10 to 20ns tunable pulse width
- Up to 50W output power
- Optical feedback protection
- Back reflection monitoring
- Turnkey operation
- Maintenance free
- Linear polarization
- High reliability
- Two year warranty
