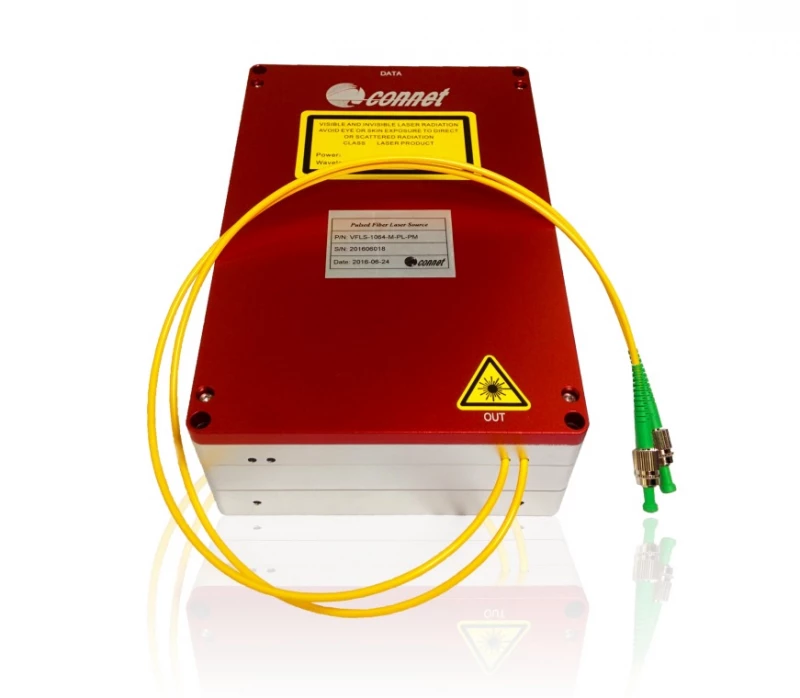

Thumbnail of CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR photo 1

Description

The CoLID-HP 1550nm short pulse fiber laser for LiDAR is a high-performance pulsed laser source designed specifically for LiDAR applications. It delivers high peak power and pulse energy, ensuring reliable and precise performance.

With its all-fiber design, this laser module offers robustness and maintenance-free operation. It is an ideal choice for LiDAR systems, range finding, 3D scanning, and fiber optic sensing applications.

CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Wavelength: 1550 nm
Average Output Power: 5 W
Pulse Duration: 1 – 250 ns
Beam Quality (M^2): 1.2
Max Pulse Repetition Rate: 3000 kHz
Output Power Stability (15mins): ±0.5 %
Output Power Stability (8hours): ±1 %
Peak Power: 30 kW
Output Isolation: 45 dB
Polarization: Random
Output: >0.3 m
Optical Connector: FC/APC or Collima
Trigger Mode: Internal or External TTL Tri
Output Fiber Typ: SM or LMA Fiber
Power Supply: 12-24 VDC
Communication Interface: RS232
Operating Temperature: -35 to +50 °C
Storage Temperature: -40 to +85 °C
Dimension: 200(L)X135(W)x41(H) mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High peak output: up to 30kW (typ.)
  • Adjustable pulse duration: 1~250ns
  • Diffraction-limited output beam
  • Maintenance-free operation
  • Compact and rugged design

Applications

  • LiDAR
  • Range Finding
  • Fiber Optic Sensing
  • 3D Airborne Laser Mapping
  • Atmosphere and Pollution Monitoring
  • Research & Development

Frequently Asked Questions

Is the pulse width adjustable for the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR?
Yes, the pulse width for the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR is adjustable from 1-250ns.
What applications is the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR suitable for?
The CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR is suitable for applications in LiDAR, range finding, 3D scanning, fiber optic sensing, and more.
What is the operating wavelength of the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR?
The operating wavelength of the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR is 1530-1561nm.
What is the output power stability of the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR?
The output power stability of the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR is 3% (measured under 25℃ after 30 minutes' warm-up).
What is the peak power of the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR?
The peak power of the CoLID-HP 1550nm Short Pulse Fiber Laser for LiDAR is up to 30kW (typical).

Got more questions? Use the inquiry form to ask the supplier directly.
