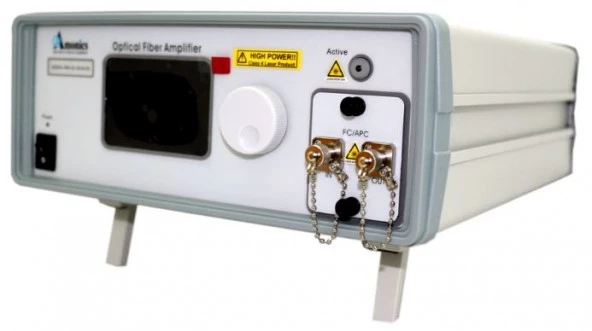

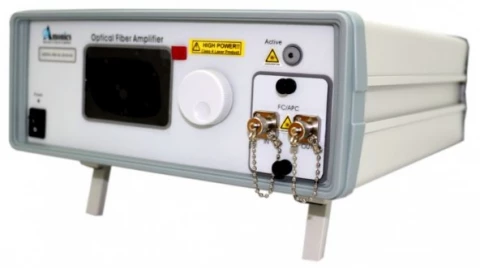

C-Band and Extended C-Band DWDM Erbium-Doped Fiber Amplifier AEDFA-C-EX-DWDM
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
C-Band and Extended C-Band DWDM Erbium-doped Fiber Amplifiers (EDFA) are among the premier offerings from Amonics, designed to meet the rigorous demands of modern optical communication systems. These amplifiers are engineered with high-power pump lasers and high-stability pump combiners, which are renowned for their robustness in high power boosting. The EDFAs are distinguished by their high output power and gain, coupled with an exceptionally low noise figure. This makes them an ideal choice for a variety of demanding applications, where reliability and performance are paramount.
The EDFAs are equipped with a turnkey microprocessor-controlled system, providing users with illustrative alarms and status indicators for enhanced monitoring. An integrated RS232 computer interface allows for straightforward control, diagnostic functions, and data acquisition. This functionality ensures that users can maintain optimal performance with ease. Available in both benchtop and rackmount casings, these amplifiers offer flexibility in deployment to suit different operational environments.
Manufactured under an ISO 9001:2008 certified quality management system, the C-Band and Extended C-Band DWDM EDFAs exemplify Amonics' commitment to quality and excellence. This certification, applicable to the Hong Kong production site, underscores the rigorous standards adhered to during the manufacturing process. With customizable options to accommodate a wide range of input signal levels, these EDFAs are built to deliver consistent and reliable performance, making them a valuable asset in any optical communication setup.
C-Band and Extended C-Band DWDM Erbium-Doped Fiber Amplifier AEDFA-C-EX-DWDM
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1528 – 1567 nm |
| Max Output Power: | 22 dBm |
| Nominal Gain: | 30 dB |
| Output Fiber Type: | SMF-28 |
Features
- Turnkey Device: Designed for ease of use with a microprocessor-controlled system, providing illustrative alarms and status indicators.
- High Output Power: Equipped with high-power pump lasers for robust performance in high power boosting applications.
- High Gain: Offers high gain performance, customizable to accommodate a wide range of input signal levels.
- Low Noise Figure: Ensures minimal noise interference, ideal for demanding optical communication applications.
- RS232/Ethernet Computer Interface: Integrated RS232 and optional Ethernet interface for easy control, diagnostic functions, and data acquisition.
- Highly Reliable and Durable: Built with high-stability pump combiners, ensuring long-lasting performance and reliability.
- Flexible Casing Options: Available in both benchtop and rackmount casings to suit different installation environments.
- ISO 9001:2008 Certified: Manufactured under a certified quality management system, ensuring the highest standards of production quality.
- Customizable Optical Connectors: Supports various optical connectors including FC/APC, FC/UPC, SC/APC, and SC/UPC.
- Comprehensive Protection: Features a key-lock switch, BNC interlock key, and pump laser (TEC) overheat protection for enhanced safety.
Applications
- DWDM Systems: Ideal for amplifying dense wavelength division multiplexing networks with minimal noise and high gain.
- SONET/SDH Networks: Enhances signal strength and system reliability in telecommunication infrastructures.
- Optical Communication Links: Supports long-haul and metro networks requiring stable amplification.
- Fiber Optic Sensing Systems: Ensures reliable operation in distributed sensing and monitoring applications.
Frequently Asked Questions
Amonics' specialty product is C-band Erbium-doped Fiber Amplifiers (EDFA).
Amonics' EDFAs have gain flattening filtering, APC or AGC control mode, input power monitoring, and are available in bench-top or 19" rack-mount housing.
Amonics' EDFAs are ideal for DWDM applications, SONET/SDH systems, optical communications, fiber optic sensing, booster, in-line, pre-amp, and scientific applications.
Amonics' product is manufactured under an ISO 9001:2008 certified quality management system.
The specifications of AEDFA-C-EX-DWDM-22 are saturation output power of +22dBm, wavelength range of 1528-1567nm, gain of 21-30dB, input power range of +1 to -8dBm, and gain flatness (peak to peak).
