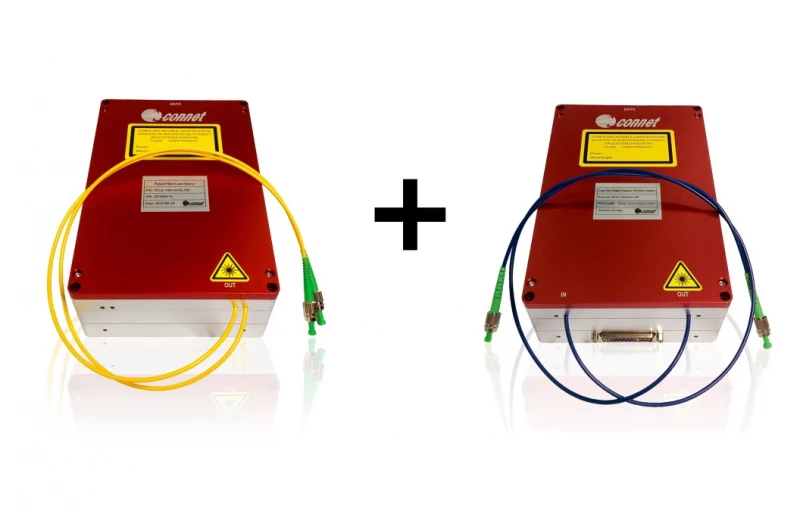

Connet CoLIS-MP 1550nm Long Pulse Single Frequency PM Fiber Laser

Name: Connet CoLIS-MP 1550nm Long Pulse Single Frequency PM Fiber Laser
Brand: Connet Laser Technology Co., Ltd.
Availability: InStock

Description

The Connet CoLIS-MP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser is a modularized pulsed fiber laser designed for medium-distance coherent Doppler wind LiDAR applications.

Operating at an eye-safe wavelength, this laser delivers single-mode linear polarization with an impressive single-pulse energy of up to 50uJ.

Specifications

Amplifier Type:	EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range:	1545 – 1565 nm
Min Input Power:	Not Specified
Max Output Power:	Not Specified
Nominal Gain:	Not Specified
Output Fiber Type:	PM1550-XP
Peak Power:	200 W
Pulse Energy:	40 uJ
Average Powe:	0.55 W
Linewidth (Seed Laser):	10 kHz
Pulse Width:	200 ns
Repetition Rate:	20 kHz
Beam Quality:	1.05 M2
Pulse On-off Ratio (ER Square Wave):	100 dB
Polarization Extinction Ratio:	23 dB
Output Power Stability (8hrs):	±0.5 %
Output Isolation:	35 dB
Power Supply:	12-24 VDC
Operating Temperature:	-20 to +50 ℃
Storage Temperature:	-40 to +85 ℃
Output Fiber Length:	>0.5 m
Optical Connector:	FC/APC or other optional
Output Power Of Intrinsic Light:	-1 mW
Dimensions:	200x135x55 mm

Download Data Sheet

Features

Eye-safe Wavelength: 1550nm
Single Pulse Energy: up to 50uJ
Adjustable Repetition Rate: 5-20kHz
Pulse Width: 100-1000ns
Excellent Beam Quality: M2<1.1
High Polarization Extinction Ratio (PER)
Cascaded acousto-optic modulator (AOM) for high turn-off ratio
Optional built-in circulator
Output power stability: ±0.5% (8hrs)
Wide operating temperature range: -20℃ to +50℃
Output fiber type: PM1550-XP
Output fiber length: >0.5m
Optical connector: FC/APC or other optional

Applications

Coherent Doppler Wind LiDAR
Environmental Monitoring
Pollution Monitoring
Other Scientific Research

Name

Work Email

Organization (recommended)

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Connet Laser Technology Co., Ltd.

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the applications of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser?

The applications of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser include coherent Doppler wind LiDAR, environmental monitoring, pollution monitoring, and other scientific research.

What is the adjustable repetition rate of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser?

The adjustable repetition rate of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser is 5-20kHz.

What is the operating wavelength of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser?

The operating wavelength of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser is 1550nm.

What is the polarization extinction ratio (PER) of the output of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser?

The Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser can achieve high polarization extinction ratio (PER) output.

What is the single pulse energy of the output laser of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser?

The single pulse energy of the output laser of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser is up to 150uJ.
