Description

The MARS series 1.5um high power pulsed fiber amplifiers of Connet are eye-safe amplifiers. The optical path structure is optimized according to the short pulse signal amplification to efficiently suppress the generation of ASE. This series of amplifiers employ the high-power, high-performance multi- mode pump lasers inside. The proprietary technology and the peculiar devices guarantee the maximum optical-optical conversion efficiency and the minimum nonlinear effects during the process of amplification.

The unique thermal treatment technology guarantees that the amplifiers can be operated stably for a long time. The high-speed response protection circuit monitors the power of the input and the output signals automatically to ensure the safety of the whole system.

The MARS series high power pulsed fiber amplifiers include the single-mode and the polarization-maintaining outputs. Different types of packages are available for option such as benchtop, rack-mount and module. This series of amplifiers can be widely used in the areas of optical fiber communication, coherent combination and sensing, etc.

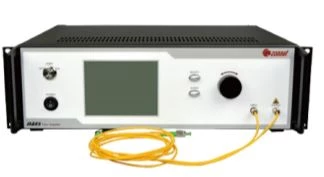

1.5um High Power Pulsed Fiber Amplifier

Specifications

Amplifier Type: YDFA - Ytterbium-Doped Fiber Amplifier
Wavelength Range: 1530 – 1561 nm
Min Input Power: Not Specified
Max Output Power: Not Specified
Nominal Gain: Not Specified
Output Fiber Type: Not Specified

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High output peak power: up to 30kW
  • Short pulse amplification: 10ns/1MHz
  • High stability, high reliability
  • High optical-to-optical efficiency
  • Output power tunable
  • Customized versions available

Applications

  • Optical fiber communication
  • Free space communication
  • Atmosphere monitoring
  • Environment monitoring
  • Research & Development

Frequently Asked Questions

What is the average power of the amplifier?
The average power is not specified in the datasheet.
What is the maximum peak power of the amplifier?
The maximum peak power is 30kW.
What is the polarization extinction ratio (PER) of the amplifier?
The PER is between 17dB and 20dB.
What is the wavelength range of the MARS series 1.5um high power pulsed fiber amplifiers?
The wavelength range is from 1530nm to 1561nm.
What types of packages are available for the MARS series high power pulsed fiber amplifiers?
Different types of packages are available such as benchtop, rack-mount, and module.

Got more questions? Use the inquiry form to ask the supplier directly.
