Description

Connet MARS series L-band high power optical fiber amplifier is integrated with high power and high property multi-mode pumps, plus the double cladding fiber amplifying technology and the optimized optical structure design to realize the output power up to 5W. It has built-in laser current driver, high accuracy ATC & ACC (APC) driver electronics controller and the excellent LCD display interface in Turn-key benchtop package to realize the high stable output.

With the extensive experience in handling the double cladding fiber, Connet conducts the proper optimal optical structure design to the high power fiber amplifier to achieve the high efficiency output. The high-speed response protection circuit monitors the power of the input and the output signals automatically so that it can cut off the operation of the high power pump in case of the falling off of the input signal to ensure the safety of the whole system.

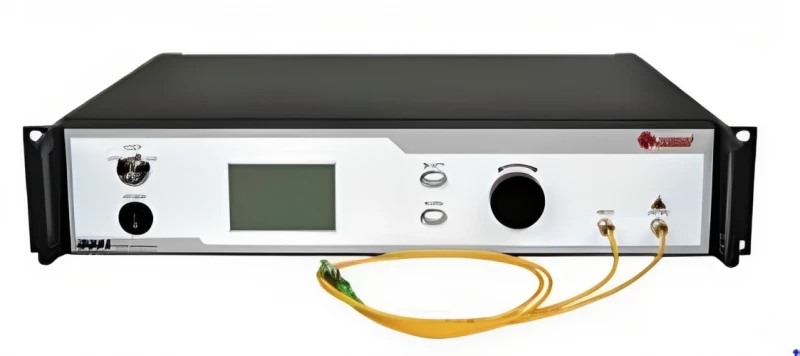

L-band High Power Optical Fiber Amplifier

Specifications

Amplifier Type: Not Specified
Wavelength Range: 1575 – 1602 nm
Min Input Power: -3 dBm
Max Output Power: Not Specified
Nominal Gain: Not Specified
Output Fiber Type: Single Mode

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High output power: up to 5W
  • Low noise figure
  • High stability, high reliability
  • LCD display interface

Applications

  • Non-linearity research
  • High power amplifying
  • Fiber optic sensing
  • Optical fiber communication
  • Research & development

Frequently Asked Questions

What is the input/output isolation of the amplifier?
The input/output isolation of the amplifier is 30 dB.
What is the maximum output power of Connet MARS series L-band high power optical fiber amplifier?
The maximum output power of Connet MARS series L-band high power optical fiber amplifier is up to 5W.
What is the noise figure of the amplifier?
The noise figure of the amplifier is less than 6 dB.
What is the operating temperature range of the amplifier?
The operating temperature range of the amplifier is 0-50℃.
What type of fiber optic sensing applications can the amplifier be used for?
The amplifier can be used for fiber optic sensing applications.

Got more questions? Use the inquiry form to ask the supplier directly.
