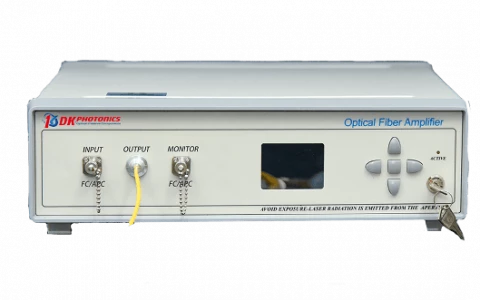

Thumbnail of High-Power Polarization Maintaining EDFA for C-band photo 1

Description

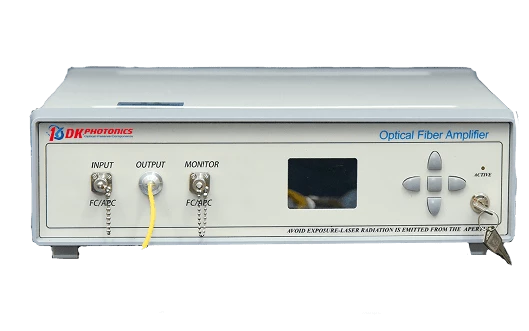

High-Power Polarization Maintaining EDFA for C-band – DK-XS-DT-006-A/2

The DK-XS-DT-006-A/2 is a high-power polarization maintaining erbium-doped fiber amplifier (EDFA) designed specifically for C-band applications, covering the 1540~1565nm wavelength range. Leveraging advanced multi-stage optical amplification and robust thermal management, this amplifier delivers exceptional output power while maintaining the polarization state of the input signal. Its all-polarization-maintaining (PM) design ensures high extinction ratio and minimal polarization mode dispersion, making it ideal for demanding optical systems where signal integrity is paramount.

This EDFA stands out for its ability to provide saturated output powers up to 40dBm, with a low noise figure (<6dB) and excellent gain flatness (3dB). The use of PM1550-XP panda fiber further enhances its polarization performance, ensuring reliable and stable operation in critical applications. The amplifier is available in both module and desktop configurations, offering flexibility for integration into various system architectures. Control options include automatic current control (ACC) and automatic power control (APC), with user-friendly interfaces such as RS232 or button control, depending on the model.

Designed for high-performance fiber optic communication, fiber lasers, and advanced fiber sensor systems, the DK-XS-DT-006-A/2 meets the rigorous demands of modern photonics applications. Its high input/output isolation (>35dB) and low polarization mode dispersion (<0.5ps) ensure superior signal quality, while the robust construction supports reliable operation across a wide temperature and humidity range. This makes it a preferred choice for research laboratories, industrial environments, and telecommunication networks requiring high-power, polarization-maintaining amplification in the C-band.

High-Power Polarization Maintaining EDFA for C-band

Visit the DK Photonics Store

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1540 – 1565 nm
Min Input Power: 6 dBm
Max Output Power: 40 dBm
Nominal Gain: 3 dB
Output Fiber Type: Not Specified
Wavelength Range: 1540~1565 nm
Input Power: -6~+10 dBm
Saturated Output Power: 30/33/37/40 dBm
Noise Figure: <6 dB
Gain Flatness: 3 dB
PER: 23 dB (Type), 20 dB (Min)
Polarization Mode Dispersion: <0.5 ps
Input/output Isolation: >35 dB
Fiber Type: PM1550-XP panda, 1.0m length
Optical Connector: FC/APC or Fiber collimator
Control Mode: Automatic current control (ACC) / Automatic power control (APC)
Power Supply (Desktop): 100~240V AC, <150W
Power Supply (Module): 12V DC, <60W
Dimensions (BA30/33dBm, Desktop): 260(W)×320(D)×120(H) mm
Dimensions (BA37/40dBm, Desktop): 360(W)×350(D)×120(H) mm
Dimensions (Module): 125(W)×150(D)×30(H) mm
Operation Temperature Range: -5~+55°C
Operation Humidity Range: 0~70%

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength Range: 1530–1565 nm
  • Input Power Range: -6 to +10 dBm
  • Saturated Output Power Options: 27/30/33/37/40 dBm (@ -3 dBm input)
  • Noise Figure: <6 dB (@ -3 dBm input)
  • Gain Flatness: 3 dB
  • Polarization Dependent Gain: <0.5 dB
  • Polarization Mode Dispersion: <0.5 ps
  • Input/Output Isolation: 35 dB
  • Fiber Type: PM1550, 1.0 m length
  • Connector Type: FC/APC or Fiber Collimator (FC/APC only for low power test)
  • Control Modes: Automatic Current Control (ACC) / Automatic Power Control (APC)
  • Control Interface: Button or RS232 (DB9 Female)
  • Power Supply: Desktop: 100–240V AC, <150W, Module: 12V DC, <60W
  • Dimensions: Desktop (27/30/33 dBm): 260(W)×320(D)×120(H) mm, Desktop (35/37/40 dBm): 360(W)×350(D)×120(H) mm, Module (27/30/33 dBm): 125(W)×150(D)×30(H) mm
  • Operating Temperature Range: -5 to +55°C
  • Operating Humidity Range: 0–70%

Applications

  • Optical Fiber Communication Systems
    Enhance signal strength and transmission distance in long-haul and metro fiber optic networks, including DWDM, CATV, and high-speed data links.
  • Fiber Lasers and Laser Systems
    Serve as a preamplifier or booster amplifier in high-power fiber laser setups for industrial, medical, and scientific applications.
  • Fiber Optic Sensing
    Amplify weak signals in distributed fiber optic sensor systems such as Distributed Temperature Sensing (DTS), Distributed Acoustic Sensing (DAS), and strain sensing.
  • Quantum Communication and Quantum Key Distribution (QKD)
    Provide low-noise, high-extinction ratio amplification for secure quantum communication networks.
  • Coherent Optical Communication
    Support advanced modulation formats and polarization multiplexing in coherent transmission systems.
  • Optical Test and Measurement
    Boost optical signals in laboratory and production test setups, including optical time-domain reflectometry (OTDR) and spectrum analysis.
  • Free-Space Optical Communication (FSO)
    Increase signal power for long-distance free-space optical links and ground-to-satellite communication.
  • Optical Amplification in LIDAR Systems
    Enhance return signal strength in fiber-based laser radar (LIDAR) for remote sensing, mapping, and autonomous vehicles.
  • Research and Development
    Ideal for academic and industrial R&D in photonics, nonlinear optics, and advanced fiber optic technologies.
  • Microwave Photonics
    Amplify optical carriers in systems that integrate microwave and optical signal processing.
  • Satellite and Space Communication
    Used in ground stations and satellite payloads for robust, high-power optical signal transmission.
  • Polarization-Sensitive Applications
    Maintain polarization for applications requiring high polarization extinction ratio, such as interferometry and polarization-encoded data transmission.

Frequently Asked Questions

What is the High-Power Polarization Maintaining EDFA for C-band?
The High-Power Polarization Maintaining EDFA for C-band is an erbium-doped fiber amplifier designed to amplify optical signals in the 1540–1565nm wavelength range. It features all-polarization maintaining (PM) designs, high output power, high gain, and low noise, making it ideal for applications such as fiber communications, fiber lasers, and fiber sensors.
What are the key features of DK Photonics' C-band PM EDFA?
Key features include all-PM fiber design, high output power options (30/33/37/40 dBm), high gain, low noise figure (
What applications are suitable for the High-Power PM EDFA?
This amplifier is suitable for fiber optic communications, fiber lasers, fiber sensors, and laser radar systems. Its high power and polarization maintaining capabilities make it ideal for advanced photonics and research applications requiring stable and high-quality signal amplification.
How do I select the right model and customize the DK Photonics PM EDFA?
To select the right model, specify the operation wavelength (C-band), amplifier type (high power BA), desired output power (30/33/37/40 dBm), fiber type (PM1550-XP panda), and package type (module or desktop). For custom specifications, provide detailed requirements when inquiring to ensure the amplifier meets your application needs.
What are the control and interface options for this EDFA?
The desktop version offers button control, while the module version supports RS232 communication with an optional DB9 female interface. Control modes include automatic current control (ACC) and automatic power control (APC) for stable and reliable operation.
What are the power supply and environmental requirements?
The desktop version operates on 100–240V AC (
How does the DK Photonics PM EDFA compare to similar products?
Compared to similar C-band PM EDFAs on the market, DK Photonics' model offers competitive high output power, excellent polarization extinction ratio, low noise, and flexible packaging and control options. Its robust design and customization capabilities make it suitable for demanding applications in research and industry.
