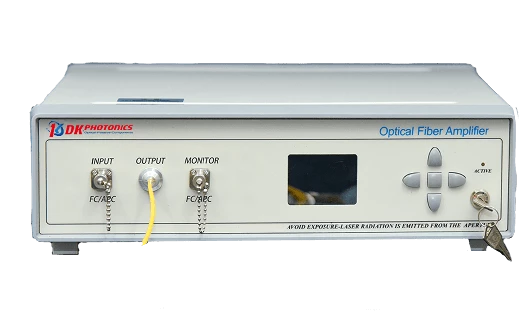

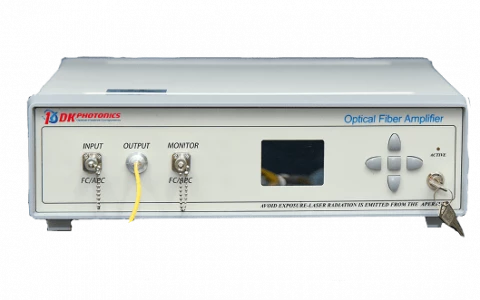

High Power Single-Mode Erbium-doped Fiber Amplifier for C-band

Name: High Power Single-Mode Erbium-doped Fiber Amplifier for C-band
Brand: DK Photonics
Availability: InStock

Description

The High Power Single-Mode Erbium-Doped Fiber Amplifier (EYDFA-HP) is engineered to deliver robust optical amplification within the 1540–1565 nm wavelength range. Utilizing a unique multi-stage optical amplification design and reliable high-power laser heat dissipation technology, it achieves high-power output with low noise characteristics. This amplifier is ideal for applications in fiber optic communication systems, fiber lasers, and fiber sensors, where high output power and signal integrity are paramount.

Specifications

Amplifier Type:	EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range:	1540 – 1565 nm
Min Input Power:	Not Specified
Max Output Power:	40 dBm
Nominal Gain:	3 dB
Output Fiber Type:	Not Specified

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wavelength Range: 1540–1565 nm
Input Power: -6 to +10 dBm

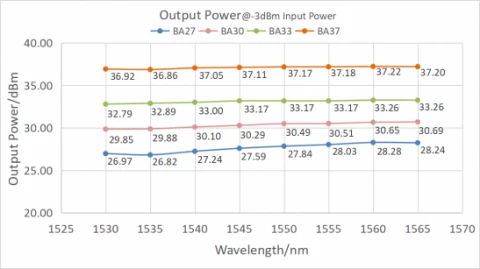

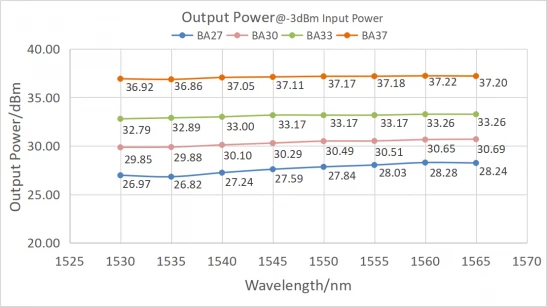

Saturated Output Power Options: 27/30/33/35/37/40 dBm (@ -3 dBm input)
Noise Figure: <6 dB (@ -3 dBm input)
Gain Flatness: 3 dB
Polarization Dependent Gain: <0.5 dB
Polarization Mode Dispersion: <0.5 ps
Input/Output Isolation: >35 dB
Fiber Type: SMF-28, 1.0 m length
Connector Type: FC/APC or Fiber Collimator (FC/APC only for low power test)
Control Modes: Automatic Current Control (ACC) / Automatic Power Control (APC)
Control Interface: Button or RS232 (DB9 Female)
Power Supply: Desktop: 100–240V AC, <150W, Module: 12V DC, <60W
Dimensions: Desktop (27/30/33 dBm): 260(W)×320(D)×120(H) mm, Desktop (35/37/40 dBm): 360(W)×350(D)×120(H) mm, Module (27/30/33 dBm): 125(W)×150(D)×30(H) mm
Operating Temperature Range: -5 to +55°C
Operating Humidity Range: 0–70%

Applications

Fiber Optic Communication Systems
Fiber Lasers
Fiber Sensors

Name

Work Email

Organization (recommended)

Your message to supplier

Ships from:

China

Sold by:

DK Photonics ✓ Verified Supplier

On FindLight:

since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the wavelength range of the High Power Single-Mode Erbium-doped Fiber Amplifier?

The wavelength range of the amplifier is 1540~1565nm.

What are the advantages of the High Power Single-Mode Erbium-doped Fiber Amplifier?

The amplifier has the advantages of high power and low noise.

What are the applications of the High Power Single-Mode Erbium-doped Fiber Amplifier?

The amplifier can be used for fiber communications, fiber lasers, and fiber sensors.

What is the output power range of the amplifier?

The output power range of the amplifier is 27/30/33/35/37/40 dBm.

What is the control mode of the amplifier?

The amplifier has automatic current control (ACC) and automatic power control (APC) modes.

Can the amplifier be customized for specific requirements?

Yes, DK Photonics offers customization options for various parameters, including output power levels, fiber types, connector types, and control interfaces. Please contact their sales team with your specific requirements.
