Description
Our High Power Full C-Band EDFA is a testament to our commitment to quality and innovation. Manufactured under a HKQAA ISO 9001 certified quality management system, this product represents the pinnacle of optical amplification technology. Please note that the ISO 9001:2015 certification is exclusive to our Hong Kong production site, ensuring that each unit meets the highest standards of production excellence.
The High Power Full C-Band EDFA is designed to meet the demands of modern optical communication systems. It offers unparalleled performance in applications such as free space communications, coherent beam combining, and detection systems. With its linearly polarized output and high polarization extinction ratio in the PM version, this EDFA guarantees superior signal quality and reliability. Its compact design is available in both a benchtop configuration and a 19” rackmount, making it adaptable to various operational environments.

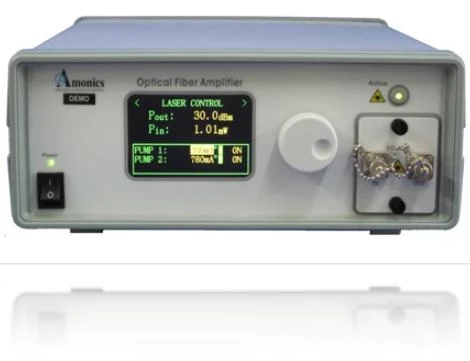

Ease of use is at the forefront of this product's design, featuring a user-friendly front panel with an LCD monitor display, key switch, power adjust control knob, and optical connectors. Additionally, it is equipped with a RS232 or Ethernet computer interface, allowing for seamless integration into existing systems. The High Power Full C-Band EDFA is not only a turnkey solution but also a future-proof investment in high-performance optical amplification.
C-Band Polarization Maintaining EDFA - AEDFA-PM-C-27
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1529 – 1564 nm |
| Max Output Power: | 27 dBm |
| Polarization Extinction Ratio: | 20 db |
Features
- Full C-Band Coverage: Operates from 1528 nm to 1565 nm for broad optical amplification applications.
- High Output Power: Provides minimum +27 dBm up to +33 dBm saturation output power.
- Low Noise Figure: Typical noise figure of 5.5 dB ensures clean signal amplification.
- High Polarization Extinction Ratio (PM Version): Maintains signal integrity with typical PER of 20 dB.
- User-Friendly Design: Equipped with LCD monitor, key-lock switch, and control knob for ease of operation.
- Flexible Control Options: Supports ACC and optional APC control modes with RS232 and Ethernet interfaces.
- Robust Protection: Includes pump laser overheat warning and pump power protection for safe operation.
- Multiple Configurations: Available in benchtop and 2U rackmount casing with various connector types.
Applications
- Optical Communication Systems: Ideal for enhancing signal strength in long-haul and metro networks.
- SONET/SDH Systems: Supports high-capacity telecommunication infrastructure with reliable amplification.
- CATV Networks: Ensures stable and high-quality optical signal delivery for cable TV systems.
- Fiber Optic Sensing: Suitable for distributed sensing and monitoring applications requiring high gain.
- Laboratory Use: Reliable benchtop instrument for research, testing, and development in photonics.
Frequently Asked Questions
The AEDFA-CPM-27 is used for various applications including free space communications, coherent beam combining, and detection system.
The output light has a high polarization extinction ratio.
The AEDFA-CPM-27 comes with a compact turnkey bench-top or 19” rack-mount instrument housing.
The AEDFA-CPM-27 is equipped with a RS232 or Ethernet computer interface.
The AEDFA-CPM-27 is suitable for SONET/SDH System, Optical Communication, Fiber Optic Sensing, CATV, and Laboratory applications.
