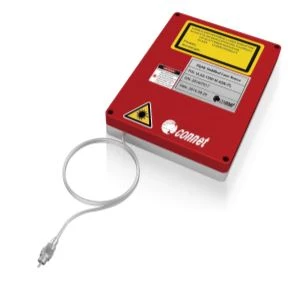

CoSF-R-TM-M Single Frequency Fiber Laser Module
OVERVIEW
Connet CoSF-R optimized traveling wave cavity ultra-narrow linewidth single-frequency fiber laser is a low-noise ultra-narrow linewidth fiber laser independently developed by patented technology. CoSF-R singlefrequency fiber laser uses a unique "optimized traveling wave cavity" The design eliminates the standing wave space hole burning phenomenon which is easy to occur in the linear cavity fiber laser. In conjunction with the ultra-narrow bandwidth fiber filter designed by
Connet, the single longitudinal mode output is selected and the single frequency operation of the fiber laser is guaranteed. The polarization control technology eliminates the polarization hole burning effect based on the all-fiber design, thereby achieving stable linear polarization, single longitudinal mode, and ultra-narrow linewidth single-frequency laser output.
CoSF-R ultra-narrow linewidth single-frequency fiber laser has excellent performance, the linewidth is far less than 1kHz, and has ultra-low phase noise and frequency noise. The ultra-long laser cavity design makes the overall noise level of CoSF-R significantly lower than other commercial short-cavity single frequency lasers. CoSF-R-TM-M works in the 1.9-2.0um band, and the output power of the basic module is optional from 5mW to 200mW. Higher output power products can be provided on request. The standard wavelength includes 1908nm, 1940nm, 1950nm, 1960nm, and the optional wavelength.
SPECIFICATION
- Wavelength: 1900-2090 nm
- Output Power: 0.2 W
- Beam Quality (M^2): 1.1
- Operation Mode: Continuous Wave (CW)
Applications
Distributed optical fiber sensing
Coherent LiDAR
Fiber optic hydrophone
Laser spectroscopy
Coherent communication
Gas absorption measurement
Cold atomic physics
Other scientific research
KEY FEATURES
Ultra-narrow linewidth <<1kHz
Ultra-low phase noise and frequency noise
Low relative intensity noise (RIN)
Stable single frequency, single polarization output
No mode-hopping
Small sized package 175x130x29mm
High reliability
