Description

Connet CoSF-D narrow linewidth single frequency fiber laser is a low-noise fiber laser independently developed by patented technology. It adopts the Distributed Feedback Bragg Grating (DFB) type fiber laser technology and has independent intellectual property to achieve stable linear polarization, single longitudinal mode and ultra-narrow linewidth single-frequency laser output. The unique Relative Intensity Noise (RIN) suppression technique guarantees the low noise operation of the CoSF-D narrow linewidth single frequency fiber laser.

Connet CoSF-D narrow linewidth single frequency fiber laser has excellent performance with the output optical spectrum linewidth of kHz level, the ultra-low frequency noise and intensity noise and the output optical signal noise ratio (OSNR) to be greater than 50dB.

CoSF-D-HP1 high power narrow linewidth single frequency fiber laser internally adopts MOPA design, based on CoSF-D basic module, integrates low noise fiber amplifier and high power double-clad Er/Yb co-doped fiber amplifier to achieve the output power up to 2W. For higher output power, please refer to the technical specifications of CoSF-D-ER-B-HP2/HP3.

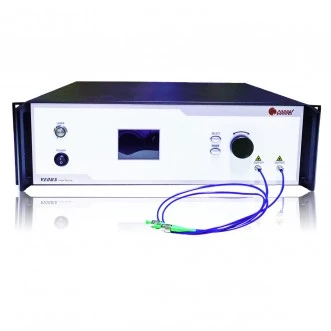

1.5um CoSF-D High Power Narrow Linewidth Single Frequency Fiber Laser (HP1)

Specifications

Center Wavelength: 1530 nm
Output Power: 0.3 W
Output Mode: Continuous Wave (CW)
Beam Quality (M^2): 1.1
Spectral Linewidth: Not Specified
Output Power Stability: 0.9% ~ 1.0%
Output Fiber Type: PMF
Output Fiber Length: 1 m
Interface: Other / Not-specified
Cooling: Air Cooled
Electrical Requirements: 110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Ultra-narrow linewidth
  • Stable single-frequency & single polarization operation
  • No mode hopping, No bursting noise
  • Low phase noise and low relative intensity noise
  • Flexible design, multiple wavelengths optional
  • Linear polarization output, high PER

Applications

  • Optical fiber sensing
  • LiDAR
  • Microwave photonics
  • Cold atom physics
  • Laser spectroscopy
  • Coherent communication
  • Other scientific research

Frequently Asked Questions

What applications is the CoSF-D narrow linewidth single frequency fiber laser suitable for?
The CoSF-D narrow linewidth single frequency fiber laser is suitable for applications such as optical fiber sensing, LiDAR, microwave photonics, cold atom physics, laser spectroscopy, coherent communication, and other scientific research.
What is the Connet CoSF-D narrow linewidth single frequency fiber laser?
The Connet CoSF-D narrow linewidth single frequency fiber laser is a low-noise fiber laser that has stable linear polarization, single longitudinal mode, and ultra-narrow linewidth single-frequency laser output.
What is the output power of the CoSF-D-HP1 high power narrow linewidth single frequency fiber laser?
The CoSF-D-HP1 high power narrow linewidth single frequency fiber laser can achieve an output power of up to 2W.
What is the Relative Intensity Noise (RIN) suppression technique used in the CoSF-D narrow linewidth single frequency fiber laser?
The unique Relative Intensity Noise (RIN) suppression technique guarantees the low noise operation of the CoSF-D narrow linewidth single frequency fiber laser.
What is the wavelength thermal tuning range of the CoSF-D narrow linewidth single frequency fiber laser?
The wavelength thermal tuning range of the CoSF-D narrow linewidth single frequency fiber laser is not specified in the product description.

Got more questions? Use the inquiry form to ask the supplier directly.
