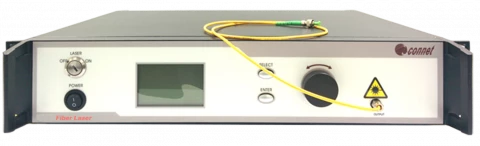

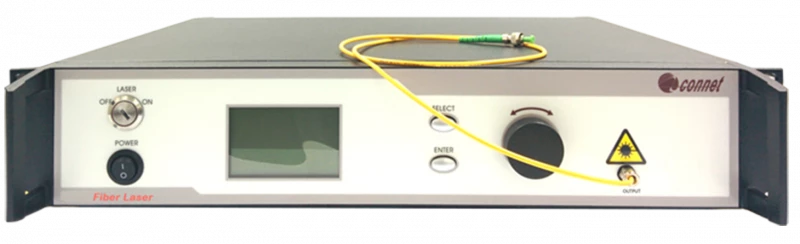

Thumbnail of CoNL Series 2.0um Band MHz Narrow Linewidth Fiber Laser photo 1

Description

Connet 2.0um Band MHz Narrow Linewidth CW Fiber Laser adopts MOPA structure design, built-in with MHz level narrow linewidth seed laser such as DFB and DBR, realizes high power output through optimized design of cascaded fiber amplifiers.

Connet has unique suppression technique on fiber nonlinear effects such as stimulated Brillouin scattering (SBS) while ensuring high power output. Connet 2.0um Band MHz Narrow CW Linewidth Fiber Laser adopts integrated desktop design.

The important technical parameters are displayed on the LCD front panel. The output power is adjustable and easy to operate. It is suitable for laboratory applications. OEM modular products can be provided according to actual needs, which is convenient for users' system integration.

CoNL Series 2.0um Band MHz Narrow Linewidth Fiber Laser

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Center Wavelength: 2050 nm
Output Power: 0.1 W
Output Mode: Continuous Wave (CW)
Beam Quality (M^2): 1.05
Spectral Linewidth: Not Specified
Output Power Stability: 0.4% ~ 0.5%
Output Fiber Type: PMF
Output Fiber Length: 0.5 m
Interface: Other / Not-specified
Cooling: Air Cooled
Electrical Requirements: 110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MHz linewidth single frequency output
  • Low relative intensity noise
  • High frequency stability
  • Linear polarized output, high PER
  • Various wavelengths are available

Applications

  • Atomic cooling and trapping
  • Coherent and spectral combination
  • Frequency doubling
  • LIDAR or sensing
  • Test and measurement
  • Other scientific research

Frequently Asked Questions

What is the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The Connet 2.0um Band MHz Narrow Linewidth Fiber Laser is a fiber laser that adopts MOPA structure design and built-in with MHz level narrow linewidth seed laser such as DFB and DBR.
What are the features of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The features of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser include MHz linewidth single frequency output, low relative intensity noise, high frequency stability, linear polarized output, high PER, and various wavelengths are available.
What are the applications of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The applications of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser include atomic cooling and trapping, coherent and spectral combination, frequency doubling, LIDAR or sensing, test and measurement, and other scientific research.
Is the output power of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser adjustable?
Yes, the output power of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser is adjustable and easy to operate.
What is the ordering information for the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The ordering information for the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser includes part number, center wavelength, output power, operating mode, output beam quality, linewidth, SMSR, output polarization, PER, output power stability, wavelength tunable range, output isolation, output power tunable range, operating temperature, storage temperature, power supply, main output fiber, main output fiber length, main output fiber connector, seed laser monitor output fiber, fiber length, fiber connector, and dimension.

Got more questions? Use the inquiry form to ask the supplier directly.
