Description
The CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser by Connet is a high-performance fiber laser designed for applications requiring ultra-narrow linewidth and low noise. With its stable single-frequency, single-polarization output and benchtop all-in-one package,
it provides exceptional performance in various scientific research and industrial applications. The laser operates in the 1.9-2.0um band, delivering up to 5W of output power, with higher power options available upon request.

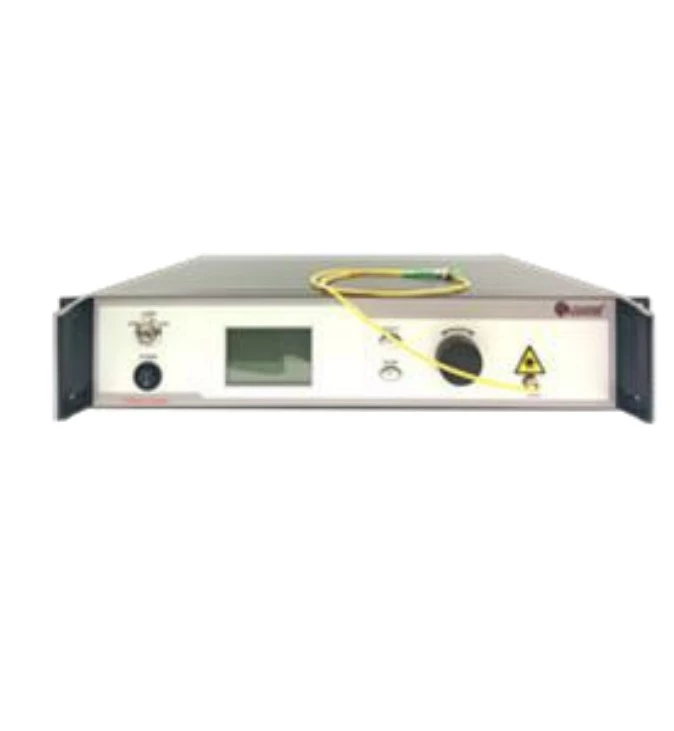

CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser
Specifications
Center Wavelength: | 1900 nm |
---|---|
Output Power: | 5 W |
Output Mode: | Continuous Wave (CW), Single Frequency, Single Longitudinal Mode |
Beam Quality (M^2): | 1.1 |
Spectral Linewidth: | Not Specified |
Output Power Stability: | 0.5% ~ 0.6% |
Output Fiber Type: | Other / Non-specified |
Output Fiber Length: | 0.5 m |
Interface: | Other / Not-specified |
Cooling: | Other |
Electrical Requirements: | 240V - 50Hz |
Linewidth: | <<1 KHz |
Output: | Linear |
Polarization Extinction Ratio (PER): | 23 dB |
Output Isolation: | 50 dB |
Wavelength Thermal Tuning: | 0.8 nm |
Modulation Frequency (linear): | 10 kHz |
Operating Temperature: | +15 to +40 ℃ |
Storage Temperature: | -20 to +60 ℃ |
Optical Connector: | FC/APC |
Weight: | < 5 kg |
Dimension: | 430 x 450 x 105 mm |
Features
- Ultra-narrow linewidth <<1kHz
- Ultra-low phase noise and frequency noise
- Ultra-low relative intensity noise (RIN)
- Stable single frequency, single polarization output
- No mode-hopping
- Benchtop all-in-one package
- PZT option
Applications
- Distributed optical fiber sensing
- Coherent LiDAR
- Fiber optic hydrophone
- Laser spectroscopy
- Coherent communication
- Gas absorption measurement
- Cold atomic physics
- Other scientific research
Frequently Asked Questions
What are the applications of the CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser?
The CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser is suitable for distributed optical fiber sensing, coherent LiDAR, fiber optic hydrophone, laser spectroscopy, coherent communication, gas absorption measurement, cold atomic physics, and other scientific research.
What are the features of the CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser?
The CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser features ultra-narrow linewidth <<1kHz, ultra-low phase noise and frequency noise, ultra-low relative intensity noise (RIN), stable single frequency, single polarization output, no mode-hopping, and benchtop all-in-one package.
What is the CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser?
The CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser is a high-performance fiber laser designed for applications requiring ultra-narrow linewidth and low noise.
What is the ordering information for the CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser?
The ordering information for the CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser includes the part number, center wavelength, output power, fiber type, PZT option, and fast modulation option.
What is the output power of the CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser?
The CoSF-R-TM-B-MP Ultra-narrow Linewidth Single Frequency Fiber Laser operates in the 1.9-2.0um band, delivering up to 5W of output power, with higher power options available upon request.
