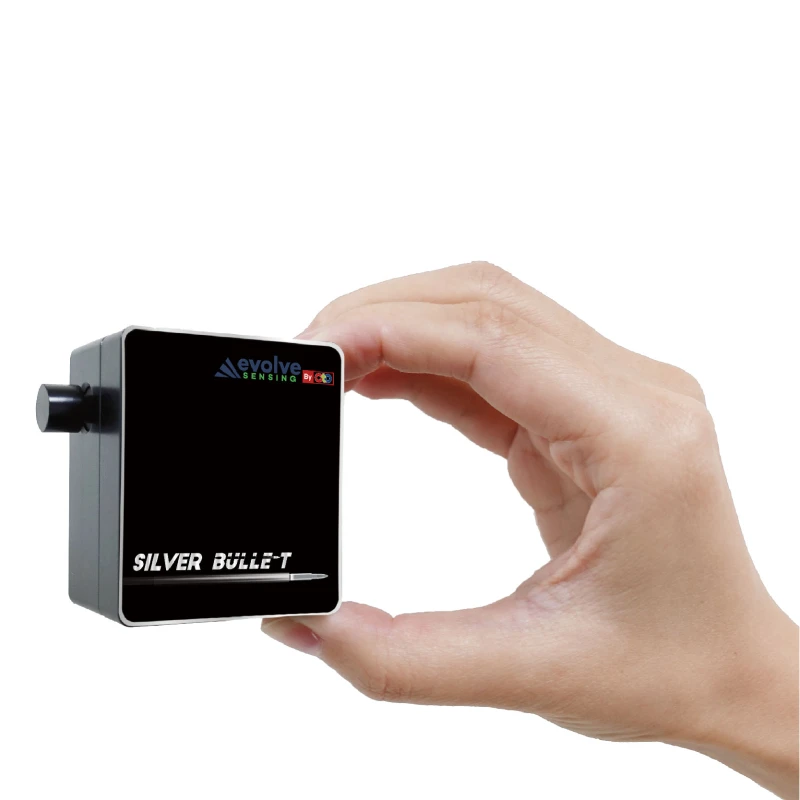

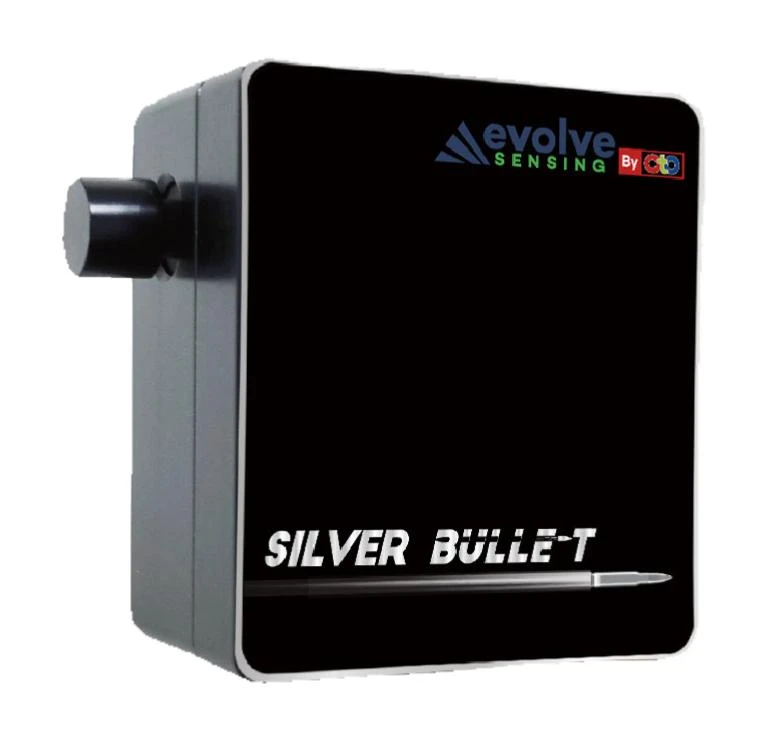

SilverBullet Compact OEM UV-VIS Series Spectrometer

Evolve Sensing

Specifications

Wavelength Range (reflectance): 180 – 1100 nm
Resolution: 3–15 nm (depends on slit & grating)
Dimensions: 40 × 36.3 × 25.1 mm (SB2134) / 49 × 48 × 28.5 mm (SB3130)
Detector Type: 1024-pixel CMOS
Cooling: Passive (no active TEC)
Signal-To-Noise Ratio (SNR): 350
Thermal Stability: <0.04 nm / °C
A/D Resolution: 16-bit
Integration / Scan Time Range: 6 µs – 65 s
Minimum Scan Time: 0.000006 s
Dynamic Range: 5200
Optical Resolution (FWHM): 3–15 nm
Stray Light: < 0.04–0.2 %
Interfaces: USB 2.0, 8-pin I/O (6 GPIO + trigger + lamp)
Connector Type: SMA905 fiber
Power Requirements: +5 V DC @ 500 mA (USB)
Operating Temperature: 0 °C – 50 °C
Storage Temperature: –30 °C – 70 °C
Environmental Limits: 0–90 % RH non-condensing
A/D Converter Type: 16-bit ADC
Document icon Download Data Sheet Download icon

Features

  • High speed 1024-pixel CMOS sensor
  • Customizable modular components (grating, slit)
  • Integration time: 6 μs–65 s
  • 16-bit, 15 MHz A/D converter
  • Micro USB, 8-pin external I/O port (6 digital I/O)
  • Plug-n-play software, SDK available
  • Flash ROM storage (wavelength, linearity, intensity calibration)
  • Integration clock rate details:
    • 6 μs–65 s (10 MHz)
    • 21 μs–65 s (5 MHz)
  • Trigger modes: single, software, multiple capture
  • GPIO functionality: six configurable 3.3 V pins for OEM applications



Applications

  • UV–Vis–NIR spectroscopy and optical analysis
  • High-speed process and quality control monitoring
  • Portable and handheld analytical instruments
  • LED, laser, and light source characterization
  • Thin-film and color measurement
  • Material identification and reflectance analysis
  • Environmental and agricultural sensing
  • Scientific and industrial R&D
  • OEM and embedded system integration
