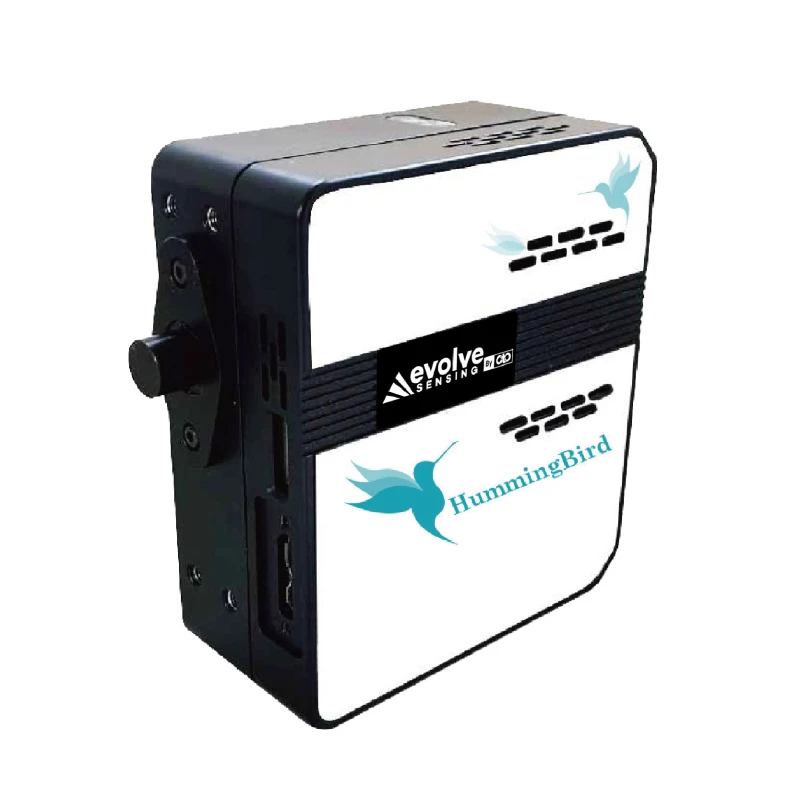

HummingBird Compact OEM UV-VIS Series Spectrometer

Evolve Sensing

Specifications

Wavelength Range (reflectance): 180 – 1100 nm
Resolution: 0.2–10.5 nm (slit/grating dependent)
Dimensions: 83 × 75.5 × 26.75 mm
Detector Type: Fast-exposure CMOS or back-thinned CCD (model dependent)
Cooling: Passive (no active TEC)
Signal-To-Noise Ratio (SNR): 350–500 (model dependent)
Thermal Stability: < 0.04 nm/°C
A/D Resolution: 16-bit
Integration / Scan Time Range: 0.1 ms – 65 s
Minimum Scan Time: 0.0001 s
Dynamic Range: 3600–5400 (sensor dependent)
Optical Resolution (FWHM): 0.2–10.5 nm
Stray Light: < 0.2%
Interfaces: USB 2.0 (480 Mbps), 6× GPIO, trigger, lamp control
Connector Type: SMA905 fiber
Power Requirements: +5 V DC @ 300–500 mA (USB)
Operating Temperature: 0 °C – 50 °C
Storage Temperature: –30 °C – 70 °C
Environmental Limits: 0–90% RH, non‑condensing
A/D Converter Type: 16‑bit ADC
Document icon Download Data Sheet Download icon

Features

  • Compact crossed Czerny–Turner optical design for high sensitivity and low stray light

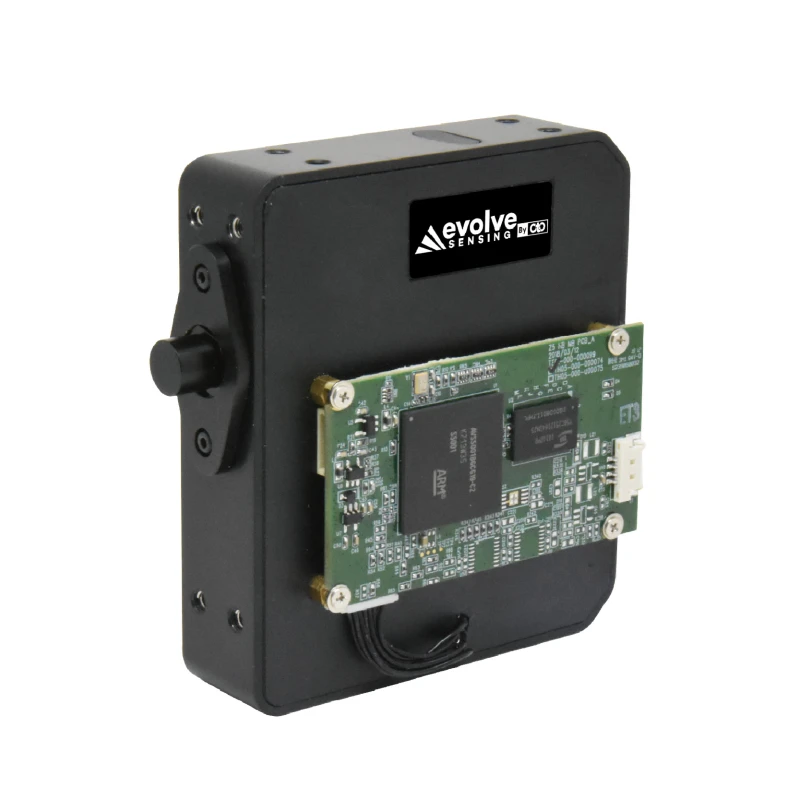

  • Integrated 32-bit RISC microcontroller for fast processing and precise control
  • Wavelength range: 180–1100 nm, optical resolution configurable from 0.2–10.5 nm
  • Modular configuration – customizable gratings, sensors, and slits (10–300 µm)
  • Multiple sensor options: fast-exposure CMOS or back-thinned CCD (NIR enhanced)
  • Integration time: 0.1 ms to 65 s, depending on sensor type
  • USB-powered operation with high-speed data transfer (USB 2.0 @ 480 Mbps)
  • Six programmable I/O pins for external device control and triggering

Applications

  • UV–NIR spectroscopy and optical analysis
  • Process and quality control monitoring
  • Material identification and composition analysis
  • Handheld and portable analytical instruments
  • Laser and LED characterization
  • Thin-film and color measurement
  • Environmental and agricultural sensing
  • Scientific and industrial R&D
  • OEM and embedded system integration
