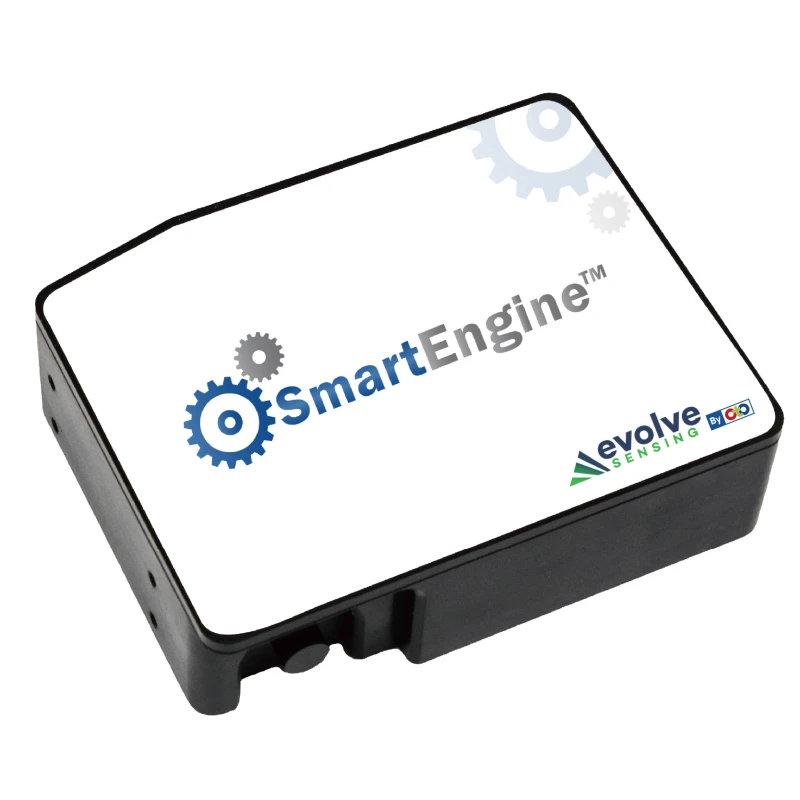

SmartEngine UV-VNIR Series Spectrometer

Name: SmartEngine UV-VNIR Series Spectrometer
Brand: Evolve Sensing
Availability: InStock

Description

The SmartEngine (SE) Series spectrometers deliver high-performance spectral analysis in a compact, rugged Czerny–Turner optical system. Built with high-sensitivity CCD and CMOS linear sensors and controlled by a 32-bit RISC microcontroller, the SE Series provides excellent optical resolution, low noise, and strong resistance to temperature, vibration, and humidity variations. Covering 180–1100 nm with multiple sensor options, the SmartEngine Series offers flexibility for UV, visible, and NIR applications. Powered entirely by USB and featuring programmable I/O ports, it integrates seamlessly into laboratory, industrial, and OEM platforms.

Specifications

Wavelength Range (reflectance):	180 – 1100 nm
Resolution:	0.2 nm
Minimum Scan Time:	0.0001 sec
Resolution:	0.2–10.5 nm (depends on slit & grating)
Dimensions:	110 × 86 × 32.4 mm (Type I) / 110 × 86 × 35.4 mm (Type II)
Detector Type:	CCD (front/back-illuminated, UV/NIR-enhanced) or CMOS
Cooling:	Passive (no active TEC)
Signal-To-Noise Ratio (SNR):	200–500 (model dependent)
Thermal Stability:	<0.04 nm / °C
A/D Resolution:	16-bit
Integration / Scan Time Range:	0.1 ms – 24 s
Minimum Scan Time:	0.0001 s
Dynamic Range:	1700–6000
Optical Resolution (FWHM):	0.2–10.5 nm
Stray Light:	< 0.2–0.45 %
Interfaces:	USB 2.0, external I/O (6 GPIO, trigger, lamp control)
Connector Type:	SMA905 / FC-PC fiber
Power Requirements:	+5 V DC @ 300 mA (USB)
Operating Temperature:	0 °C – 50 °C
Storage Temperature:	–30 °C – 70 °C
Environmental Limits:	0–90 % RH non-condensing
A/D Converter Type:	16-bit ADC
Weight:	0.4 kg

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wavelength coverage: 180–1100 nm
Optical resolution: 0.2–10.5 nm (depends on slit width and grating)
Multiple sensor options: CCD (front-/back-illuminated, UV-enhanced) and CMOS (high-speed, high-resolution)
Integration time: 0.1 ms – 24 s (sensor dependent)
16-bit, 15 MHz A/D converter for precise digital output
USB 2.0 high-speed interface (480 Mbps)
8-pin I/O port with 6 programmable digital lines for external trigger and lamp control
Flash ROM storage for wavelength, linearity, and intensity calibration parameters
Supports multiple trigger modes and ring-buffer operation
Stores up to 4,000 spectra for continuous acquisition
Compact, rugged construction resistant to humidity, shock, and vibration
Boot-up time < 4 s

Applications

UV–Vis–NIR spectroscopy and optical characterization
Semiconductor, display, and LED testing
Thin-film, coating, and color measurement
Biomedical detection and environmental monitoring
Process and quality control monitoring
Agricultural and food analysis
Material identification and composition analysis
OEM and embedded system integration

Name

Work Email

Organization (recommended)

How many do you need?

Your message to supplier

Ships from:

United States

Sold by:

Evolve Sensing ✓ Verified Supplier

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the SmartEngine (SE) Series Spectrometer?

The SmartEngine (SE) Series spectrometers are high-performance spectral analysis devices featuring a compact, rugged Czerny–Turner optical system. They are designed for UV, visible, and NIR applications and are powered by USB.

What wavelength range does the SmartEngine Series cover?

The SmartEngine Series covers a wavelength range of 180–1100 nm.

What sensor options are available for the SmartEngine Series?

The SmartEngine Series offers multiple sensor options, including CCD (front-/back-illuminated, UV-enhanced) and CMOS (high-speed, high-resolution) sensors.

How is the SmartEngine Series powered?

The SmartEngine Series is powered entirely by USB, requiring a +5 V DC power supply with a typical current of 300 mA.

What is the integration time range for the SmartEngine Series?

The integration time for the SmartEngine Series ranges from 0.1 ms to 24 seconds, depending on the sensor used.

What are the environmental operating conditions for the SmartEngine Series?

The SmartEngine Series operates in temperatures ranging from 0 to 50 °C and can be stored in temperatures from -30 to 70 °C.

What is the boot-up time for the SmartEngine Series?

The boot-up time for the SmartEngine Series is less than 4 seconds.
