• High throughput (f/3.1) • Three Raman laser ranges: 532 nm, 660 nm, and 785 nm • Ultra-miniaturization with CCD USB 2.0 electronics • 7000:1 dynamic range • SMA or permanent fi ber-optic connection • VIS- or NIR-optimized back-illuminated CCD • CCT optical layout (Crossed-Czerny-Turner)
  • Excitation Wavelength: 532 nm
  • Range: 210 - 3500 cm^-1
  • Resolution: 12 cm^-1
Data Sheet
• High throughput (f/3.1) • Three Raman laser ranges: 532 nm, 660 nm, and 785 nm • Ultra-miniaturization with CCD USB 2.0 electronics • 7000:1 dynamic range • SMA or permanent fi ber-optic connection • VIS- or NIR-optimized back-illuminated CCD • CCT optical layout (Crossed-Czerny-Turner)
  • Excitation Wavelength: 660 nm
  • Range: 400 - 3150 cm^-1
  • Resolution: 12 cm^-1
Data Sheet
• High throughput (f/3.1) • Three Raman laser ranges: 532 nm, 660 nm, and 785 nm • Ultra-miniaturization with CCD USB 2.0 electronics • 7000:1 dynamic range • SMA or permanent fi ber-optic connection • VIS- or NIR-optimized back-illuminated CCD • CCT optical layout (Crossed-Czerny-Turner)
  • Excitation Wavelength: 785 nm
  • Range: 210 - 2700 cm^-1
  • Resolution: 12 cm^-1
Data Sheet

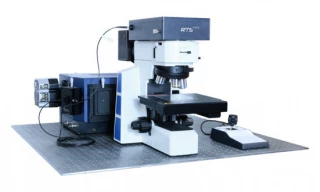

Confocal Raman RTS-mini
Zolix Instruments CO.,LTD
RTS-Mini confocal Raman System is fully suited to micro measurement and supply mapping function; It is very compact & easy to be integrated with most upright microscopes;  If the users have upright microscopes or without microscopes, both we can supply solution; The flexibility ensure range of ...
  • Excitation Wavelength: 532 nm
  • Range: 80 - 9000 cm^-1
  • Resolution: 1.5 cm^-1
  • 3rd Raman Peak Of Monocrystalline Silicon: S/N:>20:1
  • Spectral CCD Format : 2000x256 Back-illuminated Deep-depletion TE cooling to -60℃
Data Sheet
Raman on Mobile, Library in Hands Finder Edge ( FE ) is fast and compact Raman Spectrometer, ensure efficient processing ; It can be used by non-technical users to rapidly identify samples in the lab, warehouse etc. The non-contact analysis can be performed through transparent containers by Raman technology; Strong hardware ...
  • Excitation Wavelength: 785 nm
  • Range: 200 - 2000 cm^-1
  • Resolution: 12 cm^-1
  • Laser Output Power : 450 mW
  • Connectivity: Bluetooth and Wifi
  • ...
Data Sheet

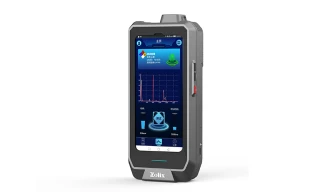

Raman on Mobile, Library in Hands Finder Edge ( FE ) is fast and compact Raman Spectrometer,   ensure efficient processing ; It can be used by non-technical users to rapidly identify samples in the lab, warehouse etc. The non-contact analysis can be performed through transparent containers by Raman technology; Strong ...
  • Excitation Wavelength: 1064 nm
  • Range: 200 - 2500 cm^-1
  • Resolution: 14 cm^-1
  • Connectivity: Bluetooth and Wifi
  • Certification: CE and ROHS
  • ...
Data Sheet
The sensitivity and large dynamic range of the QE Pro combine to make it the highest-performance miniature spectrometer in its class. Absorption, reflectance, fluorescence and Raman measurements all benefit from the superior performance of the QE Pro. For advanced measurements, a 15,000 spectra buffer ensures data ...
  • Excitation Wavelength: 2250 nm
  • Range: 250 - 2250 cm^-1
  • Resolution: -- cm^-1
Data Sheet
At the heart of the Reva educational Raman spectroscopy platform is a robust immersion contact probe utilizing a patented spherical sapphire ball lens interface. Made from hastelloy and sapphire, the BallProbe™ is impervious to all but the harshest chemical environments while allowing reduced sampling variation and ...
  • Excitation Wavelength: 785 nm
  • Range: 300 - 3100 cm^-1
  • Resolution: 8 cm^-1
  • Laser Safety Certification: Class 1
  • Excitation Power (Max.): 450 mW
Data Sheet
Raman Discovery 532 Spectrometer
Headwall Photonics Inc
Headwall\'s Raman spectrometers provide exceptionally high signal-to-noise efficiency and signal throughput.  They are based on a patented aberration-corrected, all-reflective design using Headwall\'s own diffraction gratings. Aberration-corrected diffractive technology enables the use of large fiber bundles within the ...
  • Excitation Wavelength: 532 nm
  • Range: 3650 - 3650 cm^-1
  • Resolution: 10 cm^-1
Data Sheet
Kaiser Raman Hybrid Rxn Analyzer Suite
Kaiser Optical Systems Inc
The Kaiser Raman Hybrid Rxn analyzer is our most advanced and flexible solid phase analyzer. It features hybrid (micron and mm) probe capability, high spectral resolution, transportability, and calibration transfer between analyzers. When combined with Kaiser’s phase-optimized sampling probes, it adeptly performs both traditional ...
  • Excitation Wavelength: 785 nm
  • Range: 175 - 1890 cm^-1
  • Resolution: -- cm^-1
Data Sheet
Kaiser Raman Rxn4 Process Analyzer
Kaiser Optical Systems Inc
The Kaiser Raman Rxn4 analyzer is ideal for the manufacturing or process environment, offering a unique self-monitoring system to ensure the validity of each measurement. When combined with Kaiser’s phase-optimized sampling probes, the Kaiser Raman Rxn4 provides high-resolution performance for in situ, real-time process measurement ...
  • Excitation Wavelength: 532-1000 nm
  • Range: 150 - 4350 cm^-1
  • Resolution: -- cm^-1
Data Sheet
Kaiser Raman Rxn2 Analyzer
Kaiser Optical Systems Inc
Kaiser Raman Rxn2 has a unique analyzer self-monitoring system to ensure the validity of each measurement. Combined with our phase-optimized sampling probes, the Raman Rxn2 offers high resolution performance for real-time, in-process measurement and control.
  • Excitation Wavelength: 532-1000 nm
  • Range: 150 - 4350 cm^-1
  • Resolution: -- cm^-1
Data Sheet
MICROREVEAL RAMAN
Montana Instruments Corp
Many interesting phenomena emerge at cryogenic temperatures, and often, additional or new information about a sample can be revealed with temperature-dependent measurements. This variable temperature Raman microscope system is optimized for high collection efficiency and throughput, offering an automated and controlled environment ...
  • Excitation Wavelength: 532 nm
  • Range: 1 - 1 cm^-1
  • Resolution: 3 cm^-1
Data Sheet

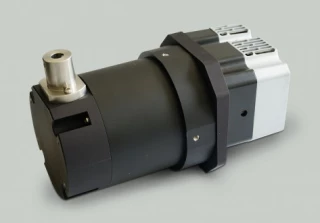

Ibsen’s EAGLE Raman-S are high throughput, robust, and high resolution spectrometers, suited for OEM integration Into industrial grade Raman systems at 785 or 830 nm excitation. The EAGLE Raman-S series comprises the ENS-392 with a -10 Deg. C cooled CCD and the ENS-C316 with a -60 Deg. C cooled camera. ...
  • Excitation Wavelength: 785 nm
  • Range: 200 - 3650 cm^-1
  • Resolution: 4 cm^-1
Data Sheet
Ibsen’s FREEDOM mini Raman spectrometer is an ultra compact, robust, athermal diode array-based spectrometer. It is well suited for OEM integration into industrial grade handheld Raman systems at 532, 785 or 830 nm excitation. The spectrometer offers a high resolution down to 0.6 nm, and allows flexible detector and electronics ...
  • Excitation Wavelength: 785 nm
  • Range: 0 - 3650 cm^-1
  • Resolution: 10 cm^-1
Data Sheet
PROCELLICS RAMAN ANALYZER
RESOLUTION Spectra Systems
ProCellics™ is the first GMP Bioprocess Raman Analyzer for the biopharmaceutical industry fully dedicated to in-line monitoring of the critical parameters and quality attributes in real-time, in order to maintain an optimal development of cultures in bioreactors and to better control downstream processes. ProCellics™ measures among ...
  • Excitation Wavelength: 532 nm
  • Range: 300 - 30000 cm^-1
  • Resolution: -- cm^-1
Data Sheet
PicoRaman Spectrometer
TimeGate Instruments
Fluorescence emission is seen as the main challenge in Raman spectroscopy. The patented Timegated® technology solves this problem. PicoRaman has sub-nanosecond pulsed excitation and a time-resolved single-photon counting detector, enabling effective and real fluorescence rejection making both quantitative and qualitative analyses ...
  • Excitation Wavelength: 0.1 nm
  • Range: -550 - -2500 cm^-1
  • Resolution: 5 cm^-1
Data Sheet

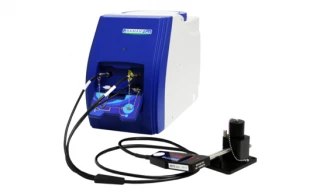

The i-Raman® Plus is part of our award winning line of i-Raman portable Raman spectrometers powered by our innovative smart spectrometer technology. Using a high quantum efficiency CCD array detector with deeper cooling and high dynamic range, this portable Raman spectrometer delivers an improved signal to noise ratio for up ...
  • Excitation Wavelength: 532 nm
  • Range: 150 - 4200 cm^-1
  • Resolution: 3.5 - 4.5 cm^-1
  • Excitation Wavelength: 785 nm
Data Sheet
The i-Raman® EX is part of our award winning line of i-Raman portable Raman spectrometers featuring a 1064 nm version of our patented CleanLaze® excitation laser. Using a high sensitivity InGaAs array detector with deep TE cooling and high dynamic range and a highthroughput spectrograph design, this portable Raman ...
  • Excitation Wavelength: 1064 nm
  • Range: 100 - 2500 cm^-1
  • Resolution: < 10 cm^-1
Data Sheet
The i-Raman Pro family of instruments are fully integrated Raman systems with an embedded tablet computer and fiber optic probe sampling, providing real-time quantitation and identification capabilities in a high sensitivity, high resolution portable Raman. Using a high quantum efficiency CCD array detector with deep cooling ...
  • Excitation Wavelength: 785 nm
  • Range: 65 - 3200 cm^-1
  • Resolution: 4.5 cm^-1
Data Sheet

Did You know?

Raman spectroscopy is a spectroscopic technique based on inelastic scattering of monochromatic light, usually from a laser source. Inelastic scattering means that the frequency of photons in monochromatic light changes upon interaction with a sample. Raman Spectrometer consists of three components – namely an excitation source (generally lasers), sampling apparatus (either a microscope or a fiber optic probe) and a detector. Raman Spectroscopy can be used for qualitative and quantitative purposes since the spectra is very specific, and chemical identification can be performed by using search algorithm, cleaner than mid-infrared spectra. Raman spectroscopy is an invaluable analytical tool for molecular finger printing as well as monitoring changes in molecular bond structure (e.g. state changes and stresses & strains).
