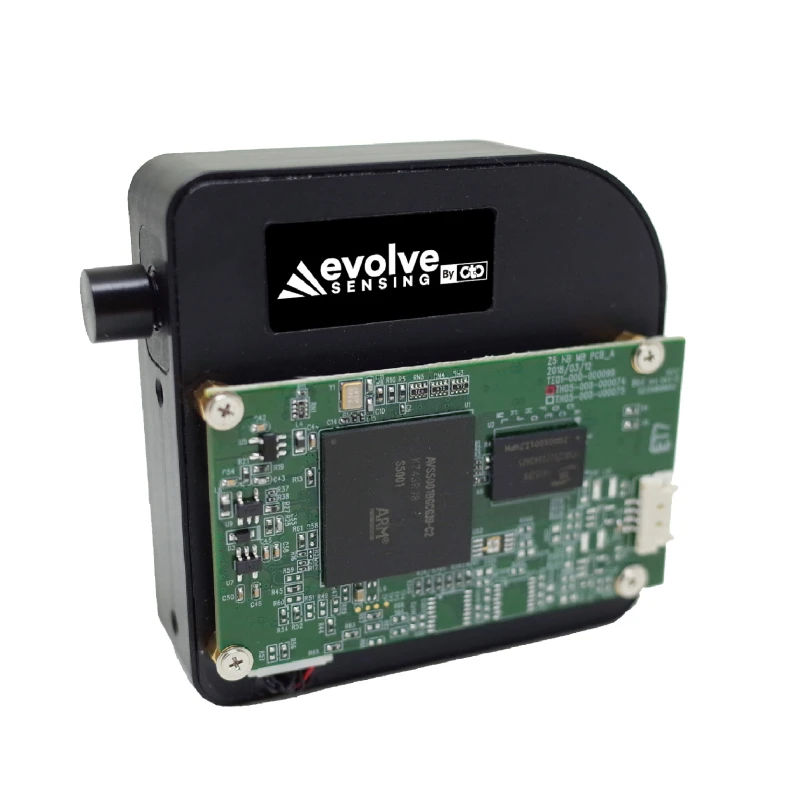

PocketHawk UV-VIS or NIR Series Spectrometer

Name: PocketHawk UV-VIS or NIR Series Spectrometer
Brand: Evolve Sensing
Availability: InStock

Description

The PocketHawk (PH) Series spectrometers combine compact design with high optical performance, utilizing a Crossed Czerny–Turner optical system for excellent resolution, sensitivity, and low stray light. Equipped with a linear CCD or CMOS sensor (UV-Vis) or an InGaAs sensor (NIR) and a 32-bit RISC controller, the PocketHawk is engineered for miniaturization and seamless system integration. The simplified optical engine and external MB-type casing enhance thermal management and stability, while programmable digital I/O and USB connectivity enable easy integration into OEM and laboratory platforms. Powered entirely by USB, the PH Series supports fast spectral acquisition, calibration coefficient storage, and plug-and-play operation for a wide range of UV-Vis and NIR applications.

Specifications

Wavelength Range (reflectance):	180 – 1100 nm
Resolution:	0.3 nm
Minimum Scan Time:	6.0E-6 sec
Wavelength Range (Reflectance):	180–1100 nm (VIS) / 900–1700 nm (NIR)
Resolution:	0.3–1.5 nm
Dimensions:	65 x 65 x 29.8 mm
Detector Type:	CCD, CMOS, or InGaAs (model dependent)
Cooling:	Passive (no active TEC)
Signal-to-Noise Ratio (SNR):	Up to 500:1
Thermal Stability:	<0.04 nm / °C
A/D Resolution:	16-bit
Integration / Scan Time Range:	6 µs – 65 s
Minimum Scan Time:	0.000006 s
Dynamic Range:	Up to 4000:1
Optical Resolution (FWHM):	0.3–1.5 nm
Stray Light:	< 0.1 %
Interfaces:	USB 2.0, GPIO I/O control
Connector Type:	SMA905 / FC-PC fiber
Power Requirements:	+5 V DC @ 350 mA (USB)
Operating Temperature:	0 °C – 50 °C
Storage Temperature:	–30 °C – 70 °C
Environmental Limits:	0–90 % RH non-condensing
A/D Converter Type:	16-bit ADC
Weight:	0.18 kg

Download Data Sheet

Features

Crossed Czerny–Turner optical design with high sensitivity and low stray light
Models available for UV-Vis (CCD/CMOS) and NIR (InGaAs) detection
32-bit RISC controller for fast processing and stable operation
Optical resolution: 2.2–12 nm (Visible), 5–30 nm (NIR)
Integration time: 100 µs – 15 s
Modular configuration with customizable slits and gratings
Up to 4,000 spectra buffering (continuous capture)
16-bit, 15 MHz A/D converter
Flash ROM for wavelength, linearity, and intensity calibration coefficients
6 programmable 3.3 V digital I/O pins and UART TX/RX interface
Micro USB 2.0 @ 480 Mbps and 4-pin extension for OEM control
SMA905 fiber optic interface (Ø3.20 ± 0.01 mm ferrule)
Compact and lightweight, ideal for portable and embedded applications

Applications

Compact UV–Vis–NIR spectroscopy and optical analysis
Thin-film, biomedical, and food analysis
Portable and handheld analytical instruments
Process and quality control monitoring
Material identification and composition analysis
LED, laser, and light source characterization
Environmental and agricultural sensing
OEM and embedded system integration

Name

Work Email

Organization (recommended)

How many do you need?

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Evolve Sensing

On FindLight:

since 2025

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the PocketHawk Miniature Spectrometer?

The PocketHawk Miniature Spectrometer is a compact, high-performance spectrometer that uses a Crossed Czerny–Turner optical system for excellent resolution, sensitivity, and low stray light. It is designed for seamless system integration and is suitable for a wide range of UV-Vis and NIR applications.

What models and wavelength ranges are available for the PocketHawk?

The PocketHawk offers UV-Vis models (PH1014 / PH2014: 330–1050 nm with CCD and PH1034 / PH2034: 200–1050 nm with CMOS) and NIR models (PH2524 / PH2534: 900–1700 nm with InGaAs).

How is the PocketHawk powered and connected?

The PocketHawk is powered entirely by USB and features USB connectivity for easy integration into OEM and laboratory platforms. It supports plug-and-play operation.

What are the main features of the PocketHawk spectrometer?

The main features include a Crossed Czerny–Turner optical design, 32-bit RISC controller, optical resolution of 2.2–12 nm (Visible) and 5–30 nm (NIR), integration time of 100 µs – 15 s, and modular configuration with customizable slits and gratings.

What is the optical resolution and integration time of the PocketHawk?

The optical resolution is 2.2–12 nm for visible light and 5–30 nm for NIR. The integration time is configurable from 100 µs to 15 seconds.

What interfaces and connectivity options does the PocketHawk offer?

The PocketHawk offers a Micro USB 2.0 interface at 480 Mbps, 8-pin GPIO, UART, and a SMA905 fiber optic interface. It also includes 6 programmable 3.3 V digital I/O pins.

What are the environmental operating conditions for the PocketHawk?

The PocketHawk operates in temperatures ranging from 0 to 50 °C, can be stored in temperatures from –30 to 70 °C, and functions in humidity levels from 0 to 90%.
