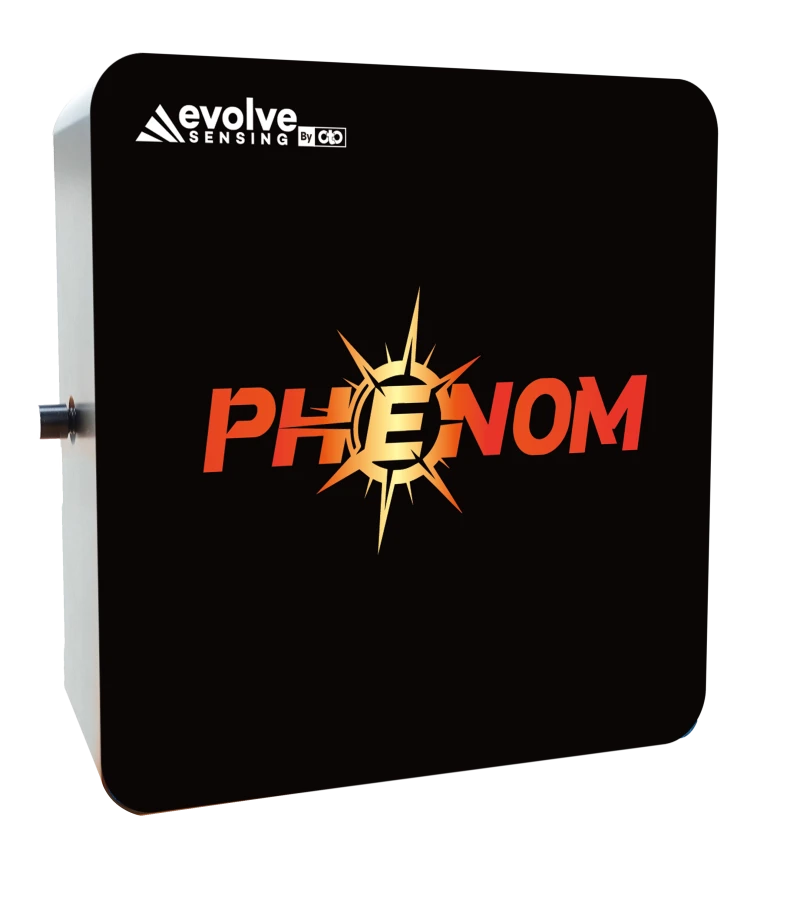

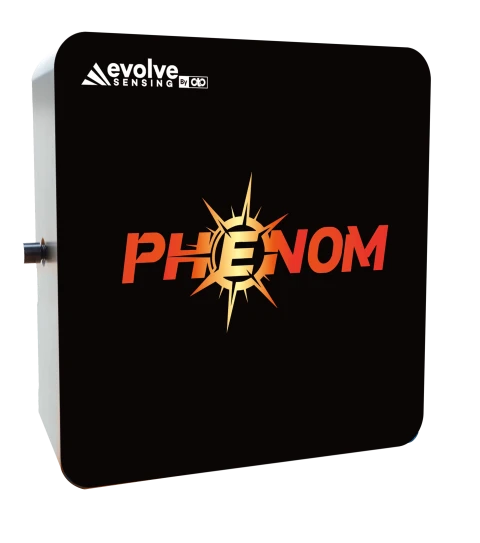

Phenom Vis-NIR High Resolution Series Spectrometer

Name: Phenom Vis-NIR High Resolution Series Spectrometer
Brand: Evolve Sensing
Availability: InStock

Description

The Phenom (PN) and Phenom-NIR (PN-NIR) Series spectrometers are designed for high-resolution, highsensitivity spectral measurements across the visible and near-infrared regions. Featuring a T–R–T (Transmissive-Reflective–Transmissive) Czerny–Turner optical design and precision reflection gratings, the Phenom Series achieves excellent wavelength stability, low stray light, and fast spectral response. Powered by USB and equipped with a 32-bit RISC microcontroller, the Phenom Series ensures efficient data transfer, multi-mode triggering, and stable performance under thermal and vibrational variation. Its modular design supports customizable slit widths, gratings, and sensors for seamless integration in laboratory and OEM systems.

Specifications

Wavelength Range (reflectance):	400 – 1000 nm
Resolution:	0.1 nm
Minimum Scan Time:	0.0001 sec
Wavelength Range (Reflectance):	400–1000 nm (VIS models) / 900–1700 nm (NIR models)
Dimensions:	180 × 175 × 60.7 mm
Detector Type:	CCD (2048 px, PN1050) / CMOS (4096 px, PN1080, PN2080) / InGaAs (512 px, PN2570)
Cooling:	Uncooled (ambient operation, 0–50 °C)
Signal-To-Noise Ratio (SNR):	> 300:1 (single scan @ 10 ms); up to 1500:1 (averaged)
Thermal Stability:	< 0.01 nm / °C
A/D Resolution:	16-bit
Integration / Scan Time Range:	0.1 ms – 65 s (model dependent)
Minimum Scan Time:	0.0001 s
Average Minimum Scan Time:	0.0001 s
Dynamic Range:	Up to 4000 : 1
Optical Resolution (FWHM):	< 0.1 nm (VIS) / < 0.25 nm (NIR) @ 10 µm slit
Stray Light:	< 0.1 % (typical)
Interfaces:	USB 2.0 high-speed data interface
Connector Type:	SMA905 / FC-PC fiber input
Power Requirements:	+5 V DC ± 5%, 300 mA (USB powered)
Operating Temperature:	0 °C – 50 °C
Storage Temperature:	–30 °C – 70 °C
Environmental Limits:	0 – 90 % RH, non-condensing
A/D Converter Type:	16-bit ADC

Download Data Sheet

Features

T–R–T Czerny–Turner optical design with 2nd and 3rd order rejection
Choice of CCD, CMOS, or InGaAs sensors
High dynamic range and low noise performance
Integration time: 0.1 ms to 65 s (model dependent)
USB 2.0 interface (480 Mbps) with plug-and-play SpectraSmart software
Modular configuration for grating, slit, and sensor customization
Onboard Flash ROM storage for wavelength, linearity, and intensity correction
Supports up to 4,000 spectra buffering in ring-buffer mode
External 8-pin I/O port for GPIO, UART, trigger, and light-source control
Compact, vibration-resistant design for stable measurement under thermal drift

Applications

OCT, LIBS, VCSEL, Raman, and thin-film analysis
Semiconductor and MEMS inspection
Precision optical metrology and surface characterization
Raman and fluorescence spectroscopy
Thin-film and ellipsometry measurement
LED, laser, and light source characterization
Scientific, industrial, and OEM system integration

Name

Work Email

Organization (recommended)

How many do you need?

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Evolve Sensing

On FindLight:

since 2025

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the main features of the Phenom Series spectrometers?

The Phenom Series spectrometers feature a T–R–T Czerny–Turner optical design, high dynamic range, low noise performance, USB 2.0 interface, modular configuration, onboard Flash ROM storage, and a compact, vibration-resistant design.

What wavelength ranges do the Phenom Series spectrometers cover?

The PN1050 and PN1080/PN2080 models cover 535–565 nm or 535–650 nm, customizable to 400–1000 nm. The PN2570 (NIR) model covers 1522–1578 nm, customizable to 900–1700 nm.

What types of sensors are available for the Phenom Series spectrometers?

The Phenom Series spectrometers offer a choice of CCD, CMOS, or InGaAs sensors.

How is the Phenom Series powered and what are its power requirements?

The Phenom Series is powered via USB with a supply requirement of +5 VDC, 300 mA, and a voltage range of 4.75–5.25 V.

What integration times are supported by the Phenom Series spectrometers?

The integration time for the Phenom Series spectrometers ranges from 0.1 ms to 65 s, depending on the model.

What customization options are available for the Phenom Series spectrometers?

The Phenom Series spectrometers offer modular configuration options for grating, slit width, and sensor type, allowing for customization to fit specific needs.

What environmental conditions can the Phenom Series spectrometers operate under?

The Phenom Series spectrometers can operate in temperatures ranging from 0–50 °C, with storage temperatures from –30–70 °C, and humidity levels from 0–90% non-condensing.
