Description
The EagleEye (EE) Series spectrometers feature a Thermoelectric Cooled (TEC) back-thinned CCD sensor and a high-performance 32-bit RISC controller, providing superior thermal stability and low noise. Its optimized Czerny–Turner optical design ensures exceptional resolution, wavelength accuracy, and long-term measurement reliability. Built for precision and durability, the EagleEye maintains consistent performance under thermal, vibration, and shock variations, minimizing wavelength shift and resolution drift. Compact and robust, the EE Series is ideal for long-term spectral monitoring, research, and OEM system integration across both UV–Vis and NIR applications.

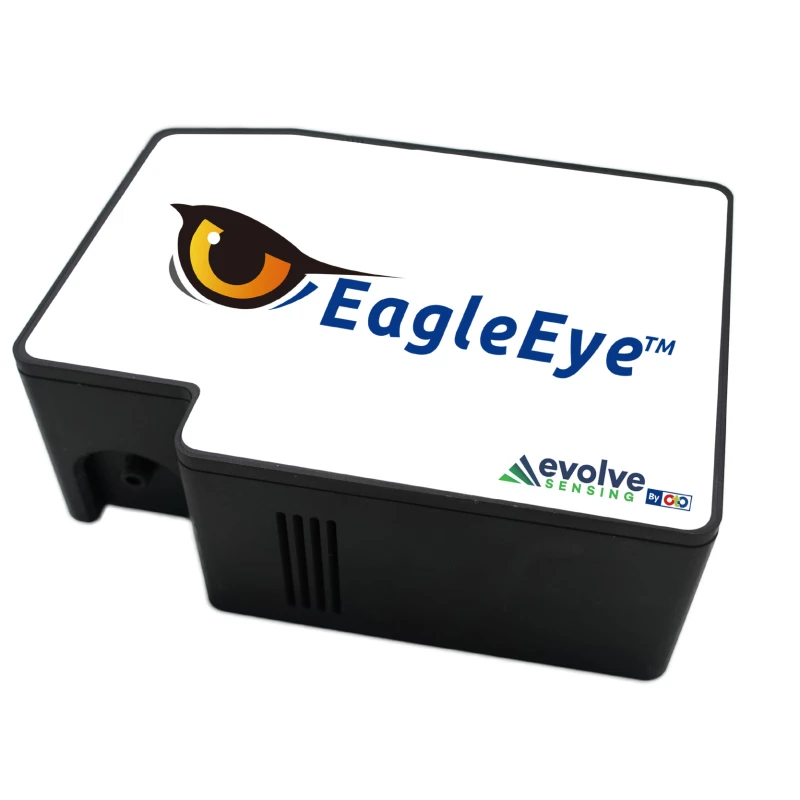

EagleEye UV-VIS Series Spectrometer
Specifications
| Wavelength Range (Reflectance): | 180–1100 nm (model dependent) |
|---|---|
| Resolution: | 0.2–10.5 nm (slit/grating dependent) |
| Dimensions: | 130 × 96 × 58.3 mm |
| Detector Type:: | Back-thinned CCD (Hamamatsu S11850 or S16011), 2048 px |
| Cooling: | Thermoelectric (TEC) |
| Signal-to-Noise Ratio (SNR): | 500 |
| Thermal Stability: | < 0.015–0.04 nm / °C (model dependent) |
| A/D Resolution: | 16-bit |
| Integration / Scan Time Range: | 5 ms – 65 s |
| Minimum Scan Time: | 0.005 s |
| Dynamic Range: | 4000–5000 (model dependent) |
| Optical Resolution (FWHM): | 0.2–10.5 nm |
| Stray Light: | < 0.04–0.45 % (model dependent) |
| Interfaces: | USB 2.0, 8‑pin I/O (6 GPIO, UART TX/RX, ext. trigger) |
| Connector Type: | SMA905 fiber |
| Power Requirements: | USB +5 V @ ~330 mA; TEC +5 V @ ~500 mA (DC jack) |
| Operating Temperature: | 0 °C – 50 °C |
| Storage Temperature: | –30 °C – 70 °C |
| Environmental Limits: | 0–90 % RH non-condensing |
| A/D Converter Type: | 16-bit ADC |
Download Data Sheet
Features
- Czerny–Turner optical design with 2nd & 3rd order rejection for low stray light
- High-sensitivity back-thinned TEC CCD sensor for UV–NIR performance
- Hamamatsu 2048-pixel linear array sensor (EE2113: S16011; EE2063: S11850)
- 32-bit RISC controller for precise and stable operation
- Integration time: 5 ms – 65 s (depending on sensor)
- Optical resolution: 0.2 – 10.5 nm, depending on slit and grating
- USB 2.0 high-speed (480 Mbps) communication
- 8-pin I/O connector with 6 programmable digital I/O lines, UART TX/RX, and external trigger
- Up to 4,000 spectra buffering for continuous acquisition
- Flash ROM storage for wavelength, linearity, and intensity calibration data
- TEC-cooled sensor maintains stable temperature (20–25°C below ambient)
- Supports Matlab™, LabVIEW™, and SpectraSmart software
Applications
- UV–NIR spectroscopy and precision optical analysis
- Raman and fluorescence spectroscopy
- Thin-film and ellipsometry measurement
- LED, laser, and light source characterization
- Scientific and industrial sensing
- Process and quality control monitoring
- Environmental and agricultural analysis
- Material identification and composition analysis
- OEM and embedded system integration
