Description
The Alpha (AL) Series spectrometers are designed for ultra-high-resolution OCT applications, delivering exceptional wavelength stability and sensitivity across the 820–860 nm region. Built around a fully transmissive grating and a proprietary lens design with patented alignment, the Alpha Series achieves 0.02 nm spectral resolution – ideal for eye, skin, biomedical, and metal-welding OCT systems. Using high-speed e2V Octoplus CMOS line-scan cameras operating up to 250 kHz, the Alpha provides rapid data acquisition, precise depth imaging, and stable long-term performance. With USB 3.0 or CameraLink interfaces, single-mode fiber input, and rugged mechanical construction, the Alpha Series supports both research-grade and OEM integration.

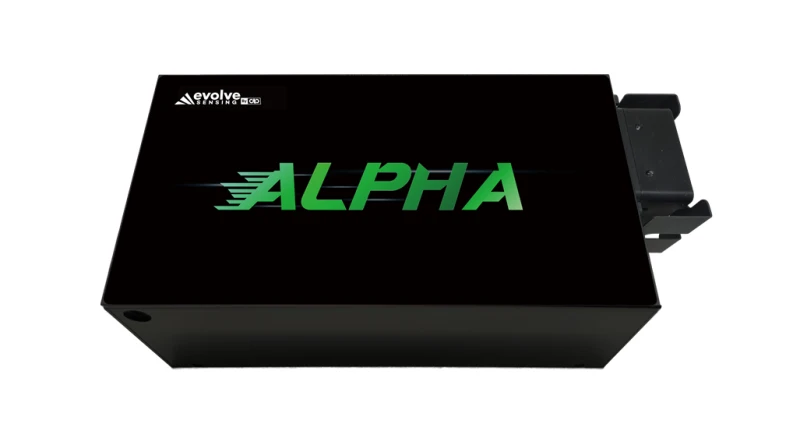

Alpha Ultra-High-Resolution OCT Series Spectrometer
Specifications
| Wavelength Range (reflectance): | 820 – 860 nm |
|---|---|
| Resolution: | 0.2 nm |
| Dimensions: | 267 × 135 × 79.8 mm (spectrometer only) |
| Detector Type: | CMOS line-scan camera (model dependent) |
| Cooling: | Uncooled (passive operation) |
| Interfaces: | USB 3.0 or CameraLink (model dependent) |
| Connector Type: | Single-mode fiber input (FC/PC or FC/APC) |
| A/D Converter Type: | 16-bit ADC |
| Weight (with Camera): | 2.3 kg |
| Operating Temperature: | 0 °C – 50 °C |
| Storage Temperature: | –30 °C – 70 °C |
| Environmental Limits: | 0 – 90 %, non-condensing |
Download Data Sheet
Features
- Ultra-high spectral resolution: 0.02 nm
- Fully transmissive grating with proprietary optical lens design
- Patented alignment mechanism for integrated system stability
- High-speed camera options: 20 kHz, 80 kHz, 130 kHz, 250 kHz
- Imaging depth: 8 mm
- Input fiber: 5 µm single-mode fiber (FC/PC or FC/APC)
- Camera interface options: USB 3.0 or CameraLink
- Rugged mechanical package: ceramic or organic camera housing
Applications
- OCT for eye imaging
- OCT for skin imaging
- Biomedical OCT systems
- Metal-welding OCT systems
- Research-grade OCT platforms
- OEM and embedded OCT system integration
Frequently Asked Questions
What is the spectral resolution of the Alpha Series spectrometers?
What applications are the Alpha Series spectrometers optimized for?
What are the available camera speed options for the Alpha Series?
What is the imaging depth capability of the Alpha Series spectrometers?
What are the interface options available for connecting the Alpha Series spectrometers?
What is the operating temperature range for the Alpha Series spectrometers?
What is the weight and dimensions of the Alpha Series spectrometers?
