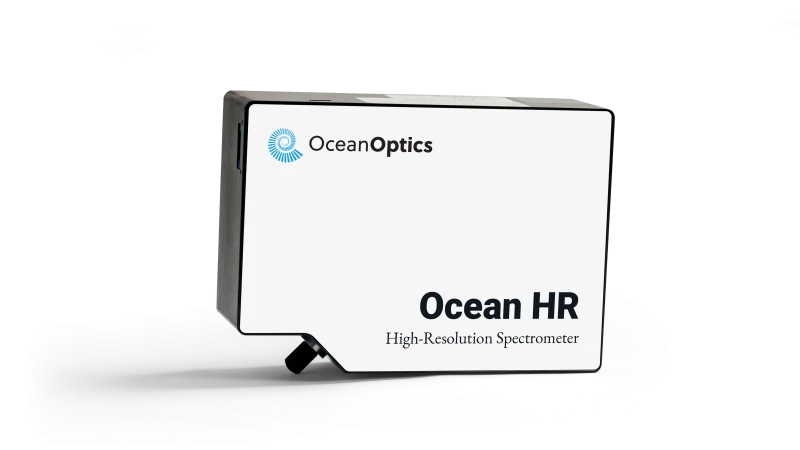

Ocean HR2 Spectrometer: Rapid, Stable, High-Resolution Spectral Performance
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Description
The HR2 Spectrometer from the Ocean HR Series is designed to deliver exceptional performance in a variety of demanding environments. With its rapid acquisition speed and outstanding thermal stability, the HR2 is ideal for applications ranging from plasma monitoring to pharmaceuticals analysis. Its compact and robust design ensures that it can withstand changing environmental conditions while maintaining reliable spectral performance.
One of the standout features of the HR2 is its ability to achieve integration times as quick as 1 µs, minimizing thermal wavelength drift. This high level of precision is crucial for users who require dependable data, regardless of external temperature fluctuations. The HR2 models cater to a wide range of wavelength requirements, covering approximately 190-1100nm, and offer a selection of slit width sizes to balance throughput and optical resolution effectively.
The HR2 spectrometer is a high-resolution instrument compatible with Ocean Optics light sources, accessories, and software. Its rugged construction and excellent absorbance linearity make it suitable for laboratory use, OEM instrumentation, and process integration. The compact size of the HR2 is particularly advantageous for optical emission spectroscopy applications in semiconductor environments, ensuring precise control of wafer processes. Additionally, the spectrometer's absorbance linearity supports applications such as blood analysis and protein concentration, providing accurate quantification over a broad range of protein concentrations with a single standard curve.
Included with each HR2 spectrometer is the OceanDirect Software Developers Kit, a comprehensive, cross-platform API that enhances the spectrometer's functionality. OceanDirect allows users to optimize performance, access critical data, and utilize the High Speed Averaging Mode, which significantly improves the spectrometer's signal-to-noise ratio. This feature is particularly beneficial for users seeking to maximize the accuracy and reliability of their spectral data.
Ocean HR2 Spectrometer: Rapid, Stable, High-Resolution Spectral Performance
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 190 – 1100 nm |
| Resolution: | 0.14 nm |
| Wavelength Range: | 190-1100nm |
| Optical Resolution (w/25 µm Slit): | 0.14-1.20 nm (FWHM) |
| Integration Time: | 1 µs-2 s |
| Dynamic Range: | 3400:1 (single scan) |
| Signal To Noise Ratio (max. Per Second W/ High Speed Averaging Mode): | 25800:1 |
| Signal To Noise Ratio (single Scan): | 380:1 |
| Thermal Wavelength Drift: | 0.02 nm/°C |
| Interfaces: | USB, RS-232, Ethernet |
| Connector: | USB Type-C, Samtec™ TFM-108-02-L-DH, RJ45 |
| Temperature (storage): | -30 °C to 70 °C |
| Temperature (operation): | 0 °C to 55 °C |
| Dimensions: | 149.0 mm x 106.4 mm x 48.2 mm |
| Weight: | 931 g |
| Absorbance Linearity: | 2 AU |
Features
- Rapid Acquisition Speed: Achieve integration times as fast as 1 µs, making it ideal for fast-paced applications.
- High Thermal Stability: Minimal thermal wavelength drift ensures reliable spectral performance even with changing environmental conditions.
- Wide Wavelength Range: Covers approximately 190-1100 nm, suitable for a variety of applications.
- Customizable Optical Resolution: Choose from different slit width sizes to manage throughput and optical resolution, achieving 0.14-1.20 nm (FWHM) with a 25 µm slit.
- High Dynamic Range: Offers a dynamic range of 3400:1 in a single scan.
- Superior Signal to Noise Ratio: Maximum 25800:1 with High Speed Averaging Mode and 380:1 in a single scan.
- Robust Connectivity Options: Interfaces include USB, RS-232, and Ethernet with connectors such as USB Type-C, Samtec™ TFM-108-02-L-DH, and RJ45.
- Wide Operating Temperature Range: Operates from 0 °C to 55 °C and can be stored between -30 °C to 70 °C.
- Compact and Lightweight Design: Dimensions of 149.0 mm x 106.4 mm x 48.2 mm and weighs 931 g, making it easy to integrate into various setups.
- High Resolution Instrument: Rugged design and excellent absorbance linearity make it suitable for lab use, OEM instrumentation, and process setups.
- Versatile Applications: Ideal for optical emission spectroscopy in semiconductor environments, blood analysis, and protein concentration quantification.
- Comprehensive Software Developers Kit: Includes OceanDirect, a cross-platform SDK with an API for optimizing performance and accessing critical data.
Applications
- Plasma Monitoring: The HR2 spectrometer's rapid acquisition speed and excellent thermal stability make it ideal for monitoring plasma processes.
- Pharmaceuticals Analysis: Its compact design and integration times as fast as 1 µs allow for precise analysis in pharmaceutical applications.
- Optical Emission Spectroscopy: The HR2 is especially useful in semiconductor environments for optical emission spectroscopy, ensuring precise control of wafer processes.
- Blood Analysis: The spectrometer's absorbance linearity (2 AU) enables accurate blood analysis over a broad range of protein concentrations.
- Protein Concentration: The HR2 facilitates quantification of protein concentrations using a single standard curve, thanks to its excellent absorbance linearity.
- OEM Instrumentation: Its rugged design and compatibility with Ocean Optics accessories and software make the HR2 suitable for embedding into OEM instrumentation.
- Process Integration: The HR2 can be integrated into various process setups due to its robust performance and small footprint.
Frequently Asked Questions
The HR2 Spectrometer covers a wavelength range of approximately 190-1100 nm.
The integration time for the HR2 Spectrometer ranges from 1 µs to 2 seconds.
The HR2 Spectrometer supports USB, RS-232, and Ethernet interfaces.
The HR2 Spectrometer ensures thermal stability with a thermal wavelength drift of 0.02 nm/°C.
The HR2 Spectrometer has a signal-to-noise ratio of 25800:1 with High Speed Averaging Mode and 380:1 for a single scan.
The HR2 Spectrometer measures 149.0 mm x 106.4 mm x 48.2 mm and weighs 931 g.
Each HR2 Spectrometer comes with OceanDirect, a cross-platform Software Developers Kit with an Application Programming Interface.
