Description
The Gentec UP19K-15S-H5-D0 laser power detector is a highly efficient thermal detector designed for precise laser power measurements up to 15 W. Engineered with advanced features, this detector ensures accuracy and reliability in power measurement applications.
With a broad spectral range and robust physical characteristics, the UP19K-15S-H5-D0 power detector is an ideal choice for demanding laser systems.

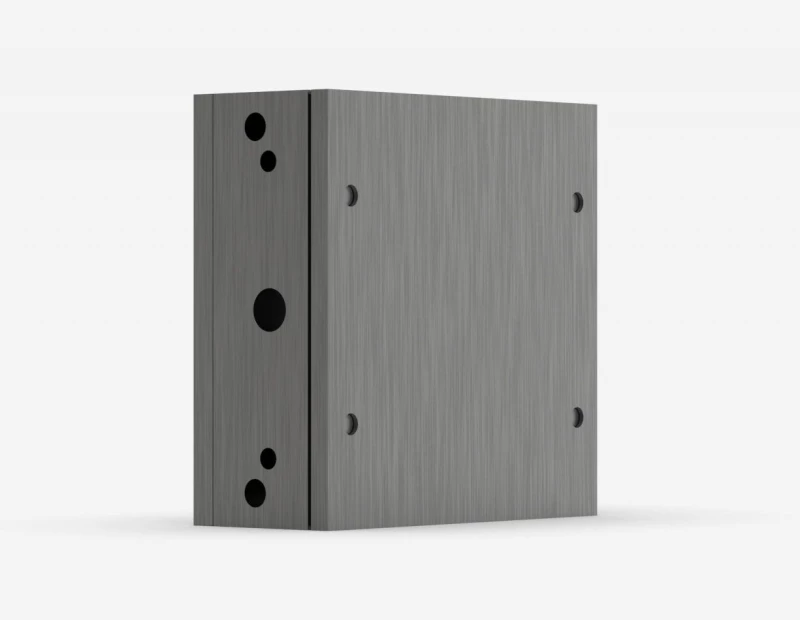

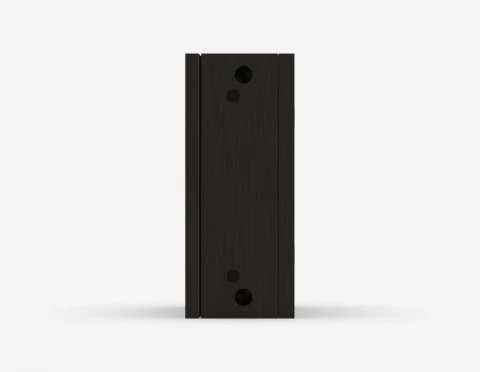

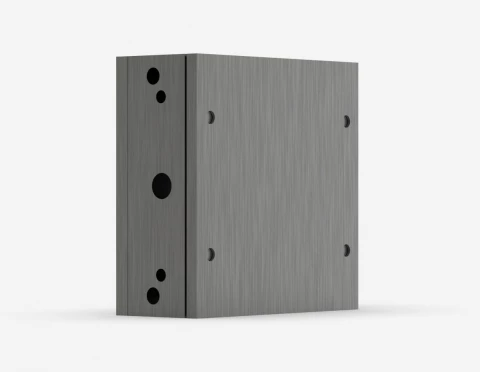

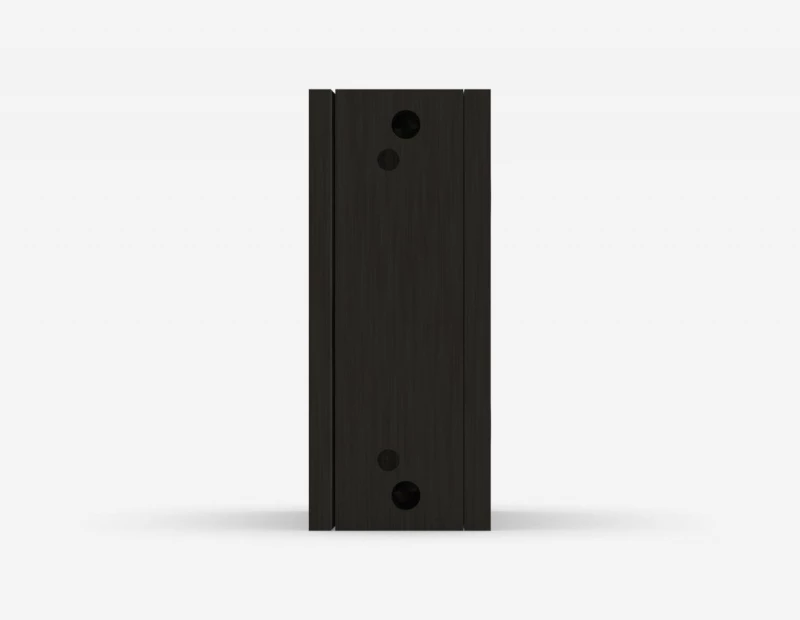

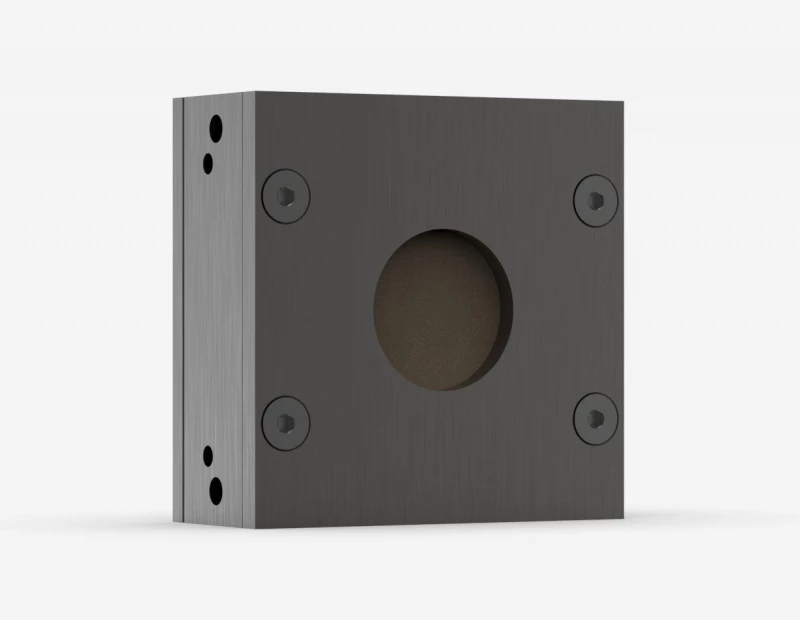

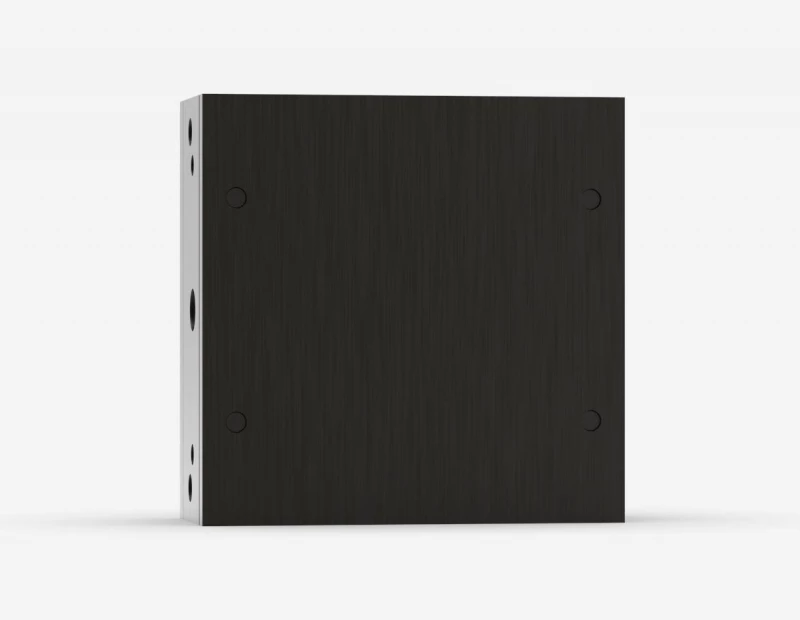

UP19K-15S-H5-D0 Thermal Detector for Laser Power Measurement
Specifications
Detector Type: | Thermal Absorber (thermopile) |
---|---|
Spectral Range: | 0.19 – 20 um |
Size: | 19 mm |
Maximum Power: | 30 W |
Noise Equivalent Power: | 1000 uW |
Max Average Power Density: | 36 kW/cm2 |
Noise Equivalent Power: | 1 mW |
Typical Rise Time: | 0.6 s |
Power Calibration Uncertainty: | ±2.5 % |
Repeatability: | ±0.5 % |
Maximum Measurable Energy: | 15 J |
Noise Equivalent Energy: | 0.02 J |
Minimum Repetition Period: | 4 s |
Maximum Pulse Width: | 88 s |
Energy Calibration Uncertainty: | ±5 % |
Maximum Energy Density: | 1 J/cm² |
Cooling: | Convection |
Absorber: | HS |
Dimensions: | 50H x 50W x 20.6D mm |
Weight: | 0.16 kg |
Features
- Laser Power Measurement: Capable of measuring laser power up to 15 W
- Traceable Calibration: NIST-traceable calibration for reliable and accurate measurements
- Broad Spectral Range: Operates in the spectral range of 0.193 - 20 μm
- Quick Response: Typical rise time of 0.6 seconds for rapid and efficient measurements
- Power Calibration Uncertainty: ±2.5% for precise power measurements.
Repeatability: ±0.5% for consistent and repeatable results
Applications
- Industrial Laser Systems: Suitable for power measurement in various industrial laser applications
- Laboratory Experiments: Ensures validity and accuracy in laboratory experiments
- Quality Assurance: Provides reliable measurements for quality assurance in laser systems
- Research and Development: Ideal for R&D environments requiring accurate laser power data
Frequently Asked Questions
What are the output connection options for the UP laser power detectors?
The UP detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector.
What is the Gentec-EO Ultra Series UP power detector family?
The Gentec-EO Ultra Series UP power detector family includes thirteen series of opto-thermal sensors with different cooling options, with or without amplification.
What is the maximum average power that the UP19K-15S-H5-D0 detector can measure?
The UP19K-15S-H5-D0 can measure a maximum average power of 15 W.
What is the maximum measurable energy for the UP19K-15S-H5-D0?
The maximum measurable energy for the UP19K-15S-H5-D0 is 115 J.
What is the typical rise time for the UP19K-15S-H5-D0 thermal detector?
The typical rise time for the UP19K-15S-H5-D0 is 0.6 sec.
