Description

Our pyroelectric detectors are a class of room temperature thermal detectors that produce a current output that is directly proportional to the rate of change of temperature when exposed to a source of radiation. They are best described by an AC current source, capacitor and resistor. Their current output is governed by the equation I = p(T)·A·dT/dt, where I is current, p(T) is the pyro coefficient, A is the area as defined by the front electrode, and dT/dt is the rate of temperature change of the pyro crystal. The advantages of a pyroelectric detector over other IR detectors are: room temperature operation, broad spectral response, high sensitivity (D*) and fast response (sub-nsec into 50 Ω).

Our passive discrete pyroelectric detectors range from 1 to 9 mm in diameter and are provided in two configurations: high sensitivity or high average power. They present a pyroelectric detector element covered with our metallic coating (MT) and are packaged in a miniature TO-5 or TO-8 can. The diagram shown left identifies the pin-out for both types of detectors. Our organic black coating (BL), increases the optical absorption and helps flatten the spectral response. We also offer a number of permanent IR Windows that can be added to the TO can. These discrete pyro detectors are ideal for pulsed laser applications.

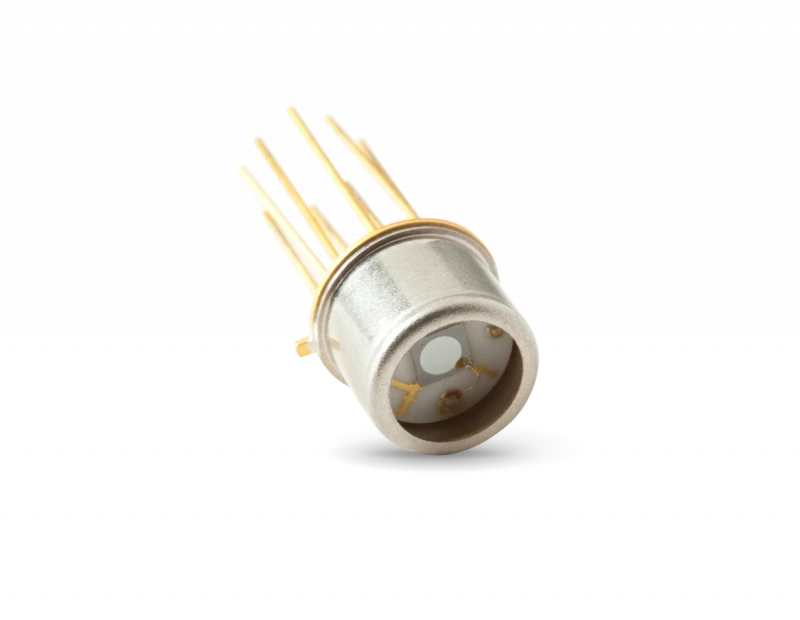

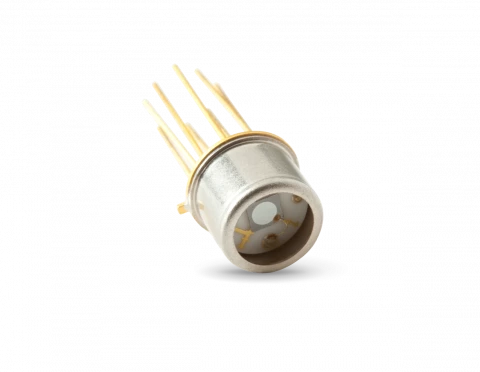

QS2-IL - Hybrid Pyroelectric Sensor with Metallic Coating

Specifications

Detector Type: Pyroelectric
Spectral Range: 0.1 – 1000 um
Size: 2 mm
Maximum Power: 0.05 W
Noise Equivalent Power: 0.002 uW
Max Average Power Density: Not Specified
Current Responsivity: 0.5 μA/W
Thermal Frequency: 16 Hz
Voltage Responsivity: 25 kV/W
Feedback Resistor: 100 GΩ
Supply Voltage: ±5 V
Absorber: MT
Dimensions: 9.1Ø x 6.4D mm
Weight: 0.001 kg
Package: TO5

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Hybrid pyroelectric sensor with metallic coating
  • Low noise level for precise measurements
  • Broad spectral range from 0.1 μm to 1000 μm
  • Current responsivity of 0.5 μA/W
  • Thermal frequency of 1.6 Hz
  • Voltage responsivity of 25 kV/W
  • Feedback resistor of 100 GΩ
  • Compact TO5 package for easy integration
  • Aperture diameter of 2 mm

Applications

  • Laser power measurement and characterization
  • Pulsed laser applications
  • Analytical instrumentation (broadband IR radiometers, optical pyrometers, FTIR spectrometers)
  • Laser measurement products
  • Power monitoring in research and industrial settings

Frequently Asked Questions

What are the advantages of a pyroelectric detector over other IR detectors?
The advantages of a pyroelectric detector over other IR detectors are room temperature operation, broad spectral response, high sensitivity (D*) and fast response (sub-nsec into 50 Ω).
What are the different configurations of the Gentec-EO Discrete Pyroelectric Sensor QS2-IL?
The Gentec-EO Discrete Pyroelectric Sensor QS2-IL is provided in two configurations: high sensitivity or high average power.
What are the measurement capabilities of the Gentec-EO Discrete Pyroelectric Sensor QS2-IL?
The Gentec-EO Discrete Pyroelectric Sensor QS2-IL has a maximum average power of 50 mW, noise equivalent power of 2 nW, spectral range of 0.1 - 1000 μm, and current responsivity of 0.5 μA/W.
What are the physical characteristics of the Gentec-EO Discrete Pyroelectric Sensor QS2-IL?
The Gentec-EO Discrete Pyroelectric Sensor QS2-IL has an aperture diameter of 2 mm, absorber MT, dimensions of 9.1Ø x 6.4D mm, weight of 0.001 kg, and is packaged in a TO5 package.
What is a pyroelectric detector?
A pyroelectric detector is a thermal detector that produces a current output that is directly proportional to the rate of change of temperature when exposed to a source of radiation.
