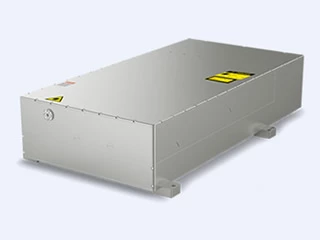

Olive Mid-Power Picosecond Ultrafast Laser Olive-1064-30
Description
Olive Mid-power Picosecond Laser is a product newly launched specific to micro machining marketby North America Ultra-fast R&D center established by Huaray after purchasing Canadian Attodyne. The product is pushed out by combining advanced of the R&D Center and excellent process optimization and batch delivery capability of Huaray. The laser adopts master oscillator power amplifying design with optical-solid mixed medium, and can provide high-energy laser with single pulse energy higher than 200 μJ and pulse width less than 10 picoseconds. The laser supports PoD triggering and can work in the Brust Mode, thereby being an ideal choice for precision laser machining.
Olive Mid-Power Picosecond Ultrafast Laser Olive-1064-30
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Repetition Rate: | 0.001-1000kHz |
| Pulse Energy: | 0.06 mJ |
| Energy Stability (RMS): | 3 % |
| Pulse Duration: | 10000 fs |
| Pointing Stability (RMS): | 50 urad |
| Polarization: | Horizontal |
| Spatial Mode (M^2): | <1.3 |
| Amplification Scheme: | MOPA |
Features
- <10 picosecond pulses
- Long term power stability <3%rms
- High beam quality with M2≤1.3
- Serial Interface
Applications
This series of products is widely used in advanced precision laser machining fields and is a good tool for machining hard brittle materials of glass, sapphire, flat panel display and ceramics; meanwhile it can also be used for precision machining of metal, semiconductors, inorganic thin films and high polymer materials.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
External Vendor
Claim Huaray Precision Laser Co. Ltd. Page to edit and add data
Frequently Asked Questions
The pulse width is less than 10 picoseconds.
The laser has long term power stability of less than 3%rms.
The laser has high beam quality with M2≤1.3.
This laser is suitable for machining hard brittle materials of glass, sapphire, flat panel display and ceramics, as well as metal, semiconductors, inorganic thin films and high polymer materials.
The laser is classified as Class 4.
